Mount a magnetic gauge
A chrome plated stainless steel adapter plate that gives a magnetic gauge a flat steel face to sit against, for the ASWG001, ASWG001TC and ASWL470 clamps.

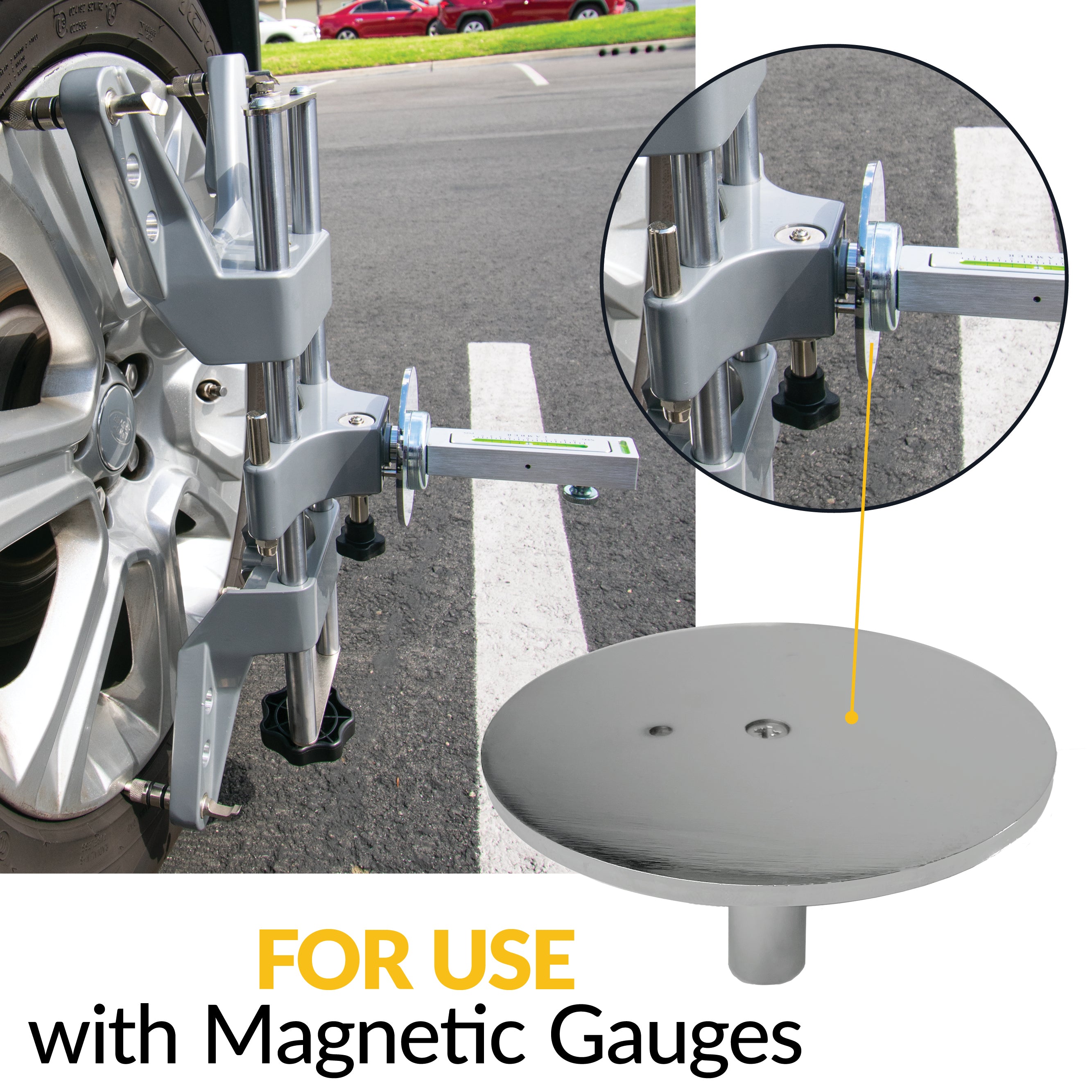

The plate is the mounting surface between the clamp and the gauge. Every AutoSolo camber and caster gauge is a flat magnetic attachment, so it needs a flat steel face to hold to, and this is the part that gives it one.
The plate's shaft drops into the 0.63 in / 1.6 cm socket in the clamp body, where the clamp's lock tightens onto it. A second, smaller pin next to the shaft drops into one of the slots around that socket, so the plate cannot turn once it is locked.
Key features

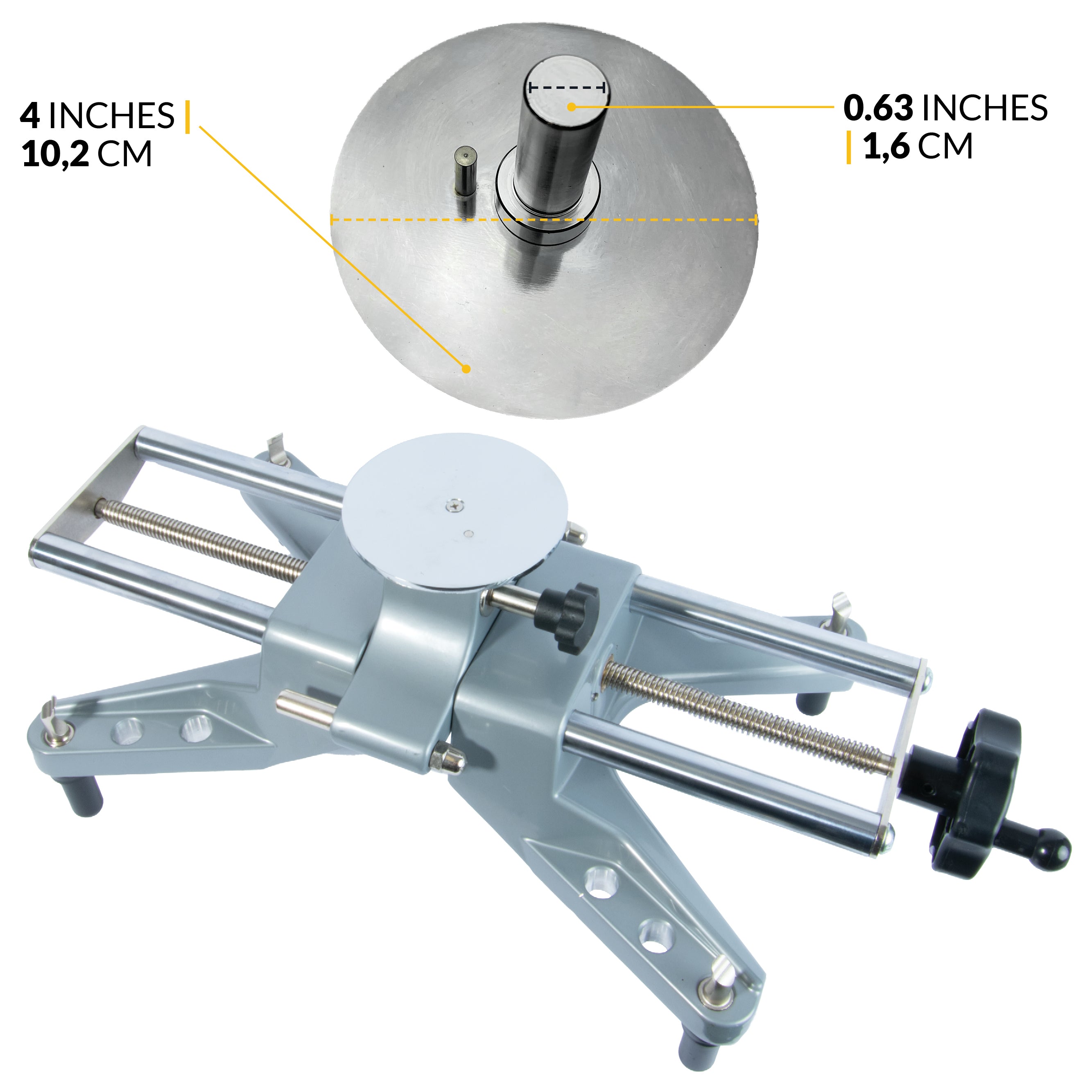

4 in / 10.2 cm magnetic face
A mounting face that every AutoSolo camber and caster gauge holds to by magnet, as does a third-party magnetic gauge.
0.63 in / 1.6 cm mounting shaft
The shaft seats into the socket in the clamp body, where the clamp's lock holds it.
Anti-rotation pin
A second pin beside the shaft drops into one of the clamp's slots so the plate cannot turn.
Fits three clamps

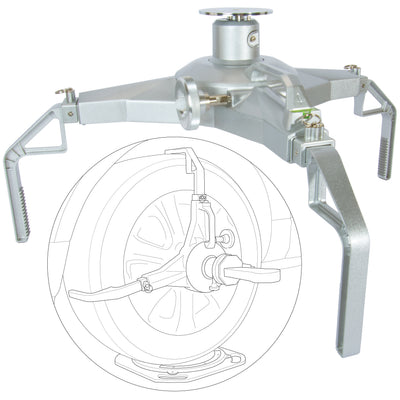

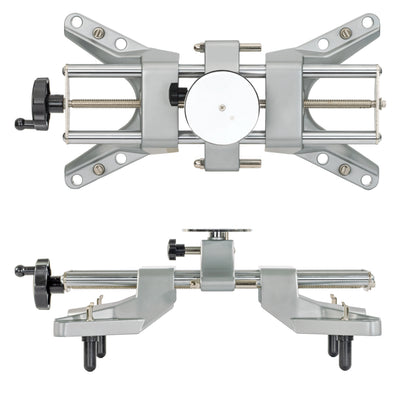

Works with the ASWG001, the ASWG001TC and the ASWL470.
Stainless steel build
Solid stainless steel rather than plated mild steel.
Chrome plated finish
Resists rust and corrosion through repeated handling and storage.
Direct replacement
Made to match the fit and function of the original adapter plate.
