Wheel Alignment Turn Plates with Brass Finish Dial, 4 Ton Capacity, and Bonus Accessories (Pair)

Name: Wheel Alignment Turn Plates with Brass Finish Dial, 4 Ton Capacity, and Bonus Accessories (Pair)
Brand: AutoSolo
SKU: ASWG008
Price: 169.95 USD
Availability: InStock

SKU: ASWG008

$169.95 ~~$189.95~~

Sale 10.53% $20.00 (10.53%)

Shipping calculated at checkout.

Size Pit Rack

Pit Rack
Drive On

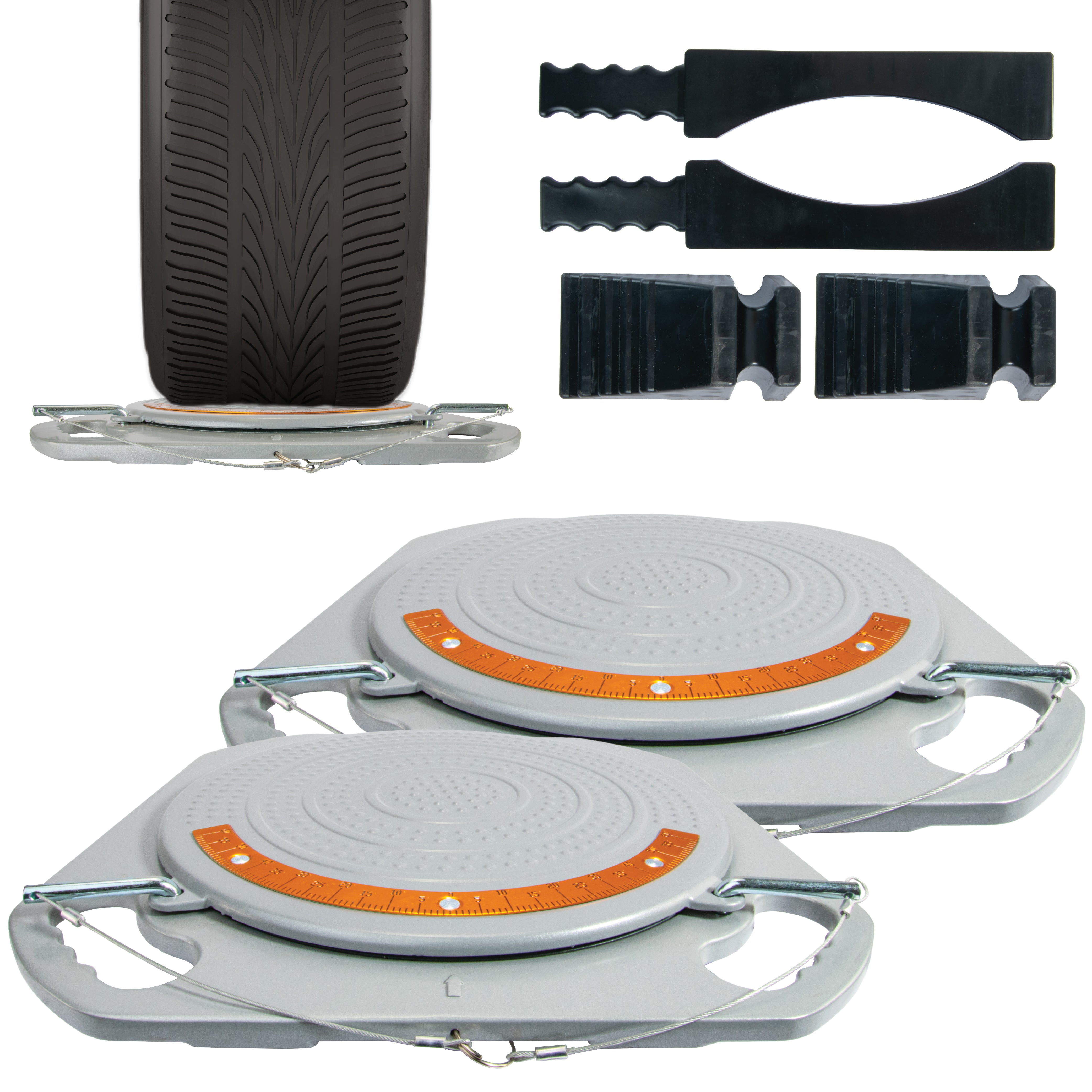

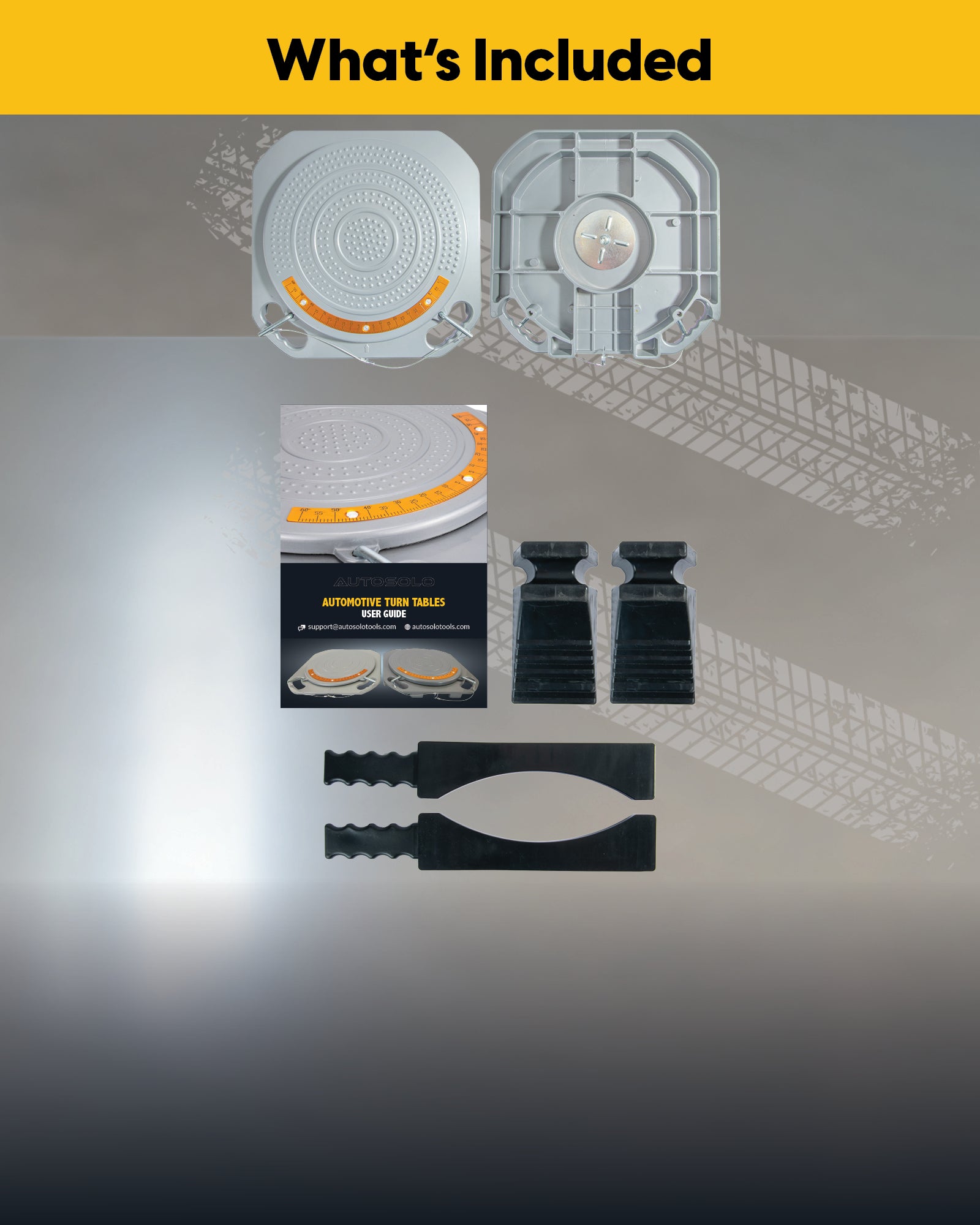

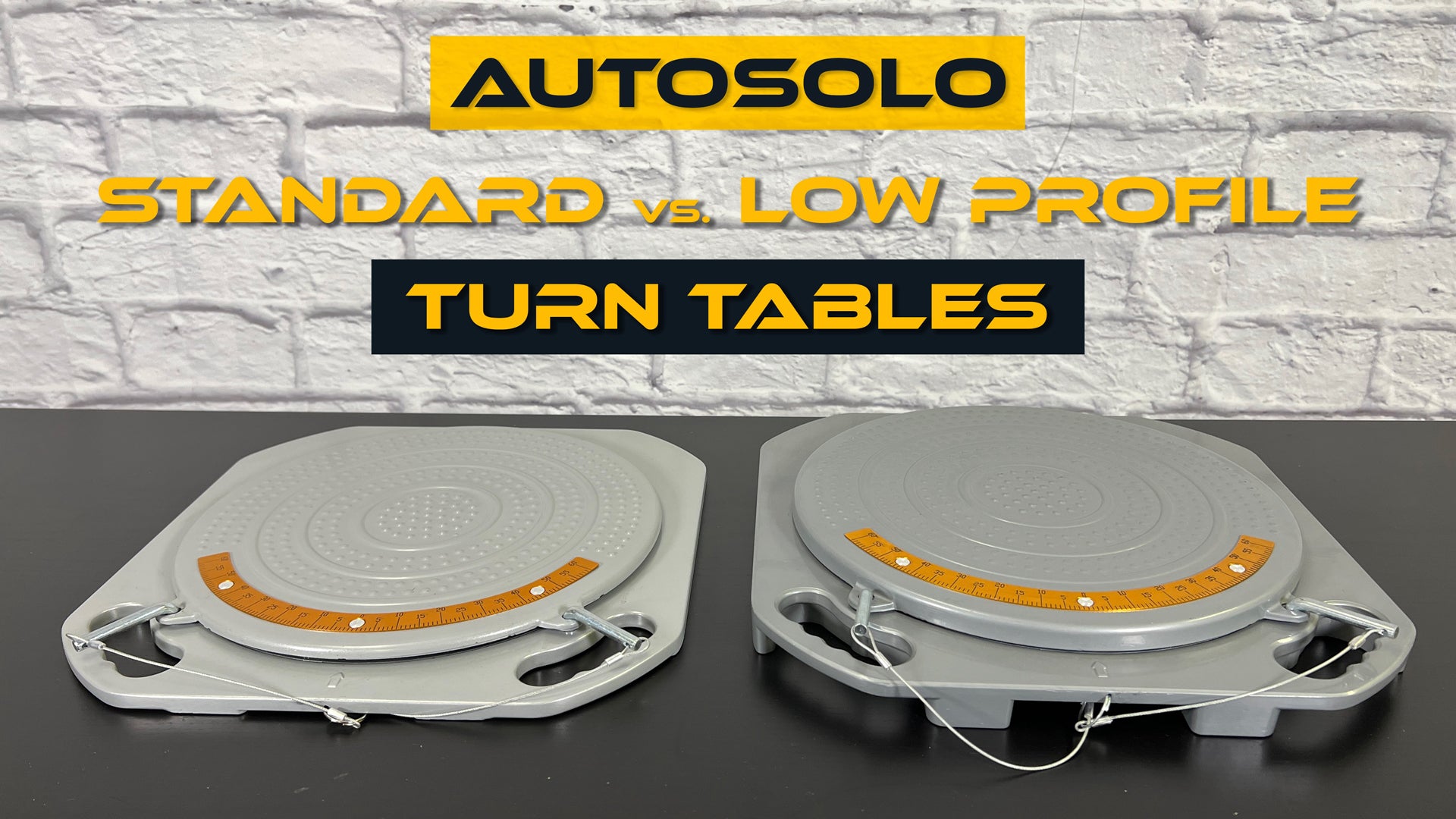

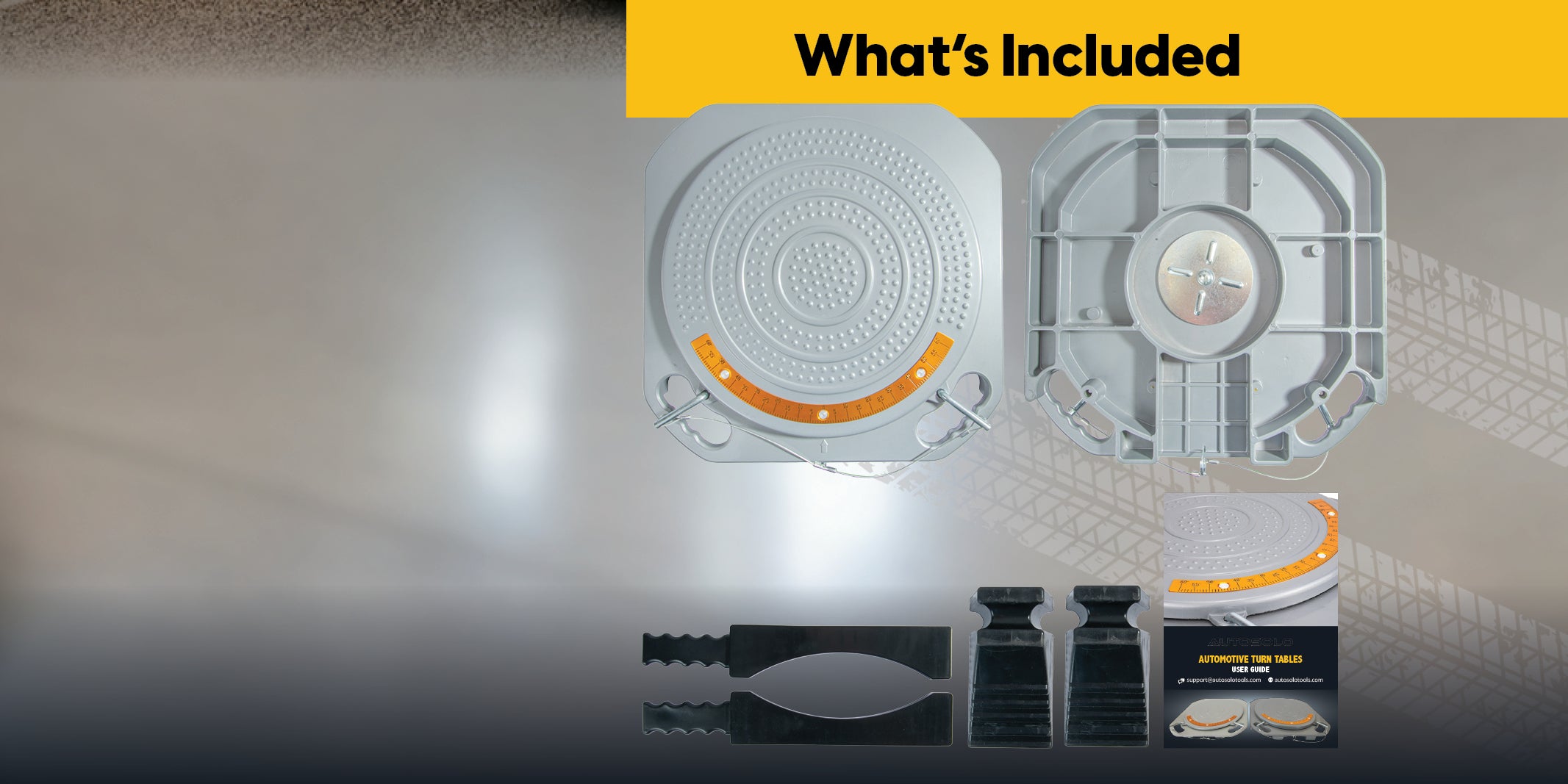

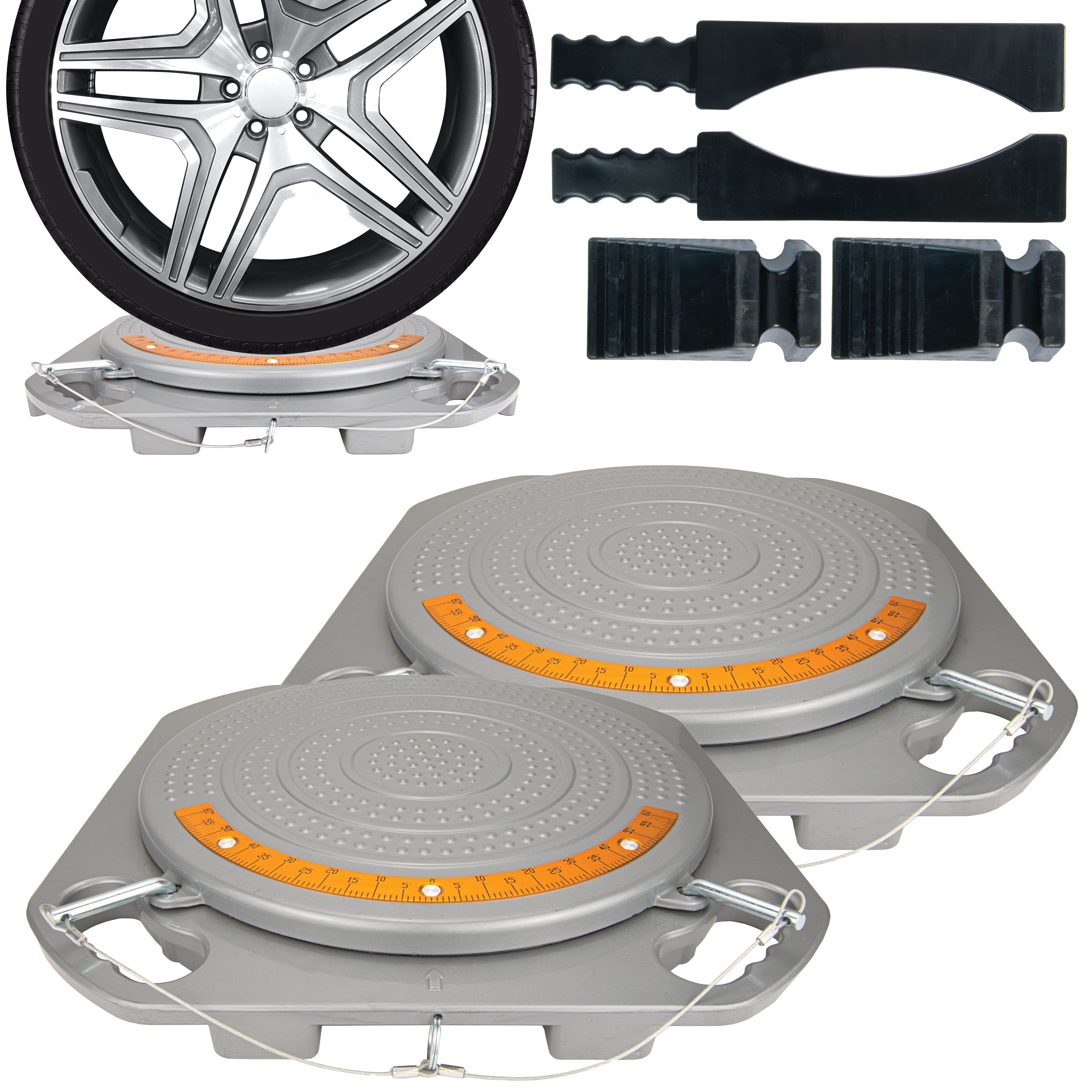

AutoSolo's wheel alignment turn tables now come in two distinct designs: the Standard Design and the new Low Profile Design. Both variants include bonus accessories of two thrust blocks and two transition bridges to make your alignment tasks easier. Each turn table supports up to 2 tons of weight capacity, allowing up to 4 tons of weight when used as a pair.

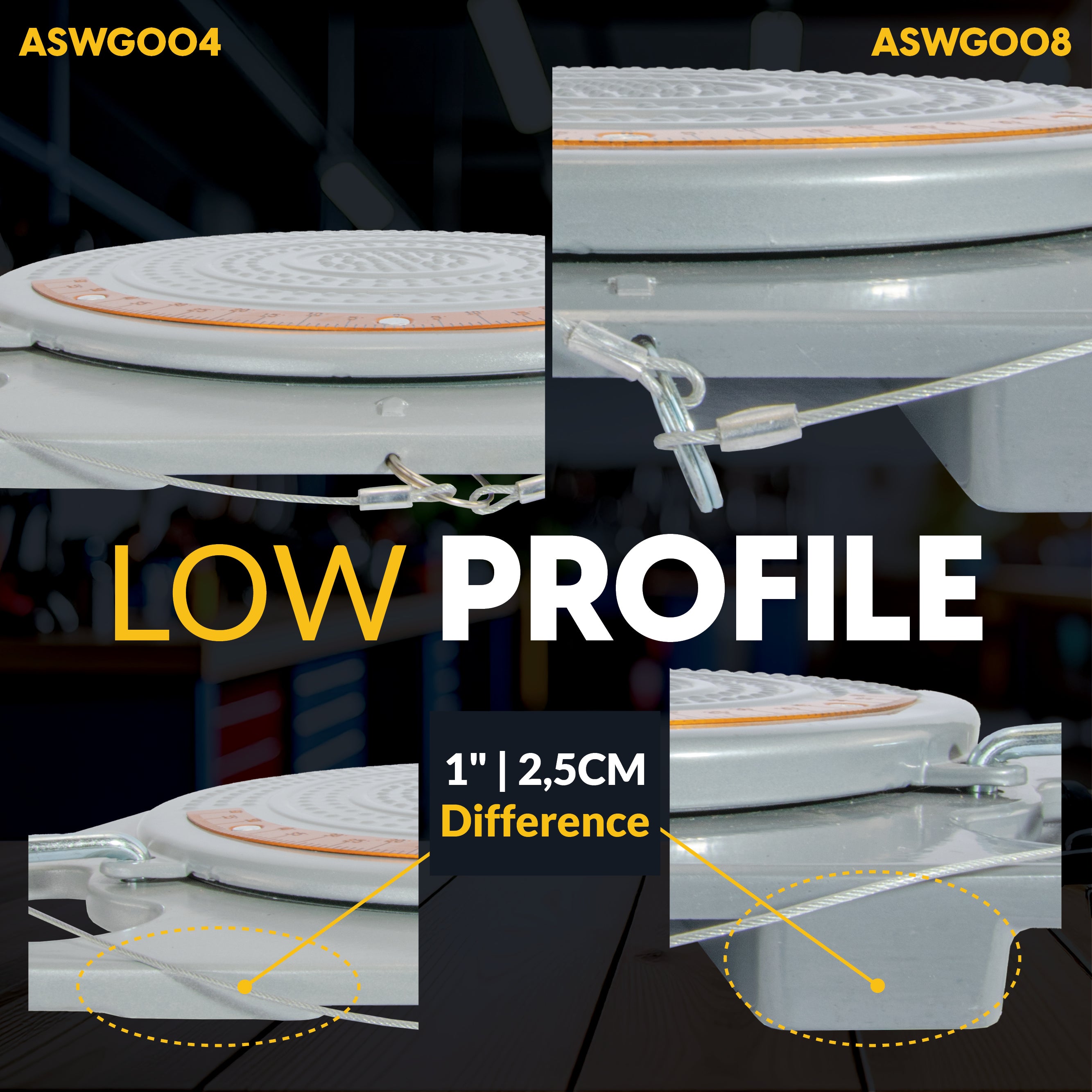

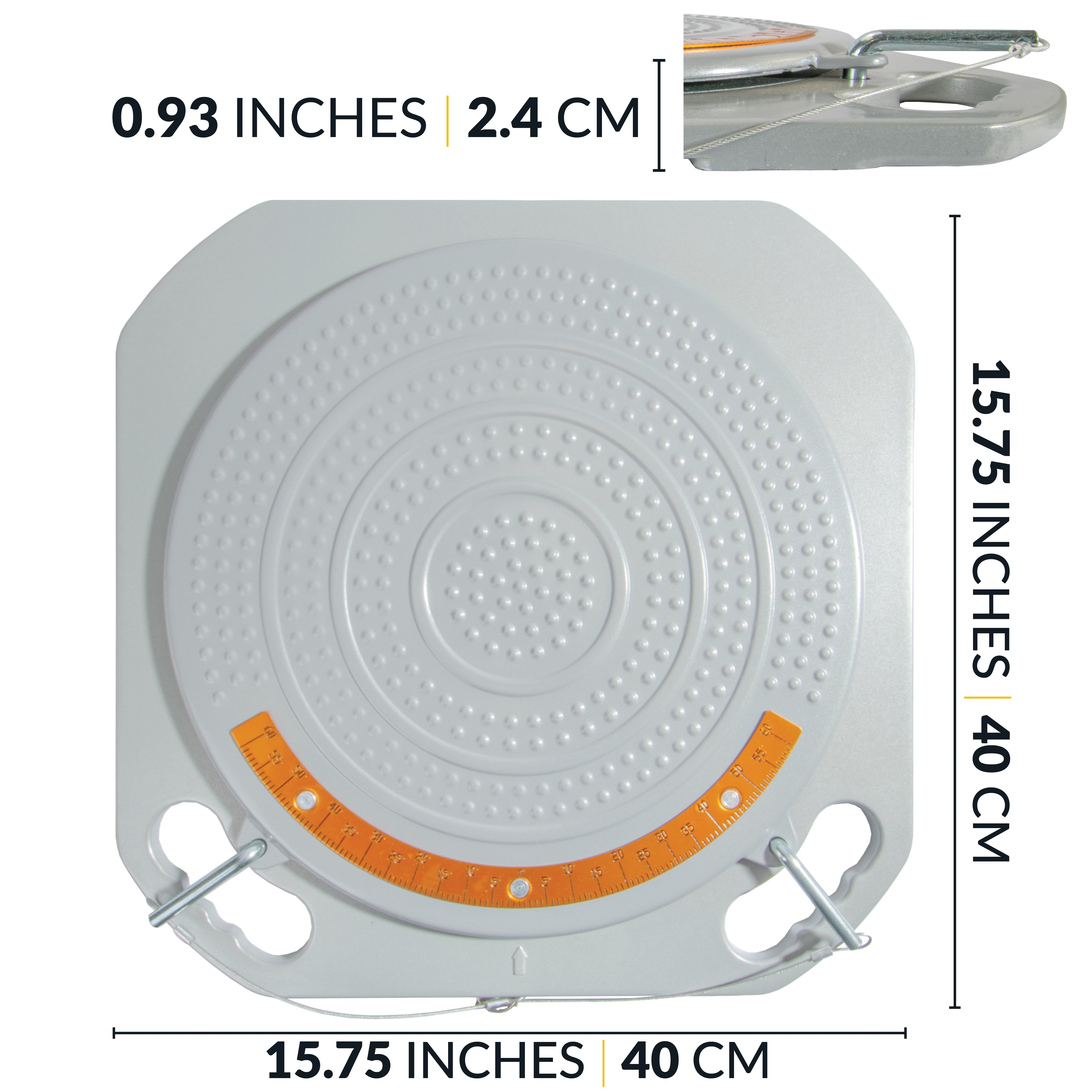

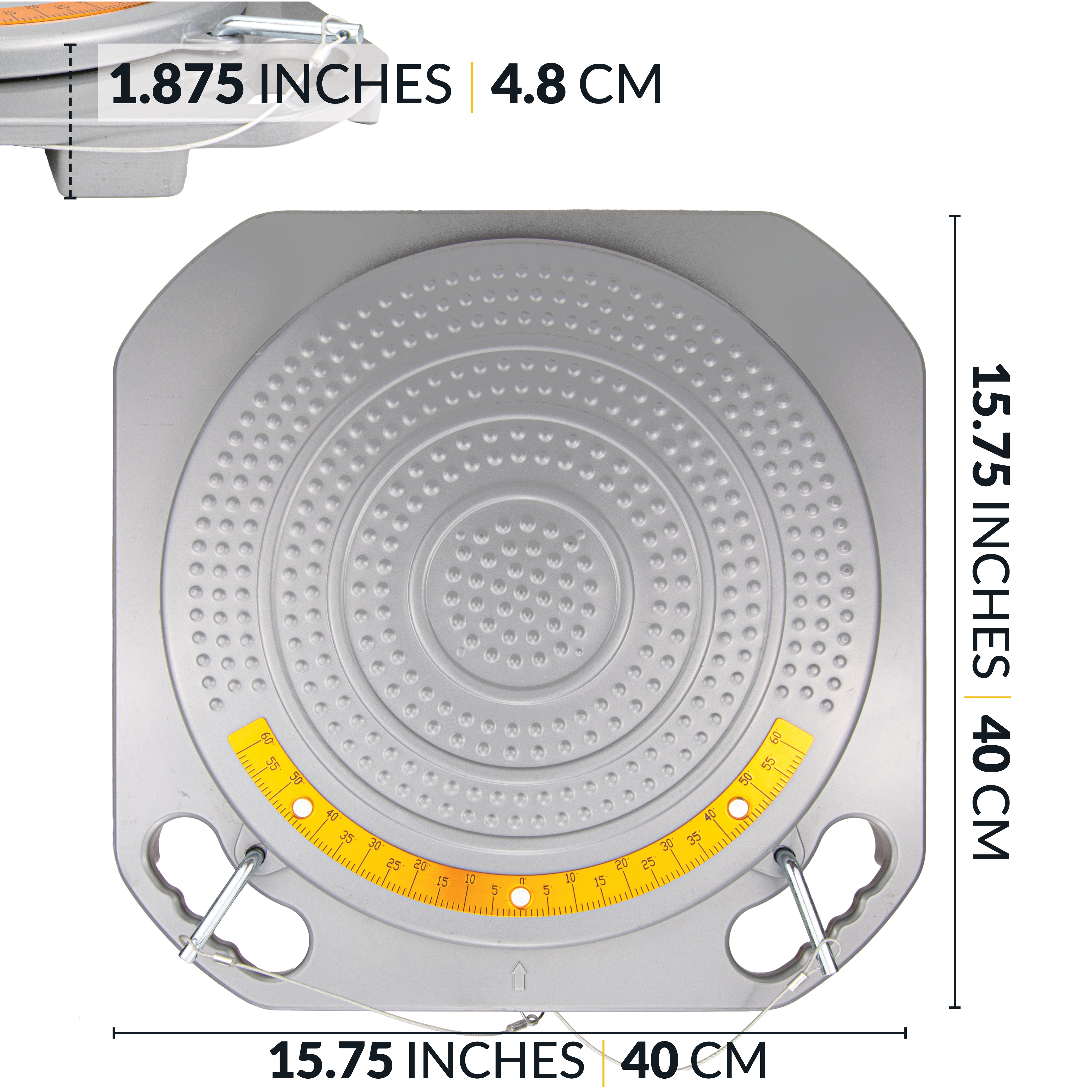

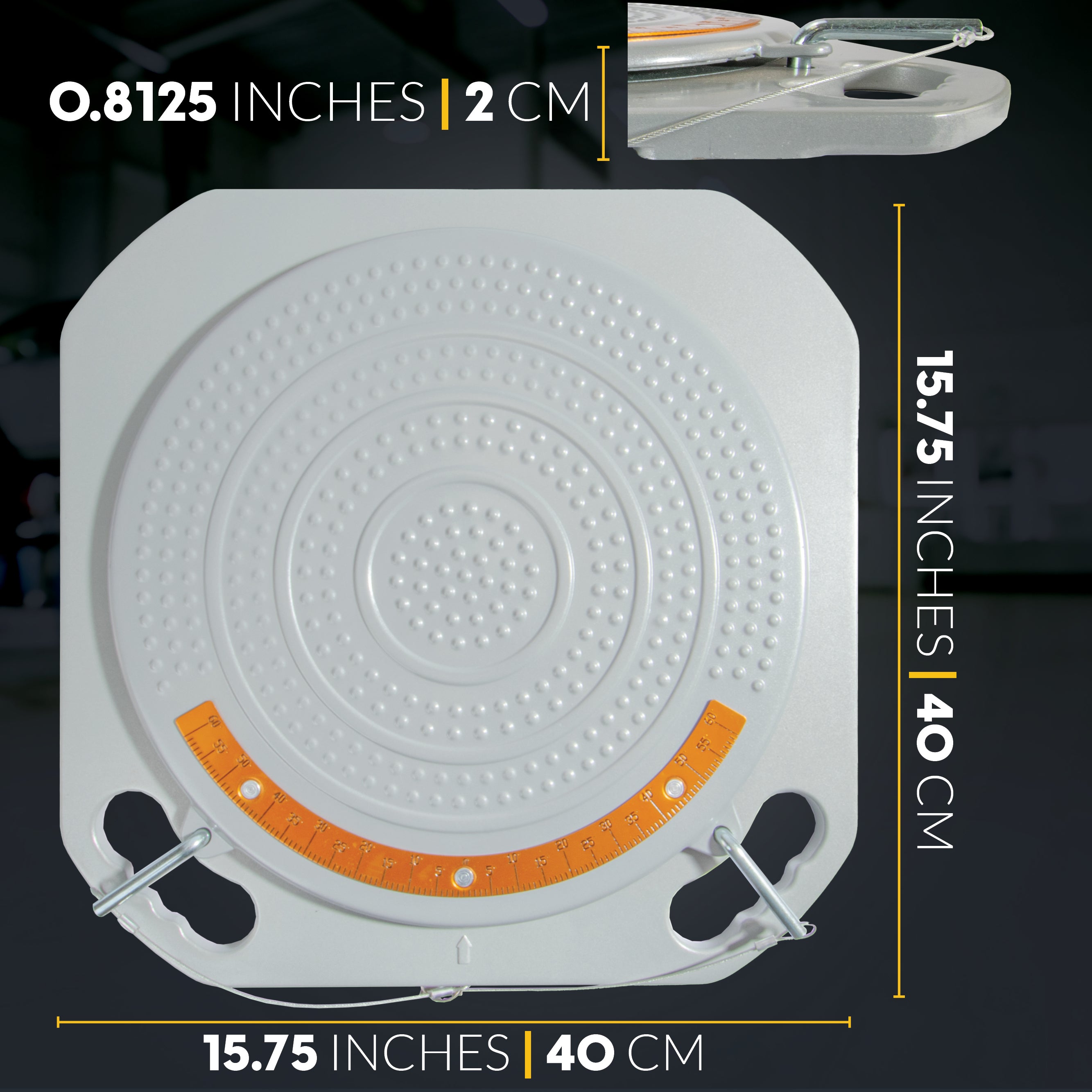

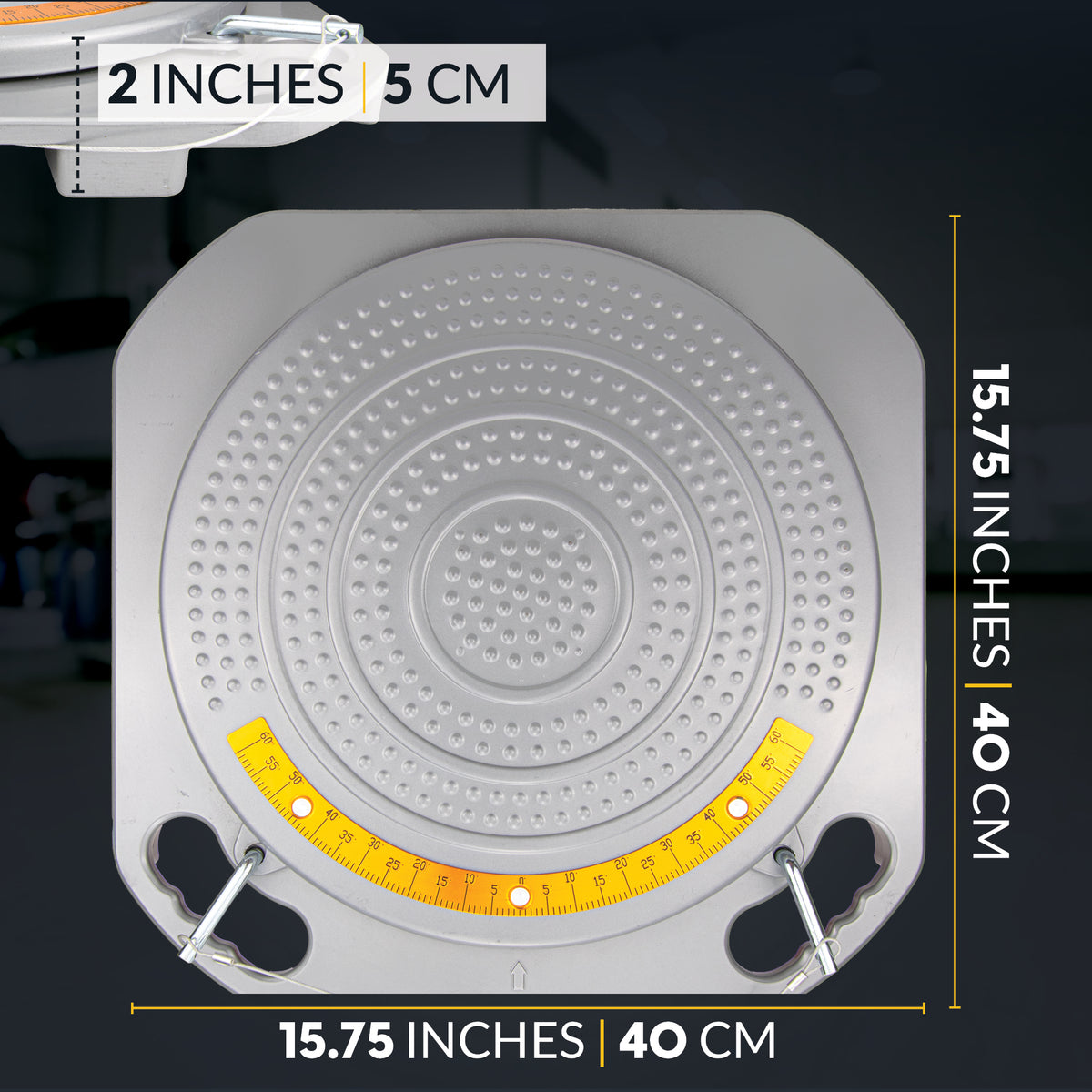

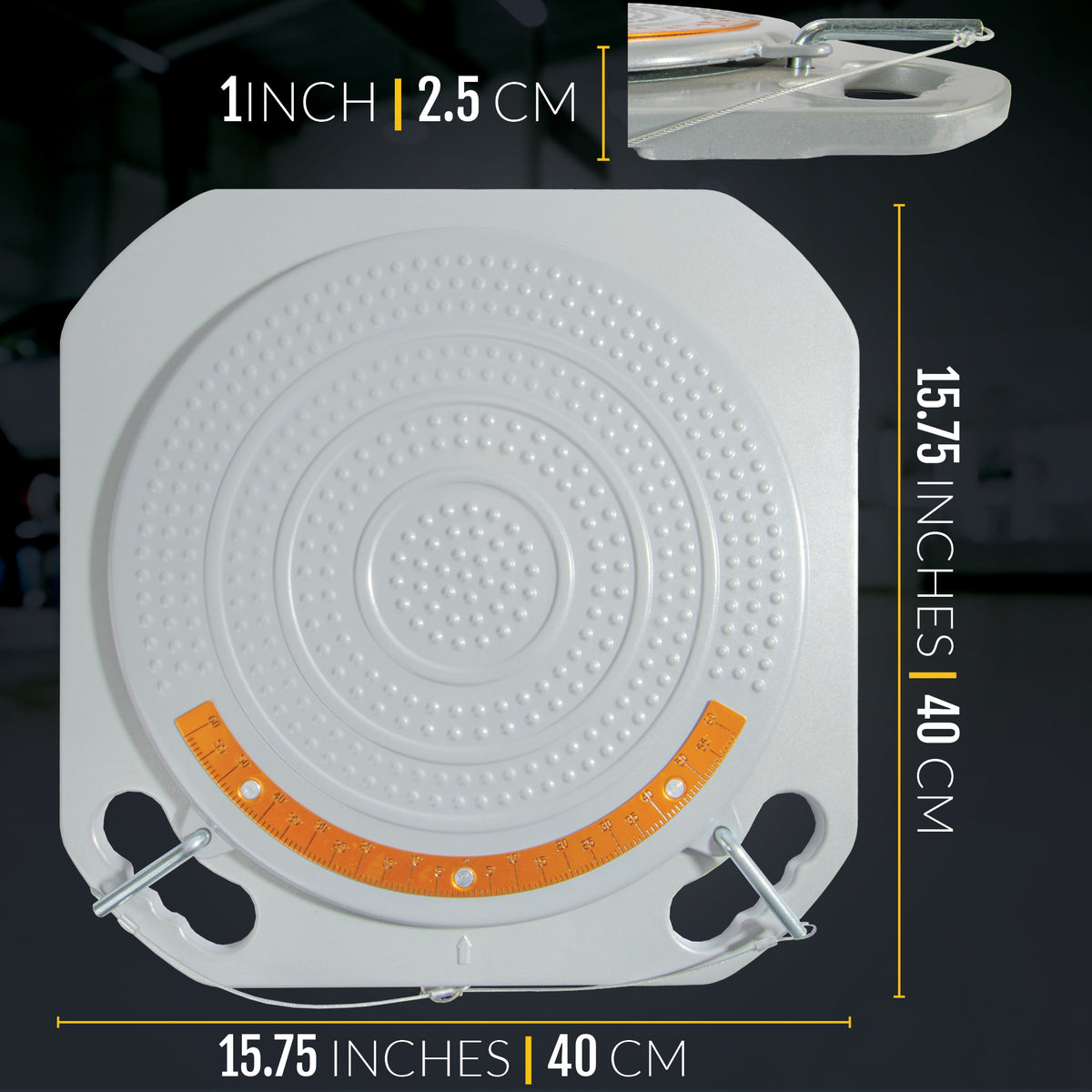

The Standard Design, standing about 2" in height, and the Low Profile Design, with its sleek 1" height, are both lightweight and compact at 15.75" x 15.75" per pair. This makes either pair of turn plates perfect for any garage or auto shop. The beautiful brass finish dial with readings up to 60 degrees left or right from the centerline allows for precise alignment. Additionally, the 13-3/8" top rotating plates allow a 1" slide tolerance from the centerline, perfect for wheels that move when turning.

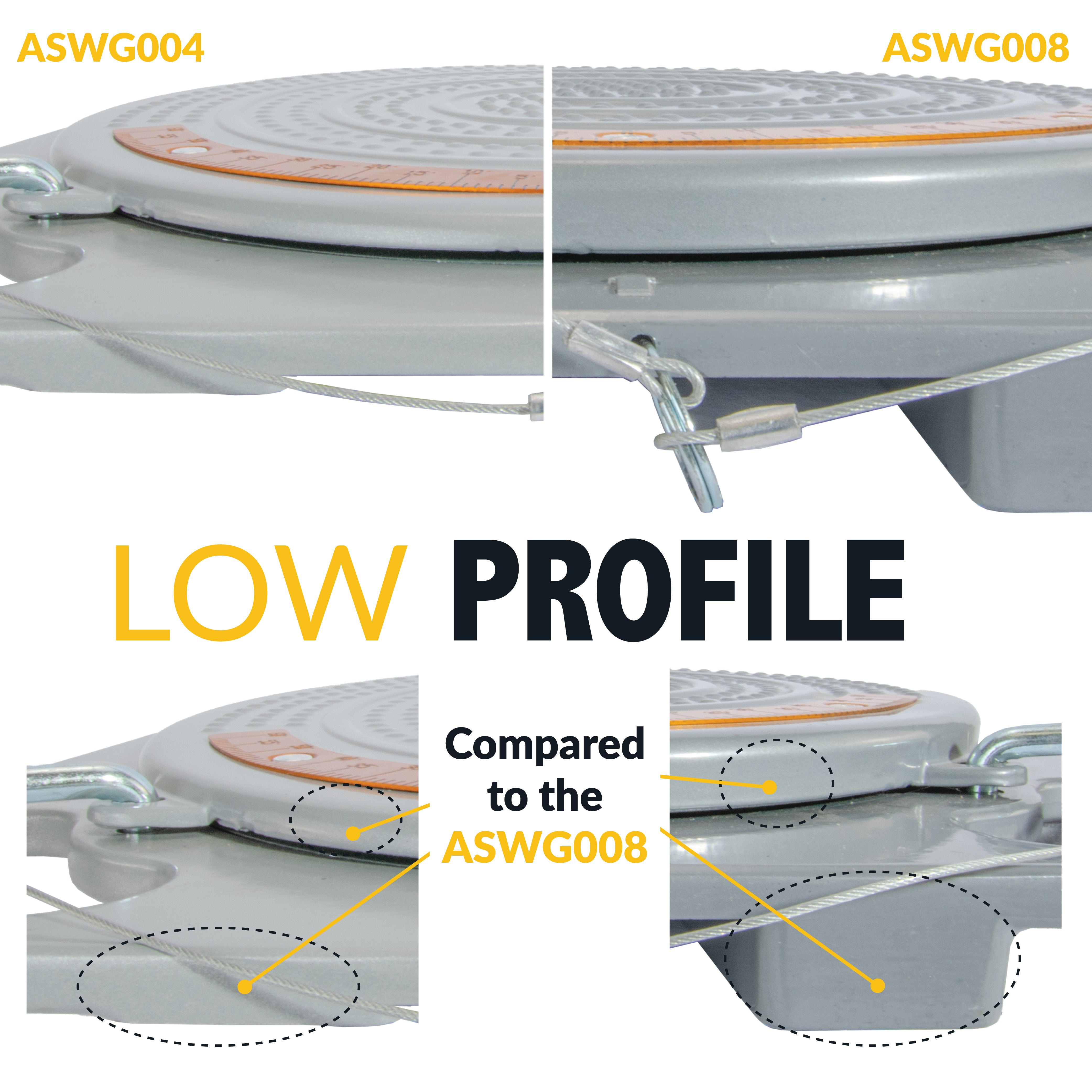

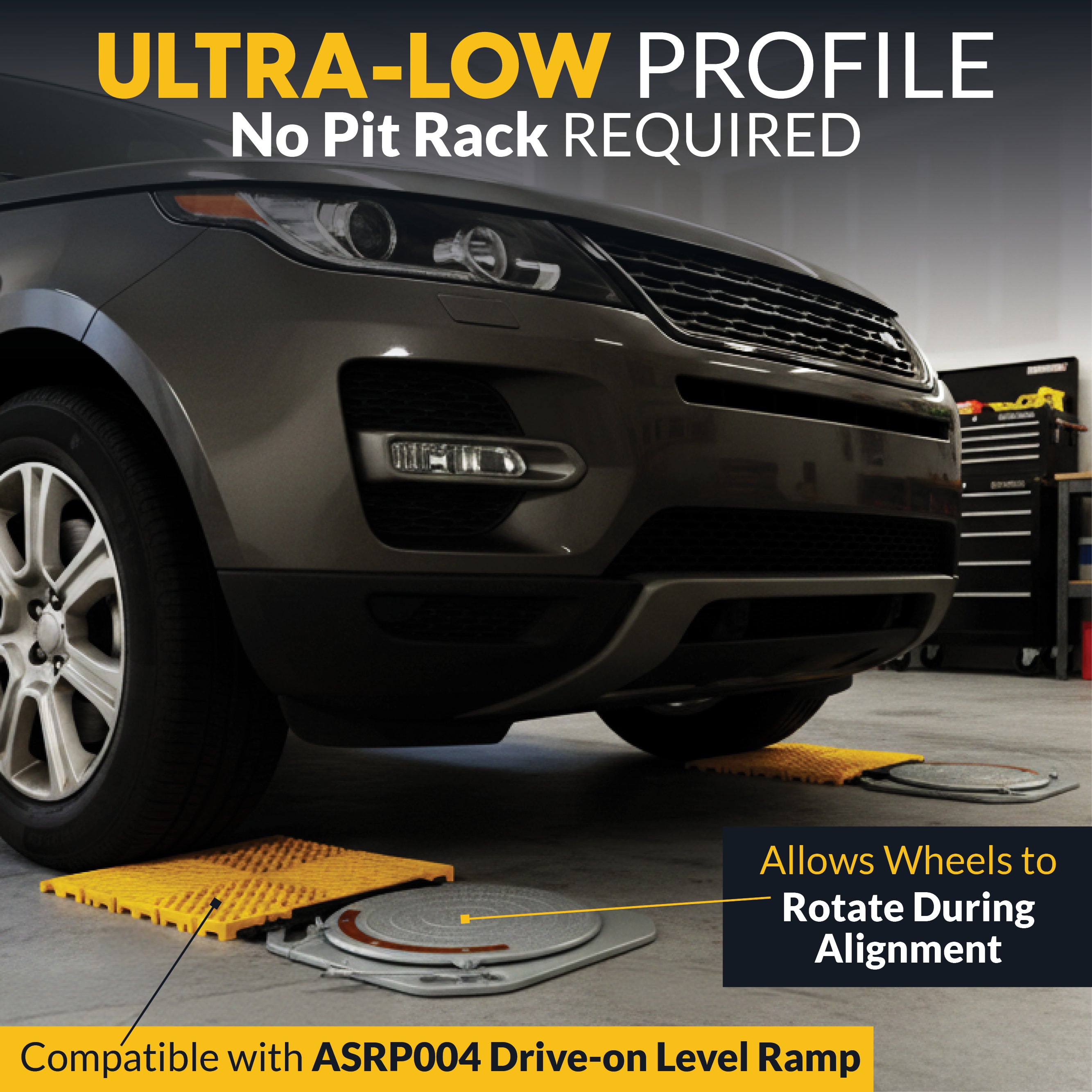

The Low Profile Design is particularly suitable for sports cars and custom vehicles where clearance is minimal, providing the same precision and durability but in a more compact form. This design variation ensures that no matter the vehicle, you have the right tools for accurate alignment.

Specifications:
Standard
SKU: ASWG008
UPC: 650229780339

Low Profile
SKU: ASWG004
UPC: 850030094995

Turn Plates User Guide

PDF Document

Compatible

Parts and Accessories

Alignment Turn Table Replacement Part - Transition Bridges

$24.95

View details

Alignment Turn Tables Replacement Part - Wheel Chocks

$24.95

View details

ASWG008 Raised Turn Plates for Pit Rack Use

The ASWG008 Turn Plates feature a 1.9" (4.8 cm) raised profile designed for pit racks and elevated alignment platforms. Built with smooth rotational bearings, ±60° steering scale, and 1" lateral slip, they provide stable support and precise caster sweep in professional shop environments.

ASWG008 Features

Check now

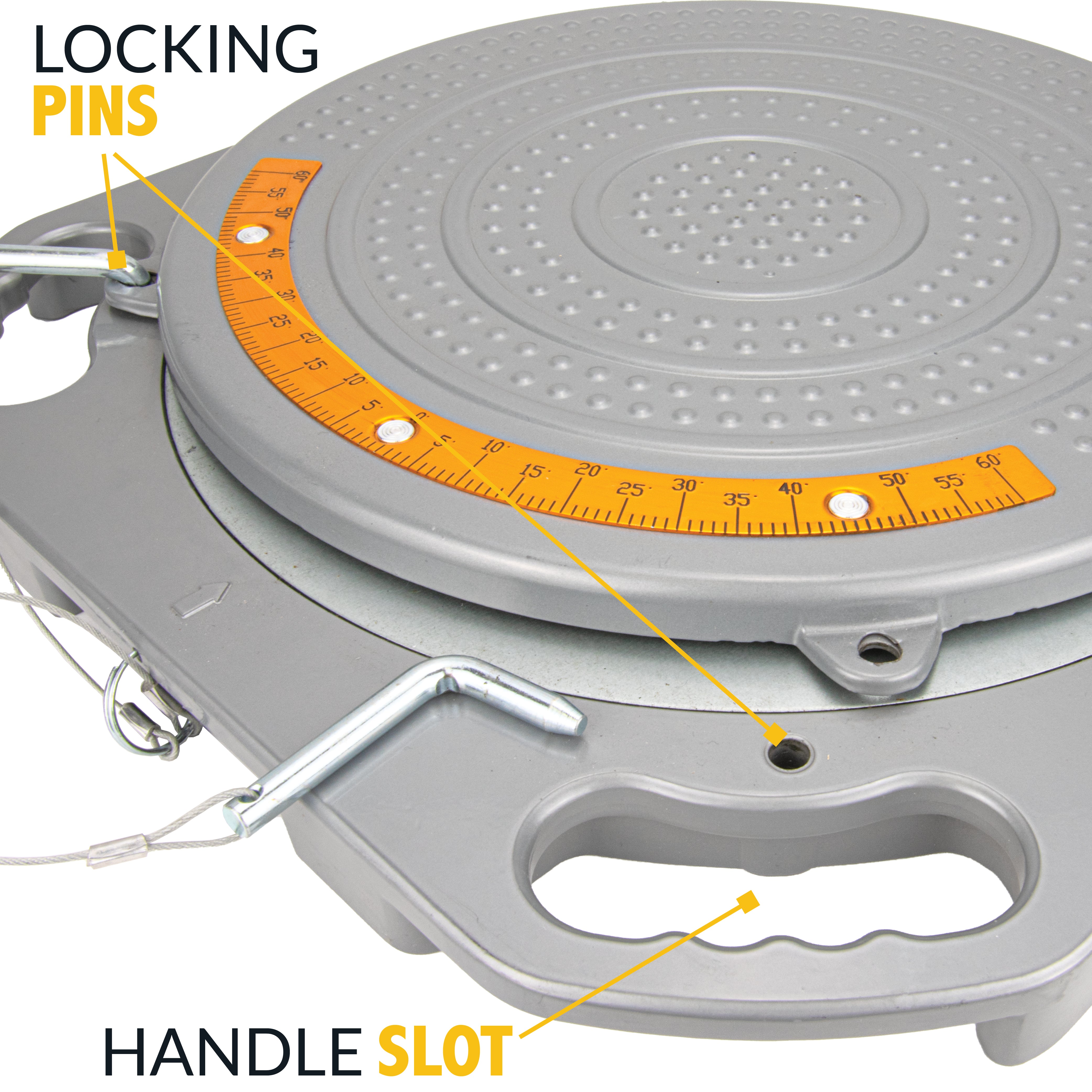

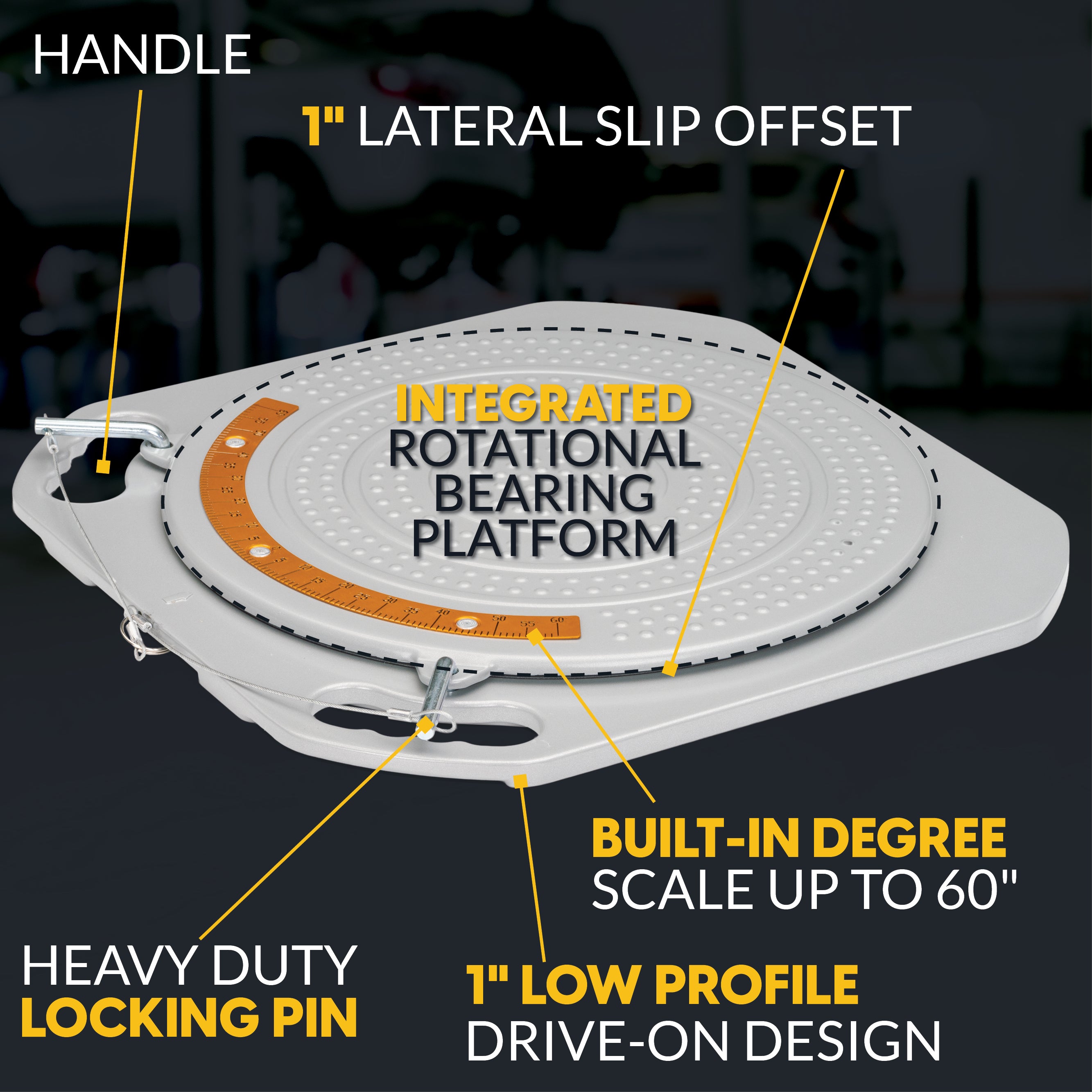

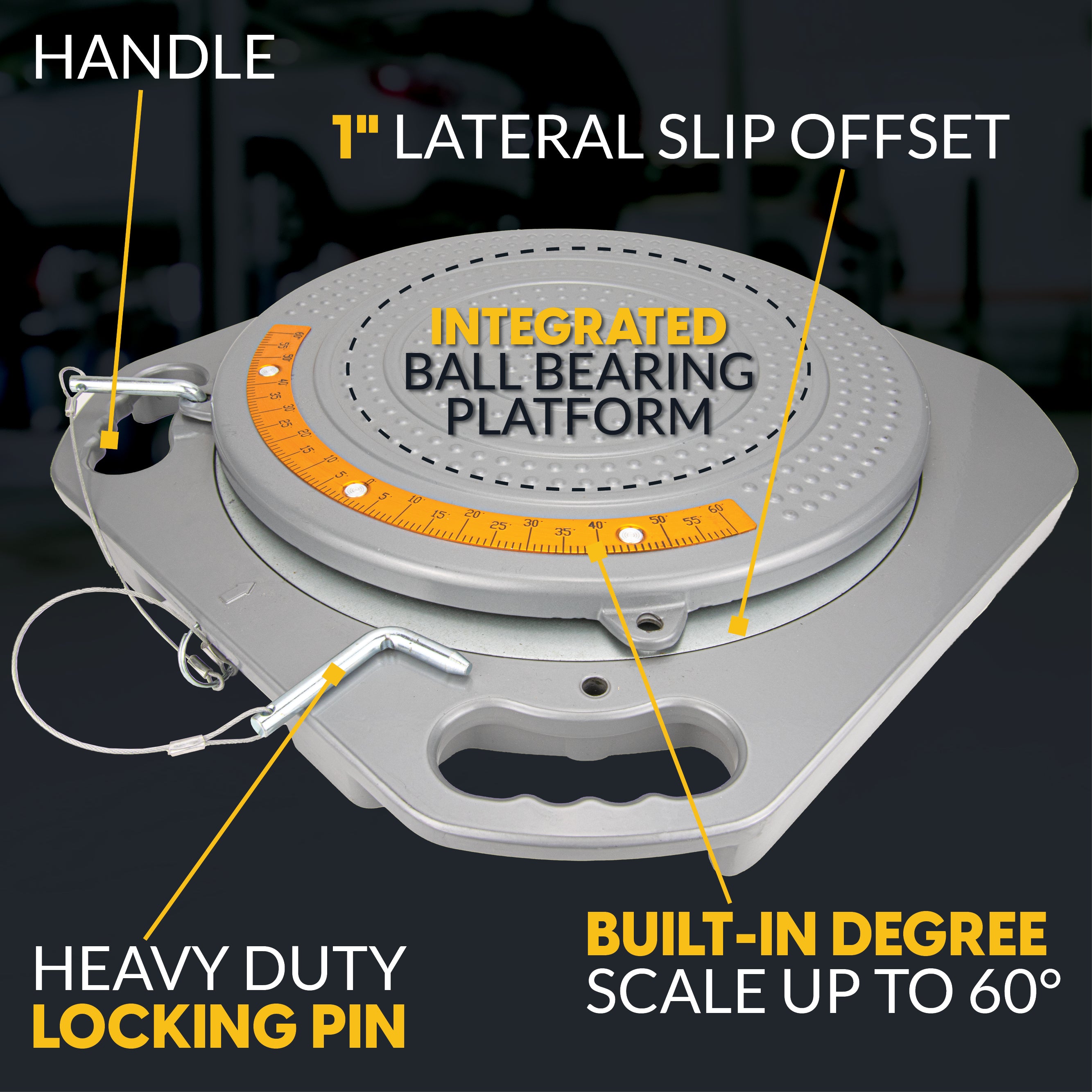

Integrated Carry & Positioning Slots

Precision-cut handle slots allow easy transport and precise placement under the tire. Move and position plates safely without finger pinch risk.

Smooth, Non-Slip Rotational Bearing Platform

Precision bearing design allows effortless steering movement while the non-slip surface keeps tires stable. Delivers smooth caster sweeps and consistent readings without unwanted plate drift.

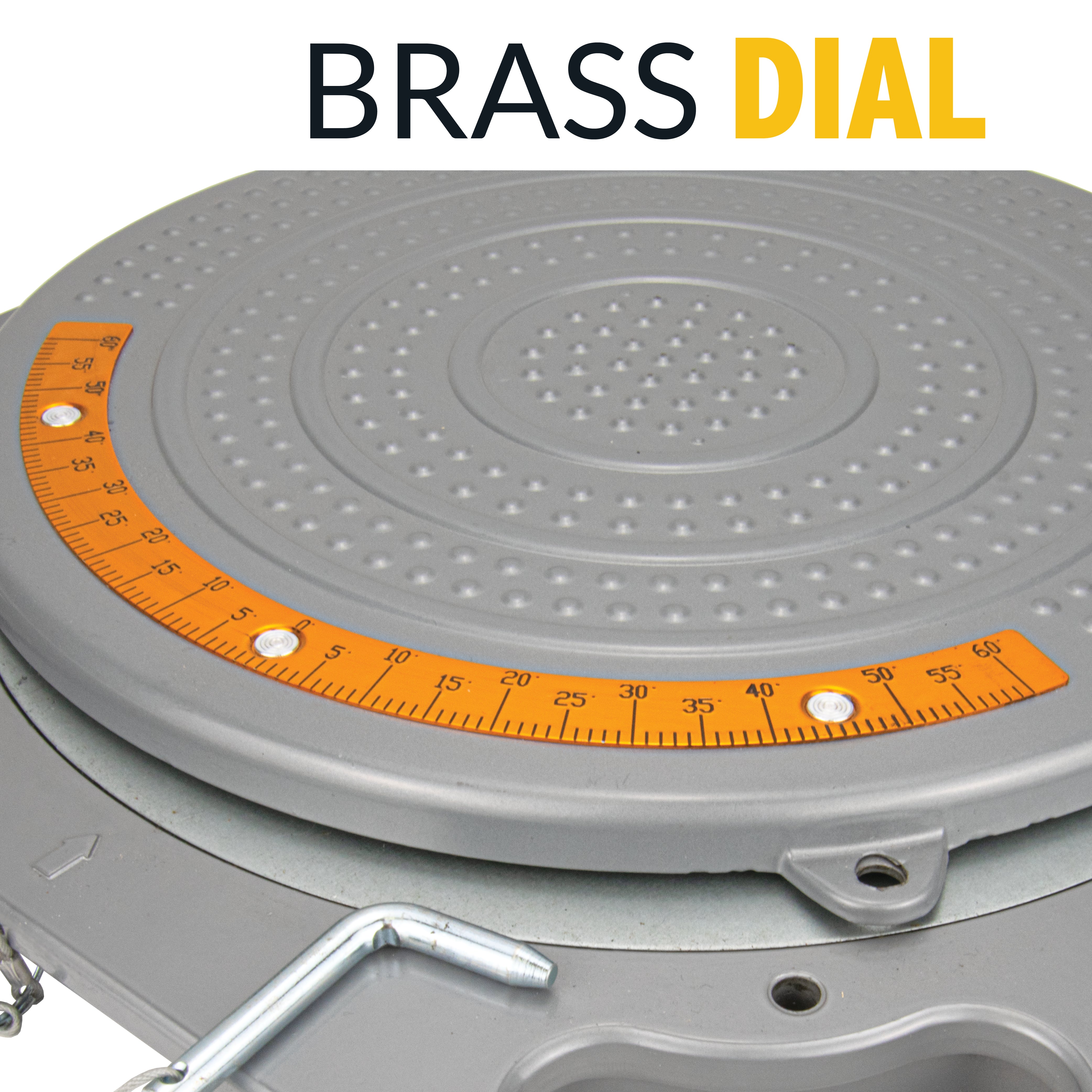

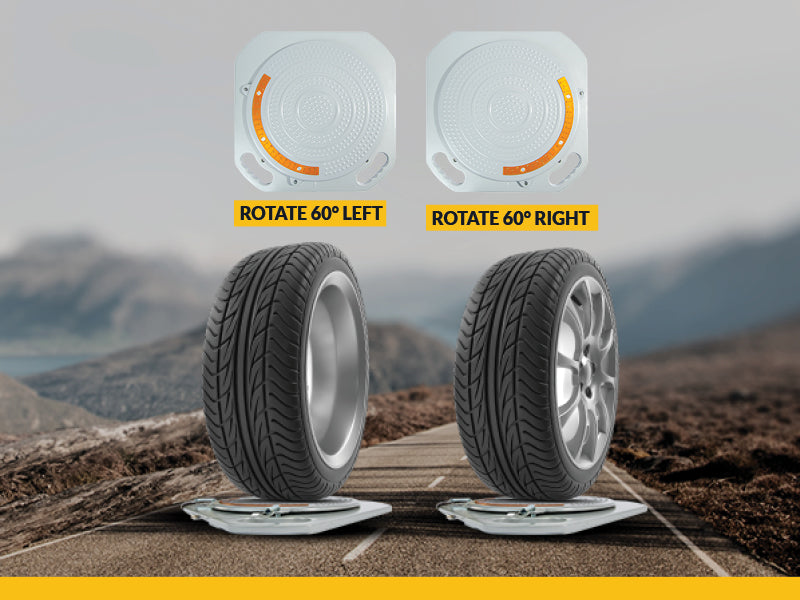

60° Bi-Directional Degree Scale

Integrated ±60° steering scale enables accurate caster angle measurements. Clear, easy-to-read markings make repeatable sweeps simple and efficient.

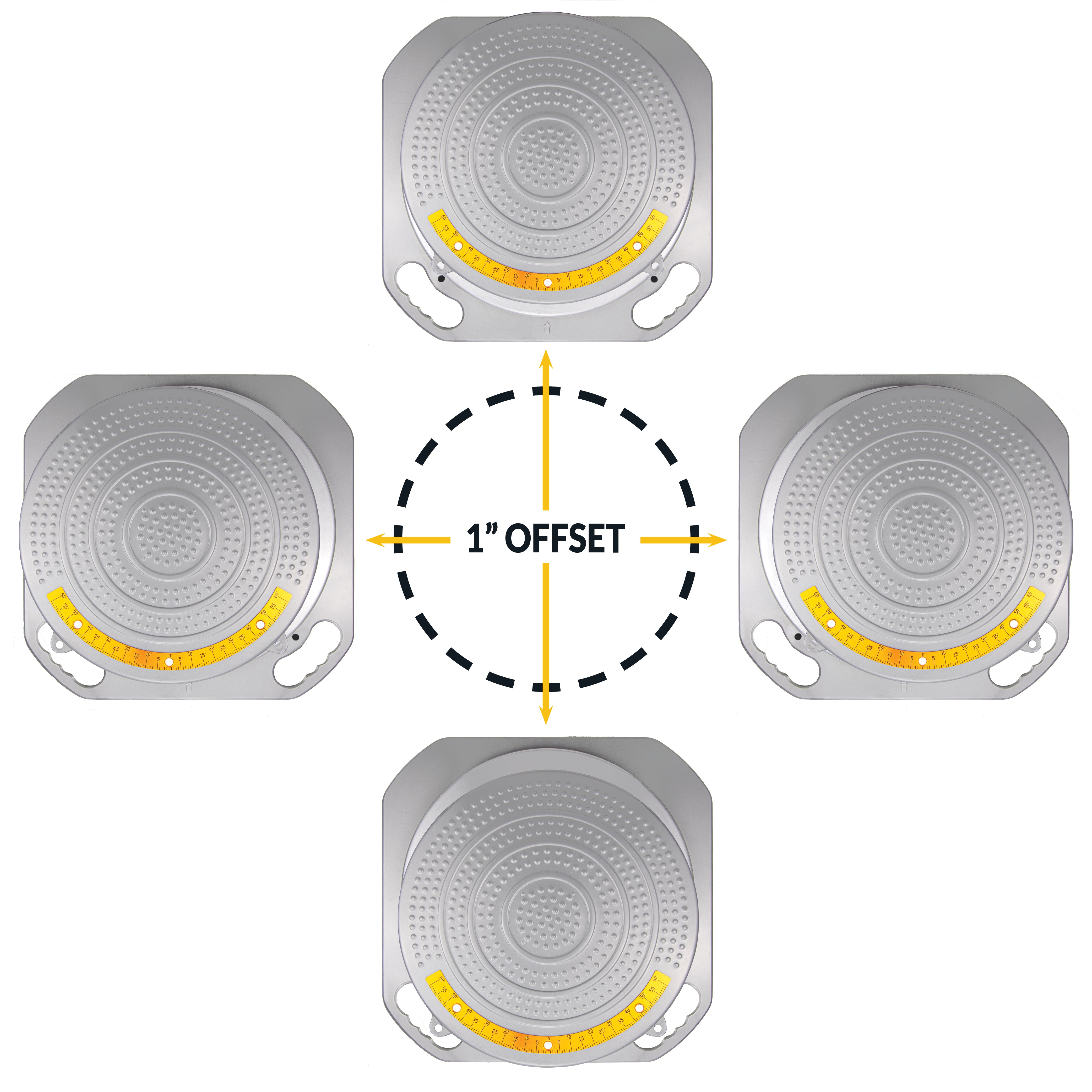

1” Lateral Slip for True Suspension Settle

Built-in side-to-side slip allows the suspension to naturally settle during adjustments. Reduces bind and improves camber and toe measurement accuracy.

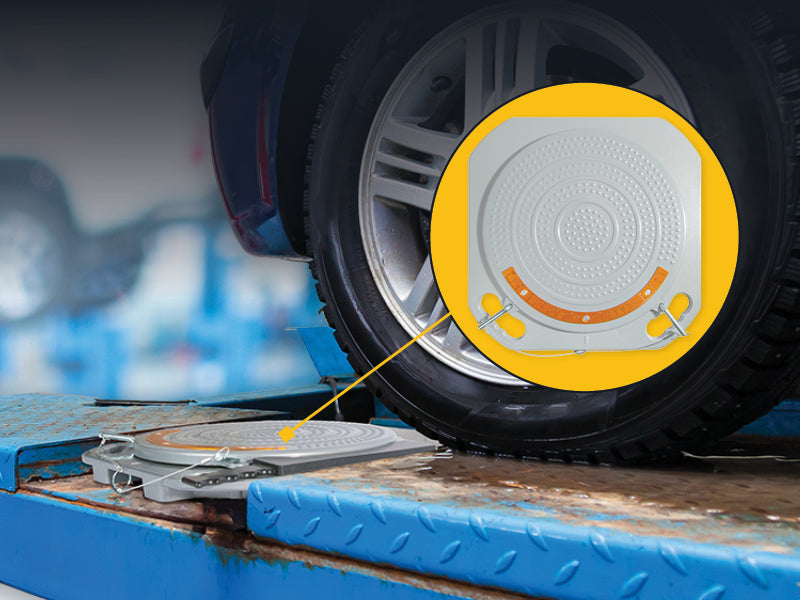

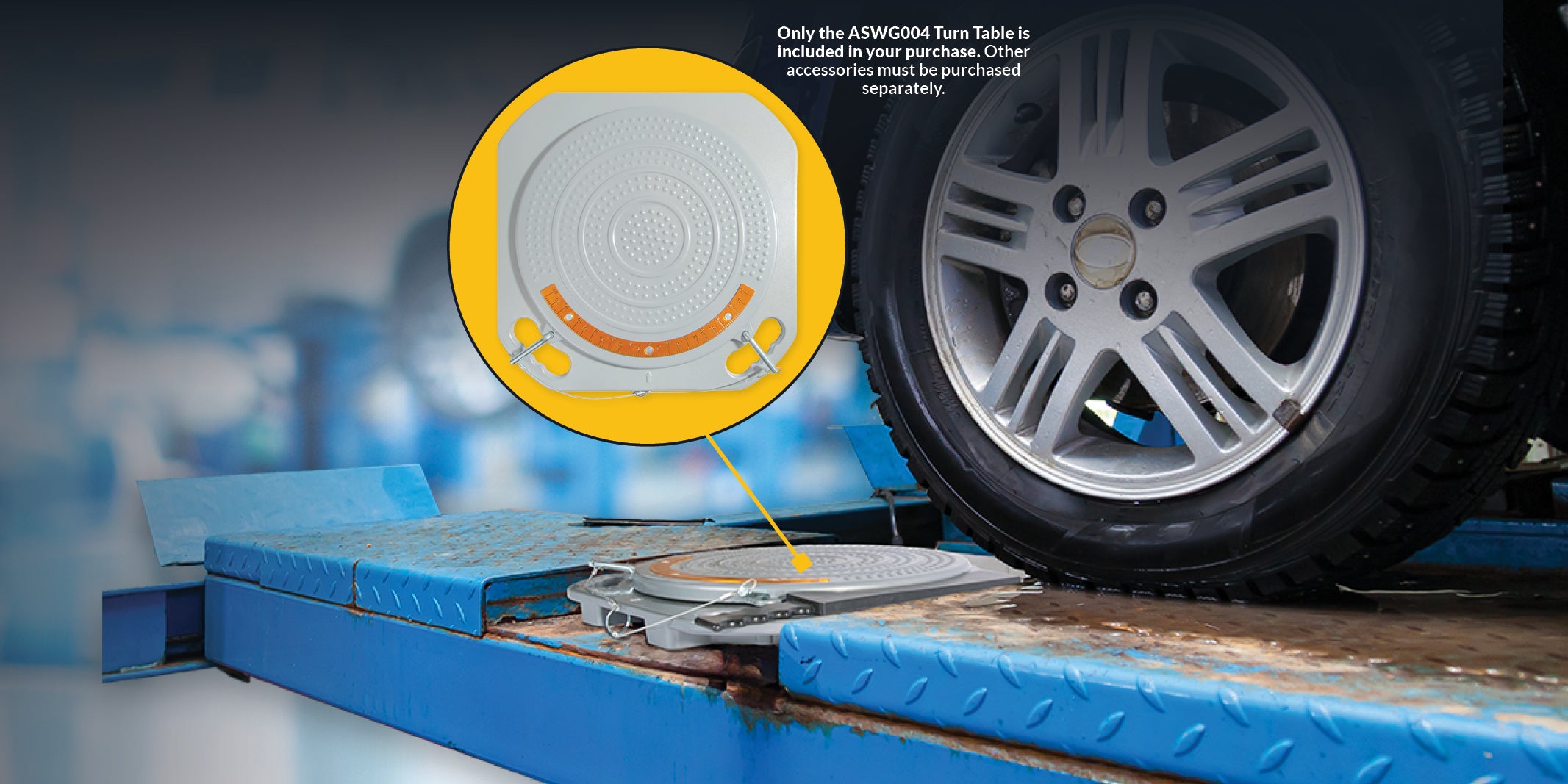

Standard Pit Rack Compatibility

The 1.9" (4.8 cm) raised profile is designed to align with standard pit racks and elevated platforms. Ensures proper surface height matching for stable positioning and accurate caster measurements.

Built for Professional Shop Environments

Engineered for repeatable accuracy in high-use settings, the ASWG008 integrates seamlessly with pit racks and alignment platforms. The raised height ensures proper surface matching while the bearing system and slip function allow smooth steering movement without suspension bind.
