Drive-On Ramps for ASWG004 Low Profile Turn Plates
Drive-On Ramps for ASWG004 Low Profile Turn Plates
Level the entry.
Level the whole car.

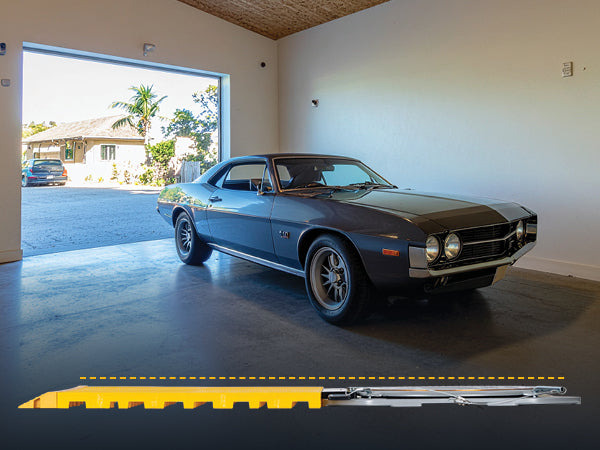

Your ASWG004 turn plates sit 0.8" off the floor. Drive straight at that step and the tire shifts the plate off its mark before it ever climbs on. ASRP004 raises every wheel to the same 0.8" height, so the car rolls on level, sits level, and settles level.
Roll onto the plates without moving them.
The same corner, with and without the ramp.

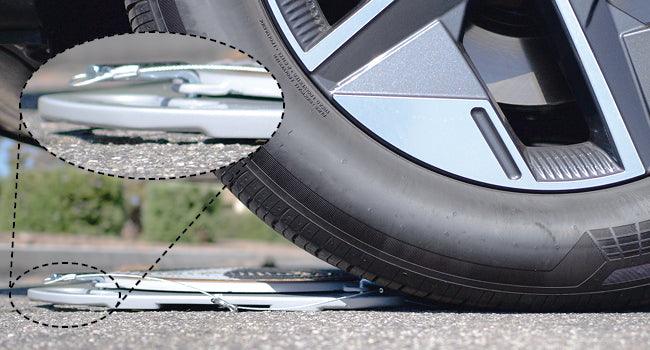

Driving straight onto the plates
A 0.8" step meets the tire before the plate does. The tire nudges the plate along as it climbs: the plate skids off center, and the floating top plate jams against its travel stop. The dial ends up pointing somewhere it should not, and you start the alignment with a moved plate, not a centered one.

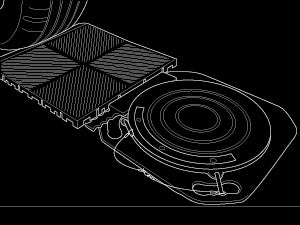

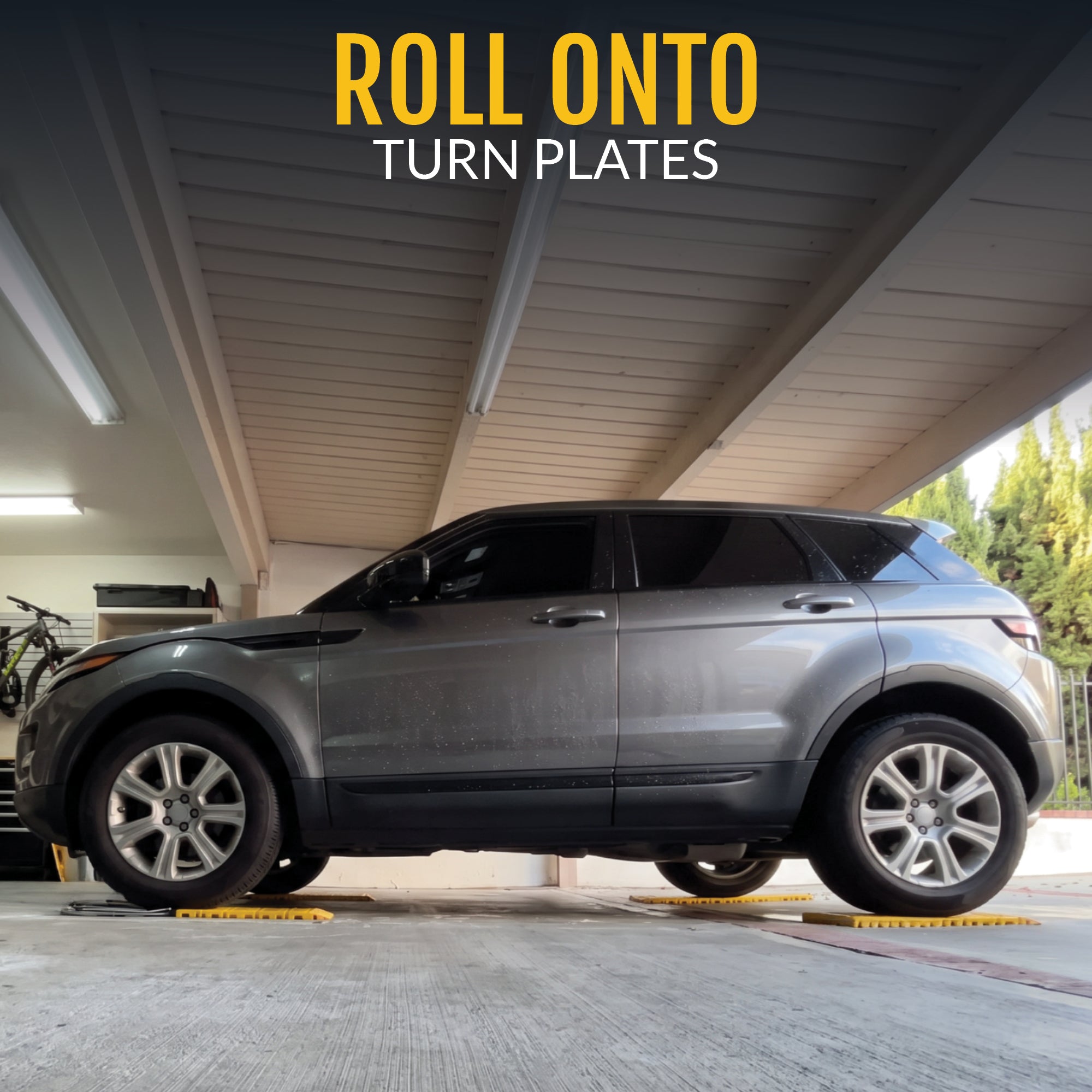

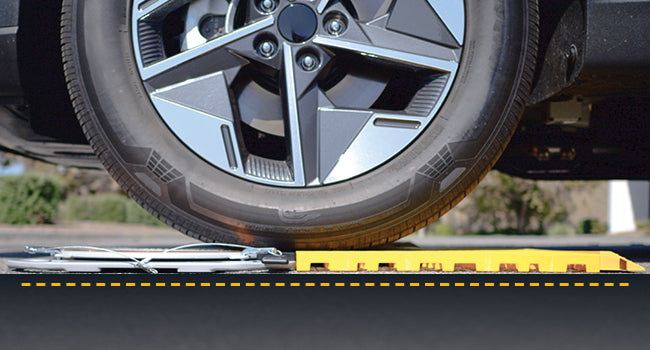

Rolling on with ASRP004
The ramp carries the wheel up the full 0.8" and hands it over level with the plate deck. The tire rolls across the bridge onto the plate instead of striking its edge, so the plate stays centered under the wheel and the top plate keeps its free float. Roll on, settle, and start from a centered plate.
Five engineered details. One level stage.
Hover or tap each point to see what carries the car.
0.8" deck, matched to the ASWG004
The deck finishes at the same height as the ASWG004 turn plate seat, so the transition bridge lies flat and the wheel crosses without a lip either way.
0.8" deck, matched to the ASWG004
The deck finishes at the same height as the ASWG004 turn plate seat, so the transition bridge lies flat and the wheel crosses without a lip either way.
From flat panels to a level stage.
Slide-lock assembly, ramp placement, drive-on, and plate staging. Start to finish.
Four steps to a level car.

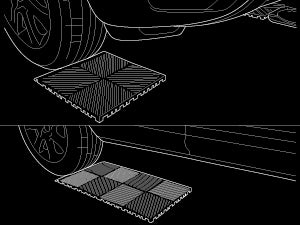

Step 01 / Set the Floor
Work on flat, hard concrete or paved floor. Skip sloped driveways, gravel and soft ground. The floor is the reference everything measures against.
Step 02 / Drive On
Ramp centerline to wheel centerline, longer units to the rear. Roll on at walking pace and stop on the flat deck. Do not overshoot.

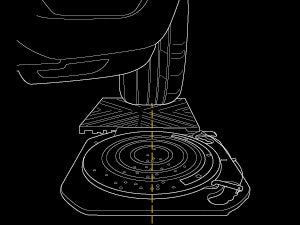

Step 03 / Stage the Plates
Set an ASWG004 turn plate in front of each front wheel, plate center matched to wheel center. Shift outward on wide tires so the dial stays visible.

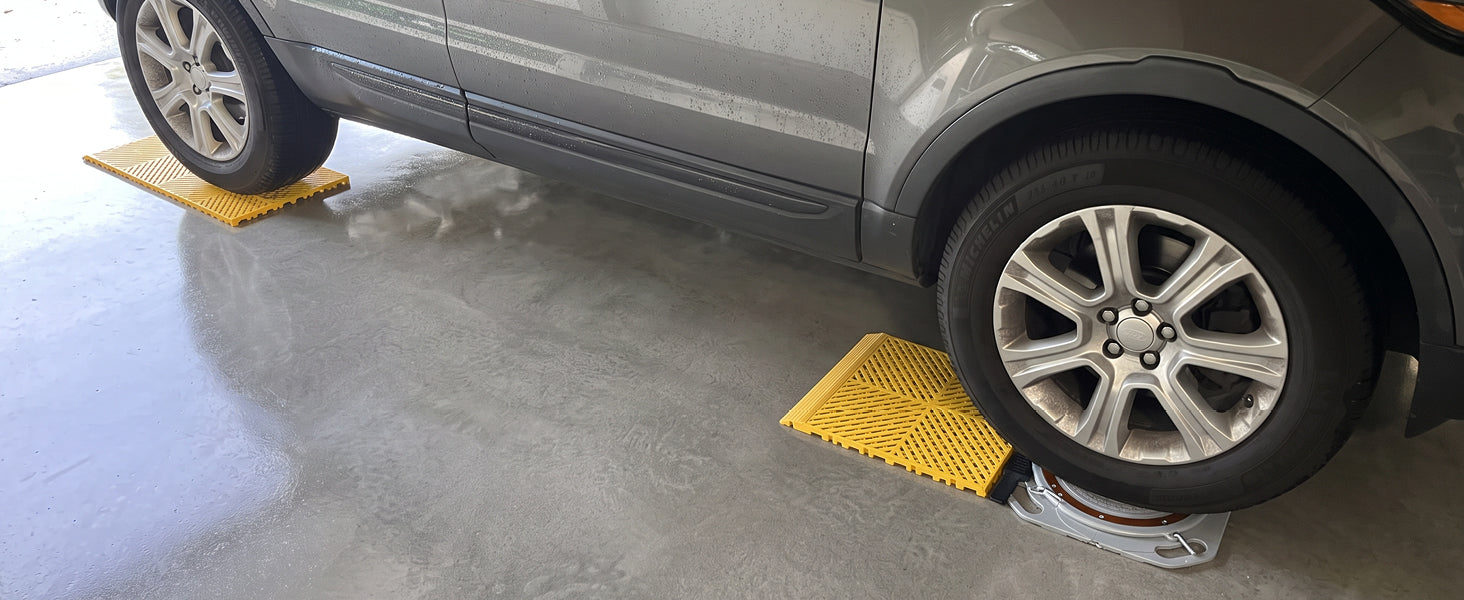

Step 04 / Bridge and Settle
Drop the ASWG004-TSB bridges in, roll the front wheels onto the plates, chock the wheels, and let the car settle before you read anything.
Why the ASRP004.
The staging layer of the AutoSolo system, built to the ASWG004's numbers.

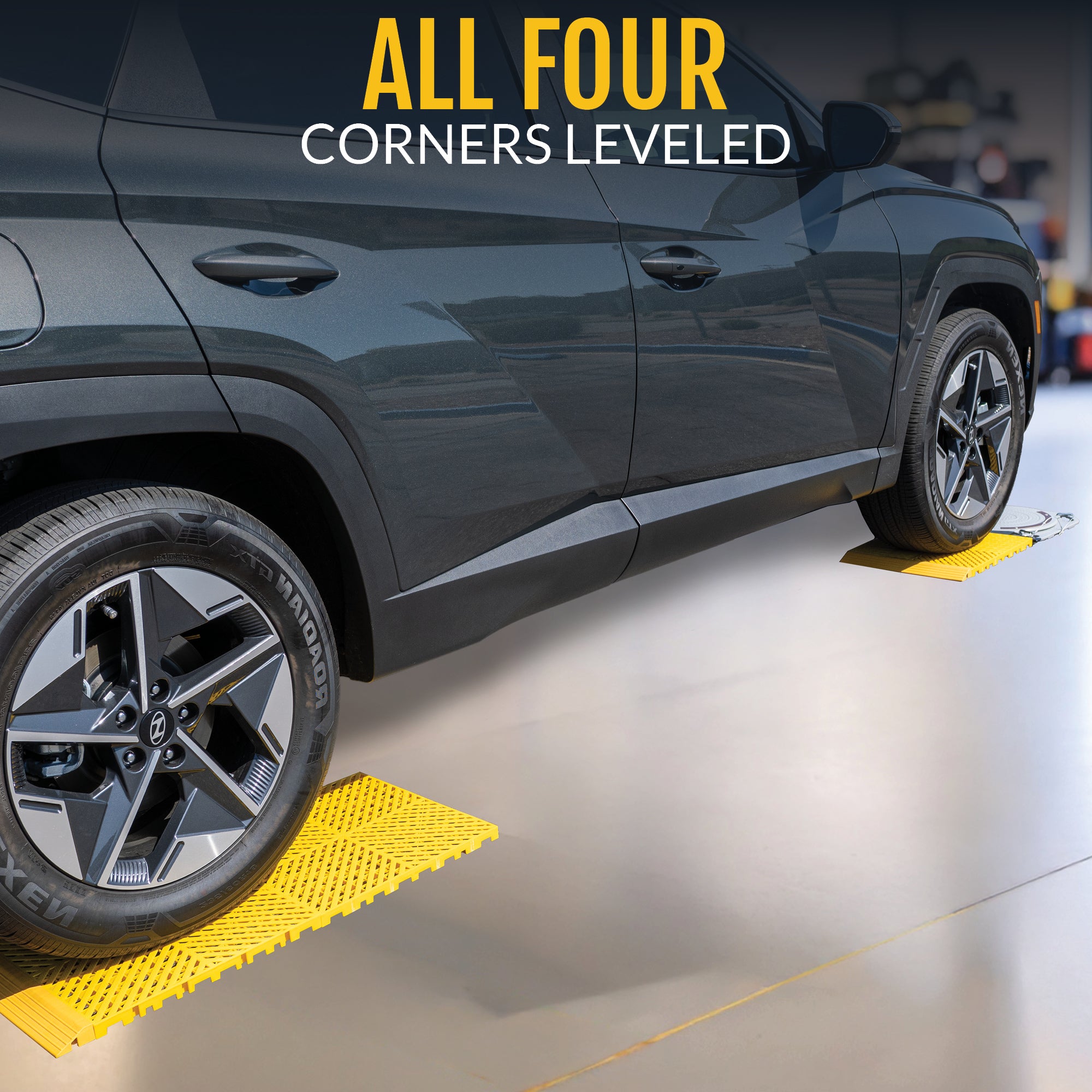

Level All Four Corners

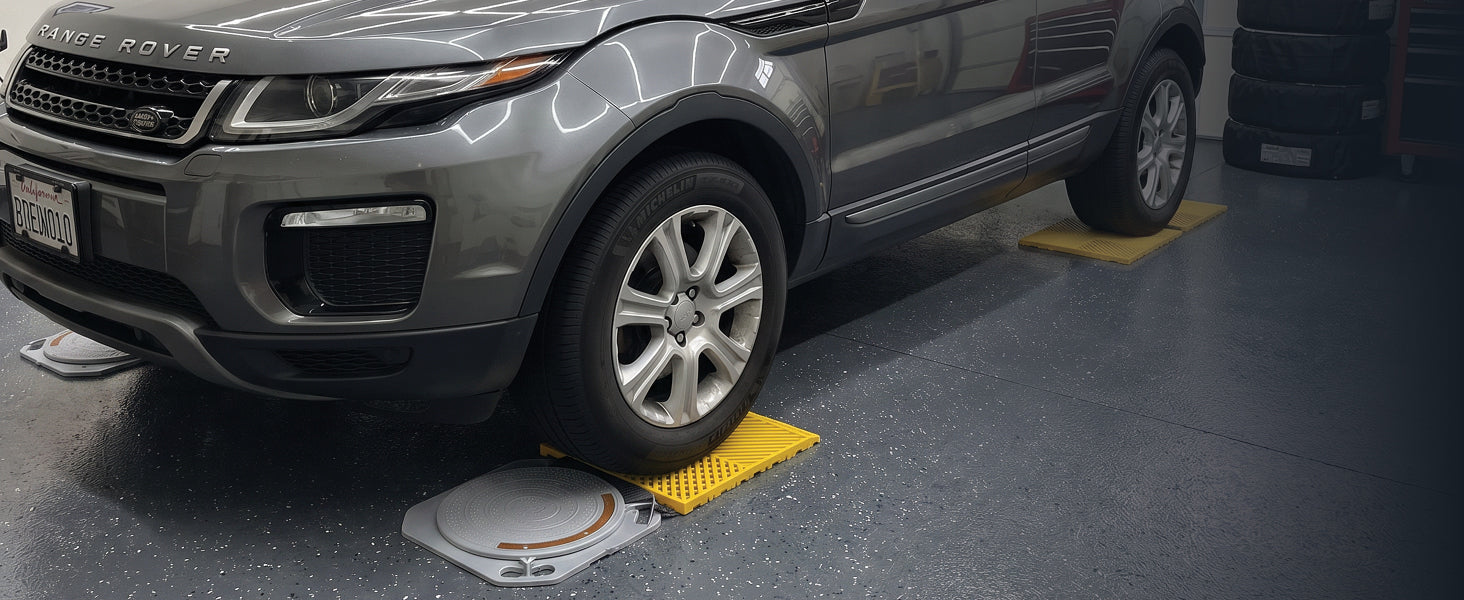

The ASWG004 turn plates hold your front wheels 0.8" off the floor. These ramps raise the rear wheels to the same 0.8" height, so all four wheels sit at one level while you set up your at-home wheel alignment.

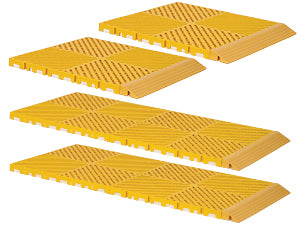

Four Ramps, Two Level Platforms
You get a ramp for every wheel plus two rear level platforms, so the whole car comes up level, not just the front. Every corner ends at the same height. The ASWG004 turn plates are sold separately.

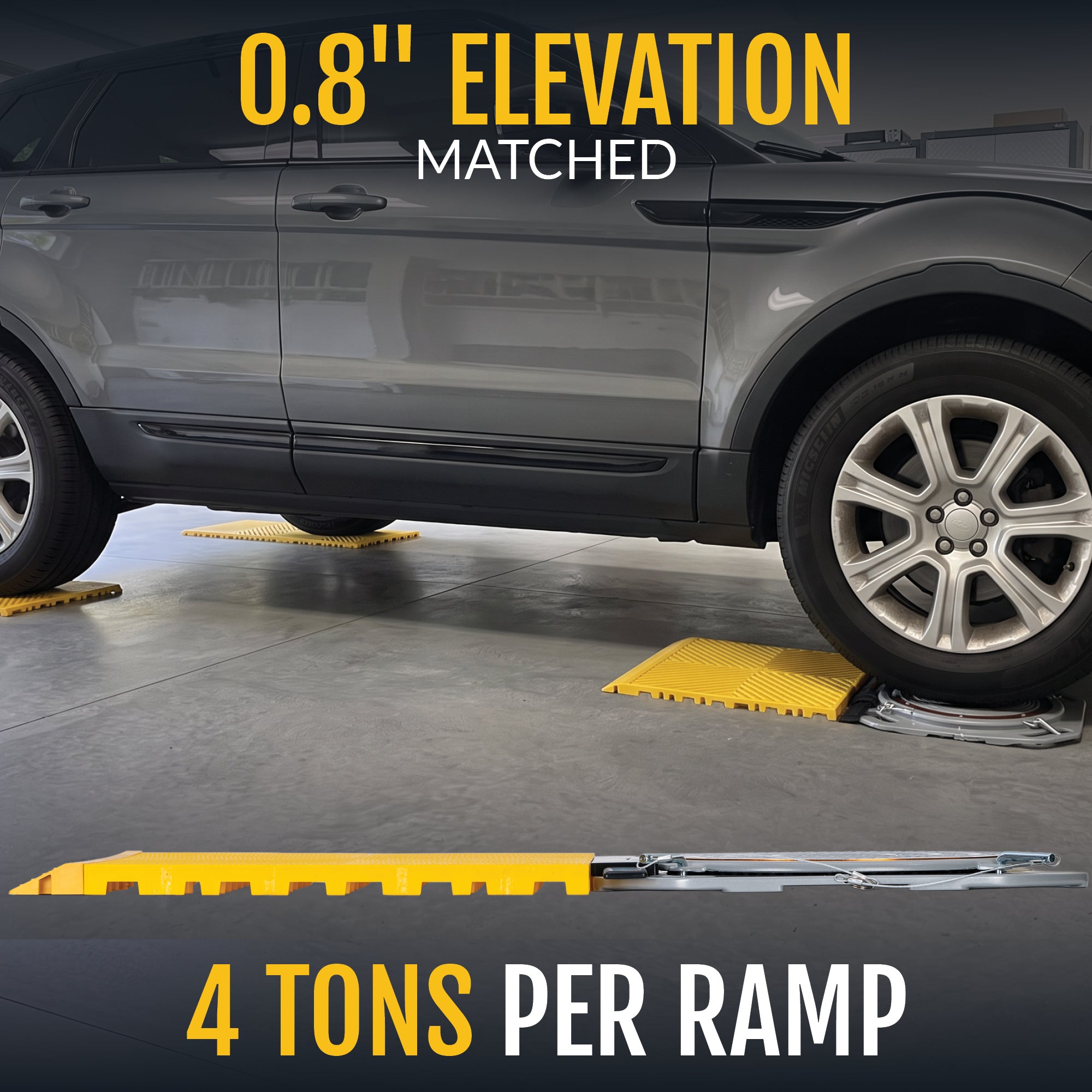

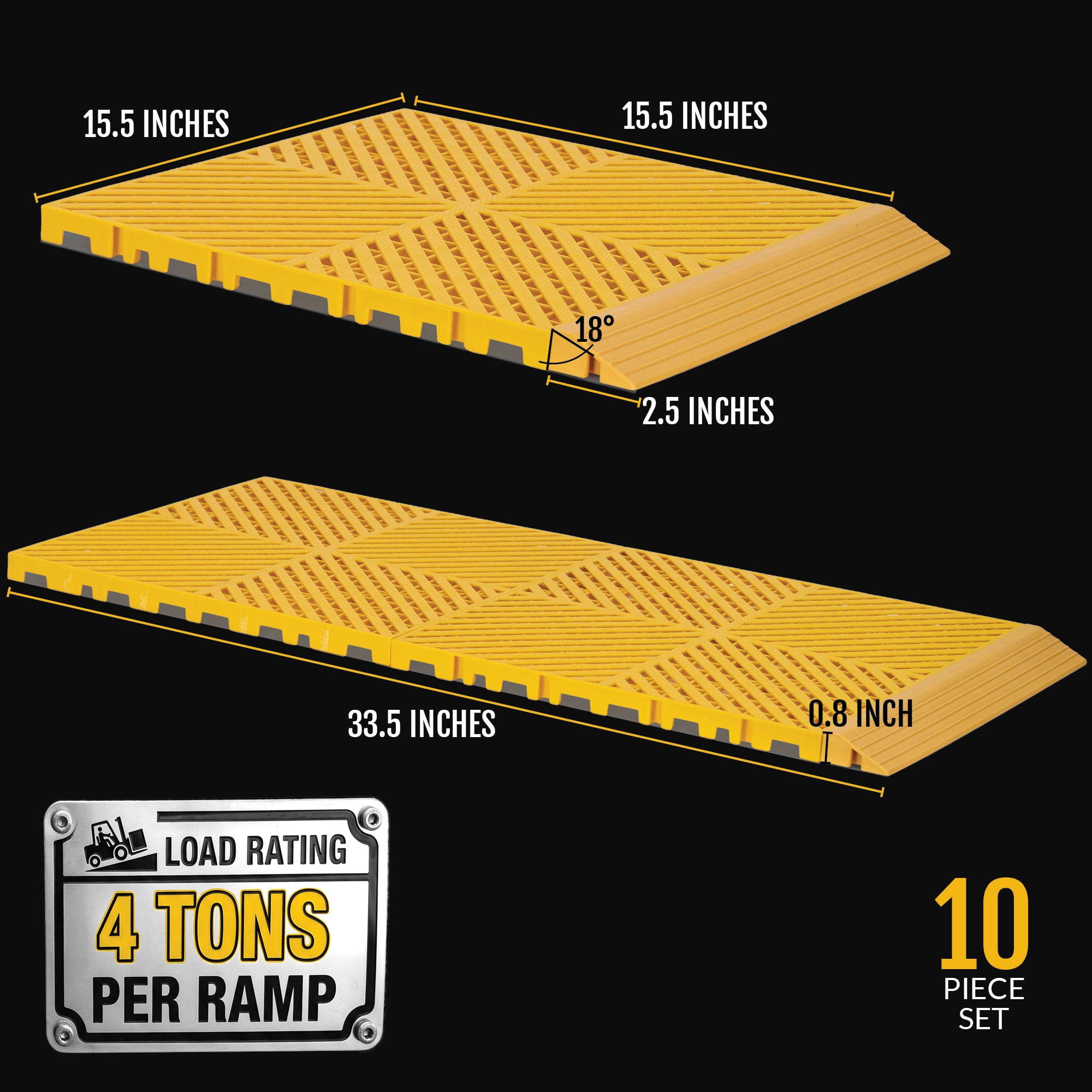

0.8" Height Match
The ramp deck finishes at the same 0.8" height as the ASWG004 turn plate seat, so the ASWG004-TSB transition bridge lies flat and the wheel crosses without a lip in either direction. The face rises only 0.8" over about a 2.5" run.
4 Tons Per Ramp
Each ramp is rated to 4 tons, the same rating as the ASWG004 turn plate it feeds. That handles cars, SUVs and light trucks with margin to spare, and keeps the whole staging system on one limit from ramp to plate.
Nothing Extra to Buy
The ASWG004-TSB transition bridges that span ramp to plate ship standard in every ASWG004 box. You already own them. No separate purchase to finish the ramp-to-plate transition.

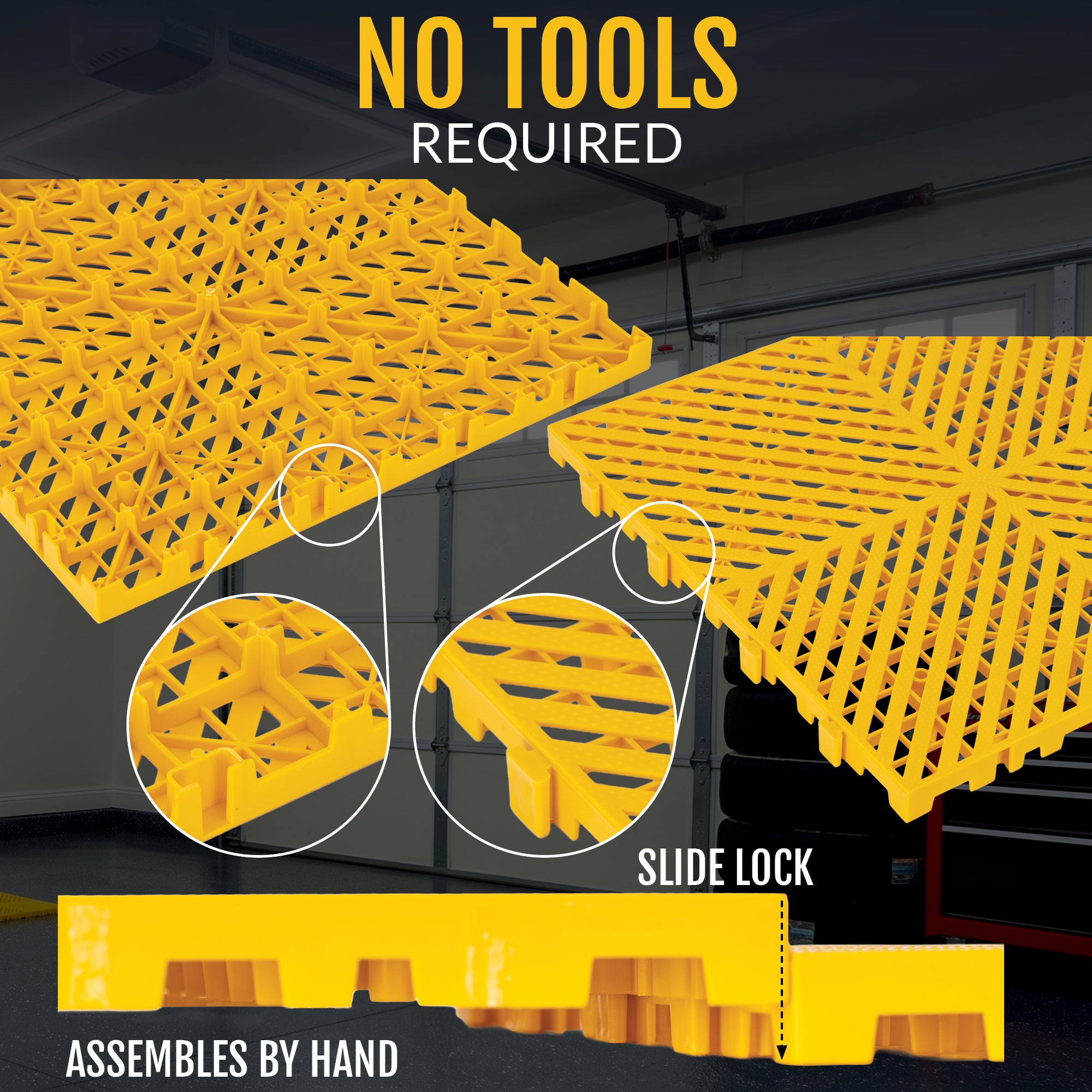

Tool-Free Slide-Lock
Panels snap together by hand, the female slot dropping over the male tab until it locks. Build the set in about a minute, break it down just as fast, and stow it flat.
Oil and Chemical Resistant
Molded polypropylene shrugs off oil, brake fluid and shop chemicals. It will not rust or splinter the way wood blocks and steel plate do over a few seasons.

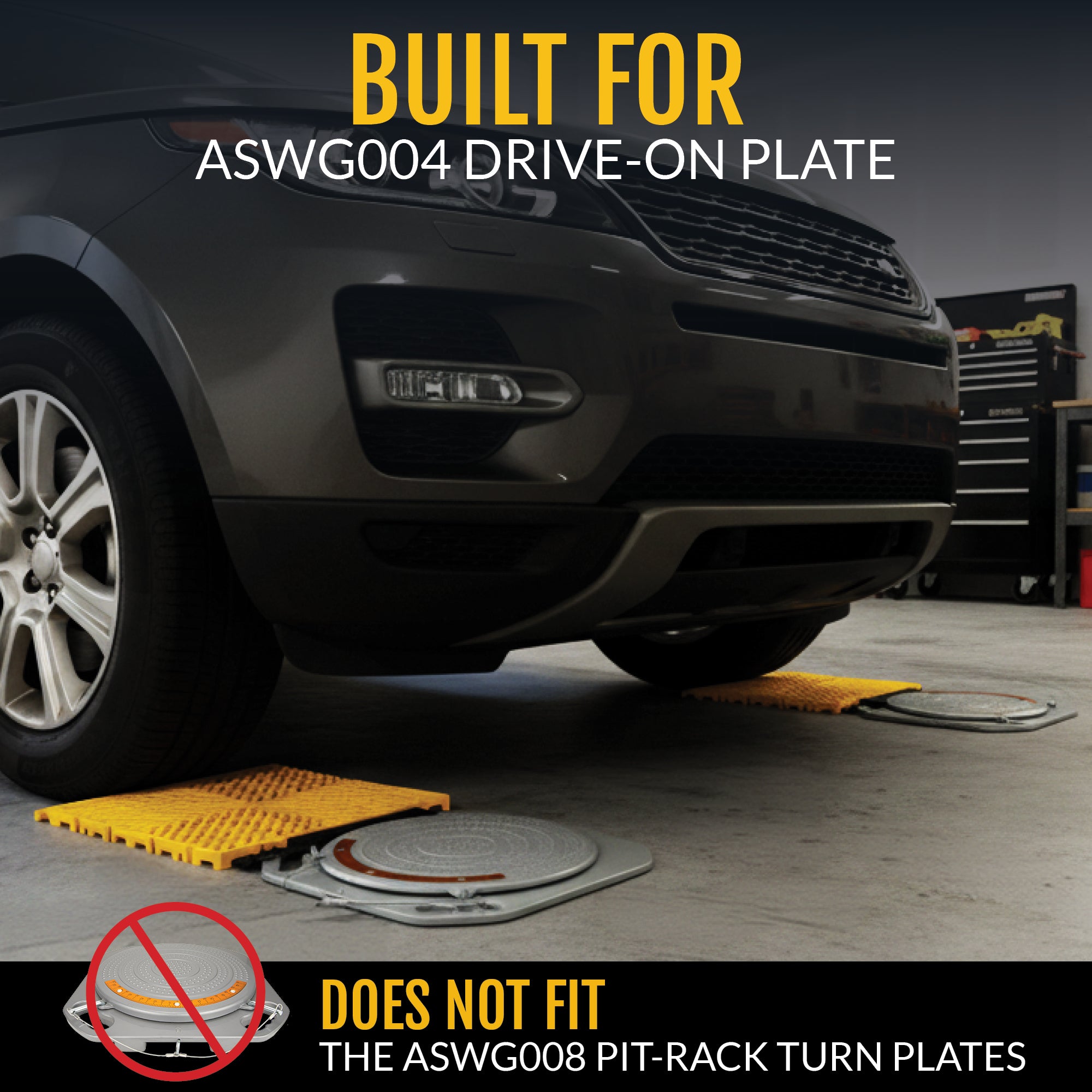

Built for the ASWG004, Not the ASWG008
Sized to the ASWG004 Low Profile Turn Plate, sold separately. It does not fit the ASWG008 pit-rack plate, which sits at a different height.
Hard, Flat Floors Only
Use on concrete or paved floor. Not rated for sloped driveways, gravel, dirt or soft ground. Built to stage a vehicle for alignment work, never as a vehicle lift, a jack stand, or fall protection.
Take the Alignment In-House
Stage all four corners level in your own garage and read camber, caster and toe at ride height. AutoSolo puts suspension work in your hands without a five-figure machine.

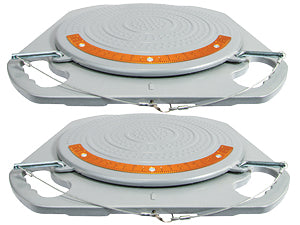

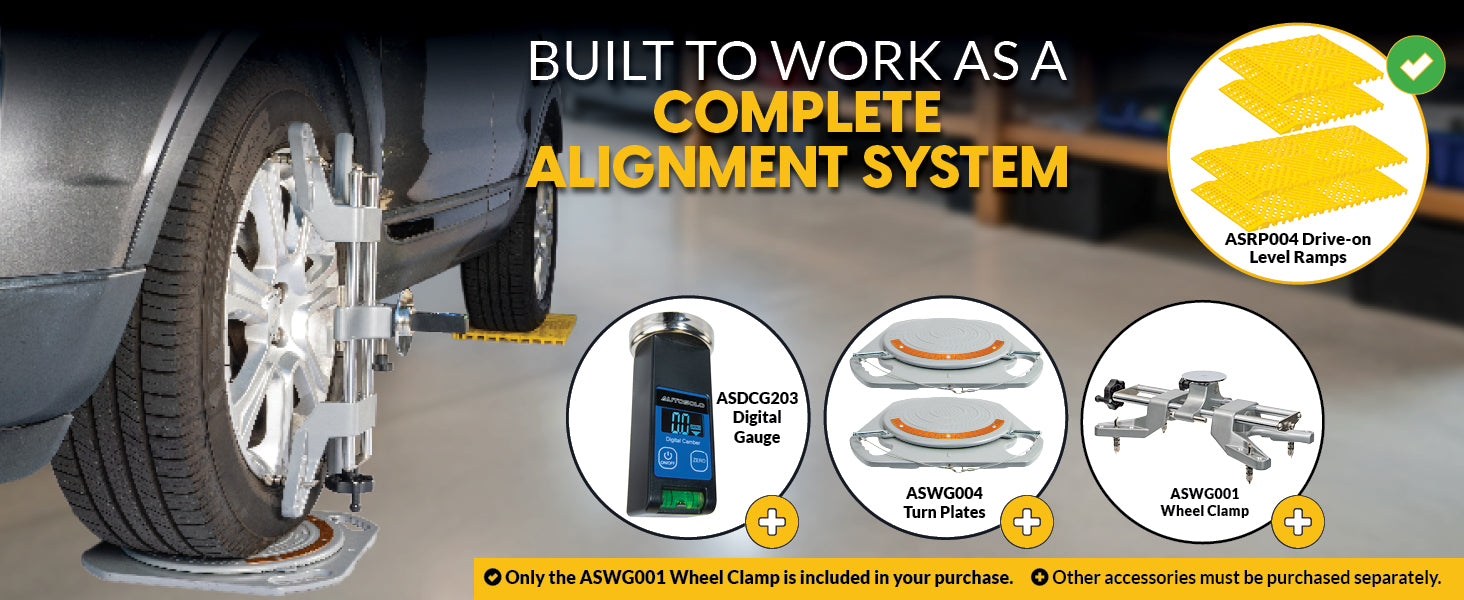

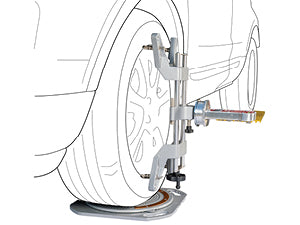

The plates it feeds, and the kit that bundles both.
Where the ASRP004 sits, and the two ways to complete the setup.
Tools you can rely on. Support you can reach.
Used by DIYers & Home Mechanics
Trusted by mechanics, enthusiasts, and builders worldwide for consistent alignment results.
Tested in Real Workshops
Used and reviewed by automotive creators and alignment specialists across platforms.
Backed by U.S. Support
Get fast help, product guidance, and expert support from our U.S.-based team.
1-Year Replacement Support
If any manufacturing defects occur, our team will provide prompt support and replacement.
UNDERSTANDING LEVEL STAGING
The AutoSolo ASRP004 is a drive-on leveling ramp and platform set built to stage a vehicle for wheel alignment at the same 0.8 inch height as the ASWG004 Low Profile Turn Plates. Ten slide-lock polypropylene panels assemble by hand into 4 drive-on ramps and 2 rear level platforms, with no fasteners. The front wheels roll up their ramps, cross the ASWG004-TSB transition bridges that ship in every ASWG004 box, and settle onto the turn plates; the rear wheels finish on the level platforms, so all four corners sit on one plane at ride height. Driving a tire straight at an unramped plate tends to push the plate off center and pin its floating top plate against the travel stop, so the ramp entry is what keeps each plate centered and free before camber, caster, KPI and toe are set. Each ramp is rated to 4 tons, the same rating as the turn plate it feeds, which covers cars, SUVs and light trucks. The molded polypropylene resists oil, brake fluid and shop chemicals and stows flat between alignments. The set fits the ASWG004 only; it does not fit the ASWG008 pit-rack plate, which sits at a different height. Use it on hard, flat concrete or paved floors to stage a vehicle for alignment work; it is not a vehicle lift or a jack stand. Within the AutoSolo system the ASRP004 is the staging layer under the measuring tools: the ASWG004 turn plates carry the front wheels, the wheel clamp and camber caster KPI gauge take the measurements, and the ASWG0401CMF Comfort kit bundles plates, ramps, clamp and gauge in one box.
