Magnetic Camber Alignment Gauge
Magnetic Camber Alignment Gauge

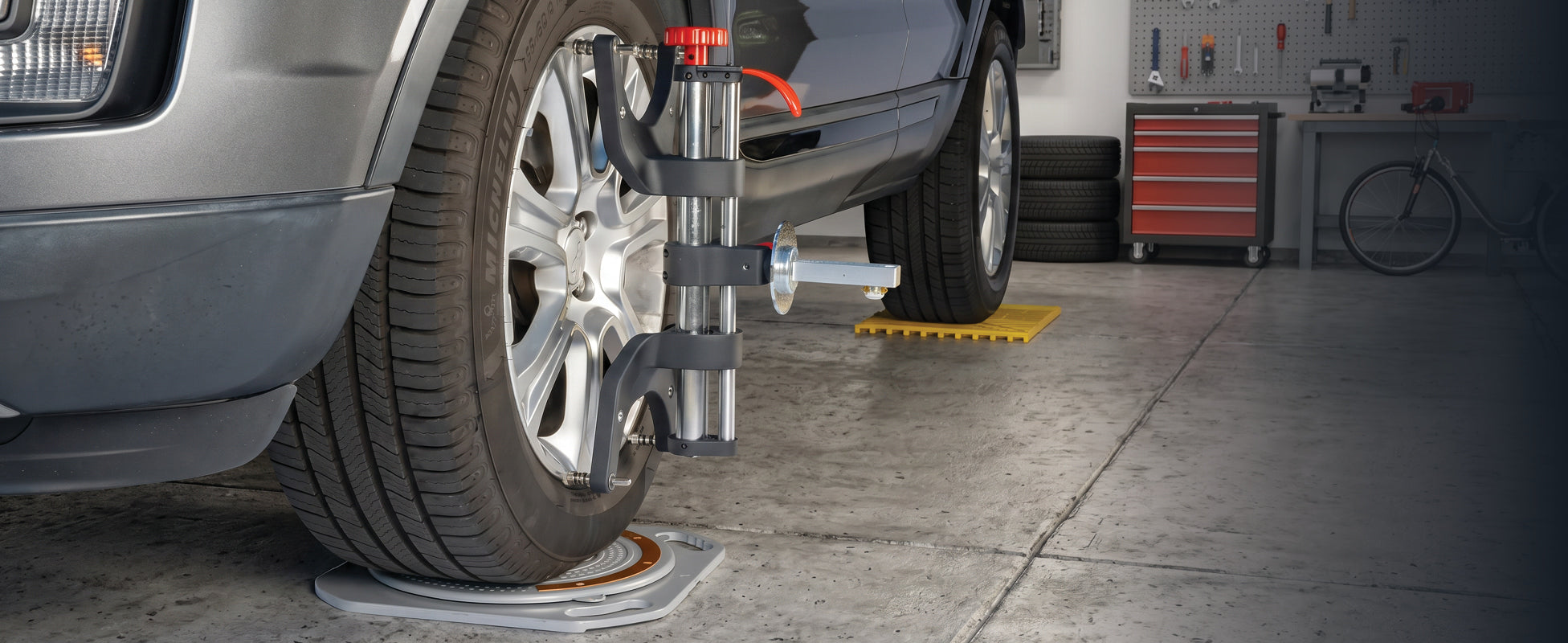

Wheel alignment at home.
Entry gauge. Full alignment system. Mount on cast iron hubs, brake rotors, or the ASWG001 wheel clamp. Zero the vial, read the bubble, record your angle. Camber and caster from +6° to -6° in 1/2° graduations. No shop, no batteries, no app.
What camber tells you.
Camber: Negative, Zero, Positive

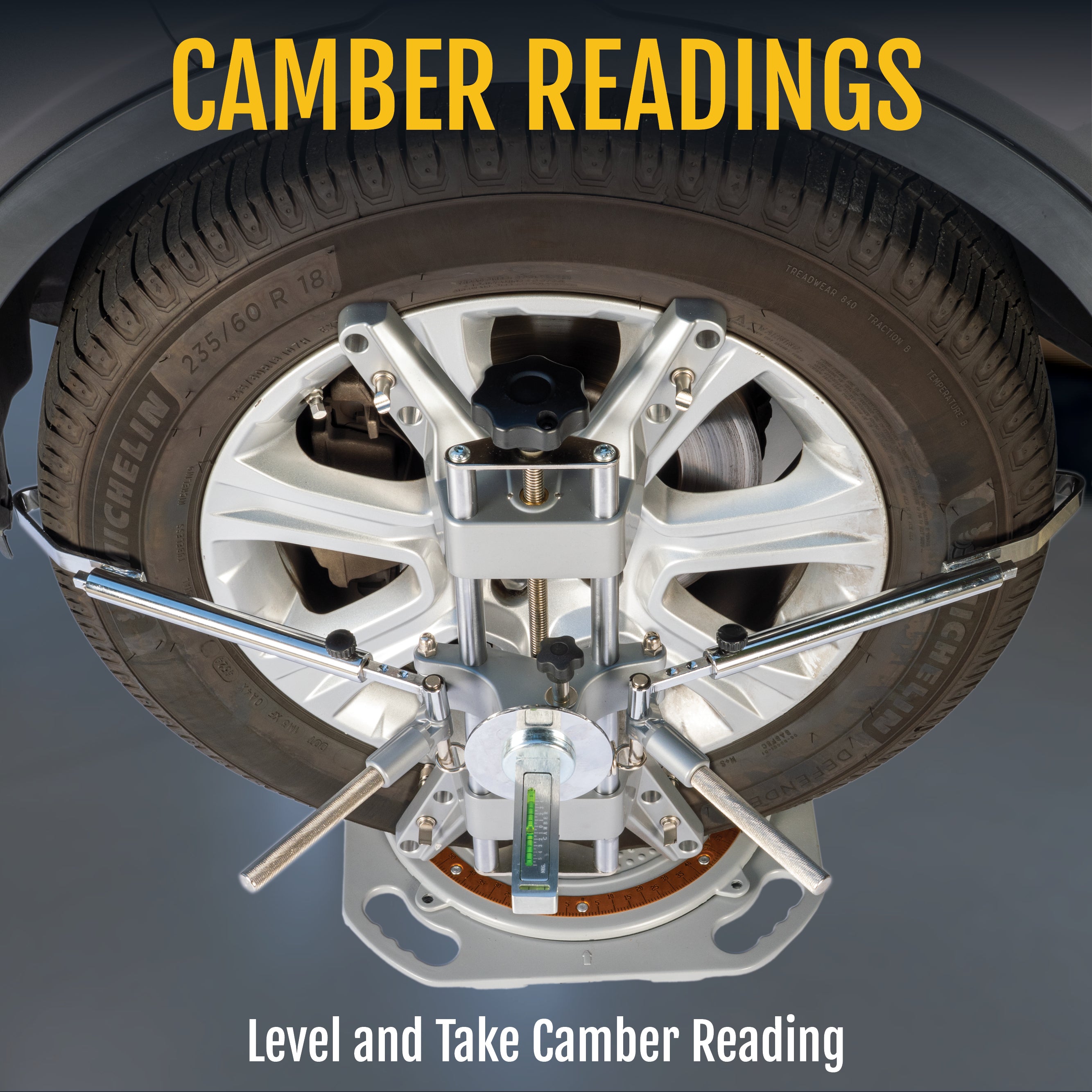

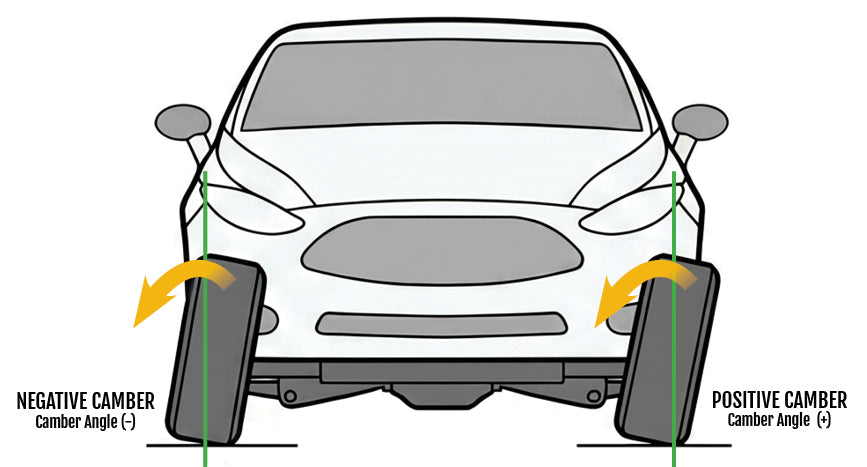

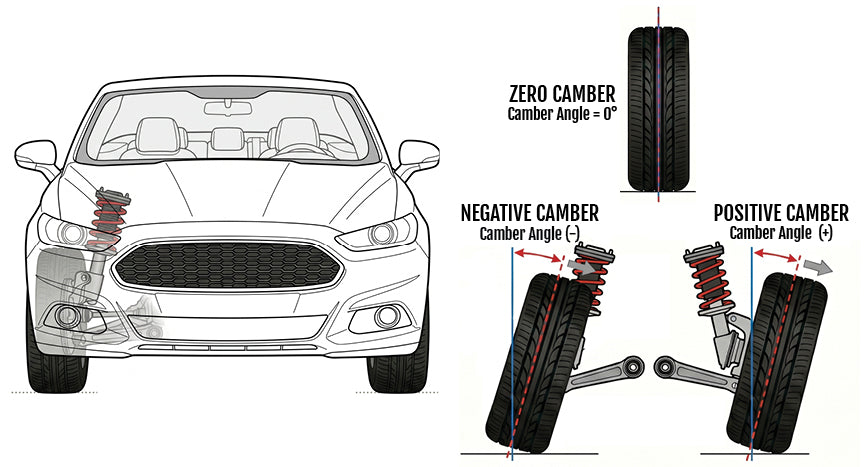

Camber is the tilt of the wheel relative to vertical, viewed from the front. Negative camber tilts the top of the wheel inward toward the car. Positive tilts it outward. Zero is true vertical. The gauge reads the angle directly from the wheel face in 1/2° increments across the full +6° to -6° range.
How Camber Angle Affects Tire Wear
Negative camber loads the inside edge of the tire. Positive camber loads the outside edge. Either extreme causes uneven wear and reduces the contact patch under braking. Most passenger vehicles run slight negative camber from the factory. Use this gauge to confirm you are back within spec after suspension work.
How caster is measured.
Why You Zero the Vial Before Measuring

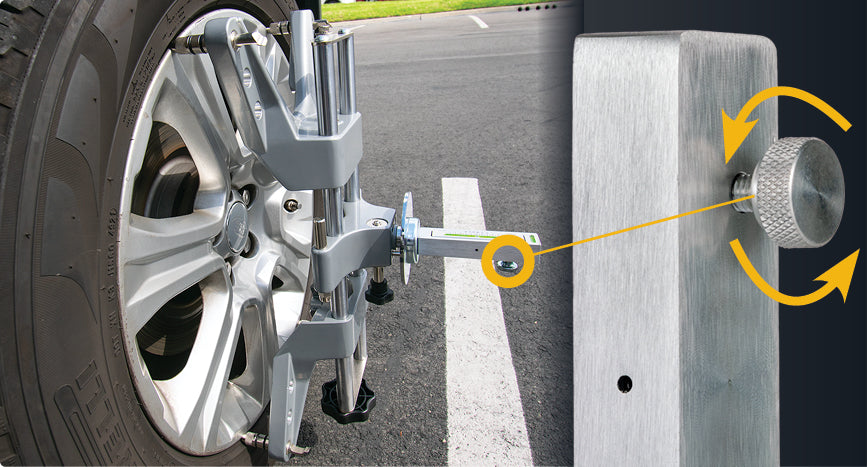

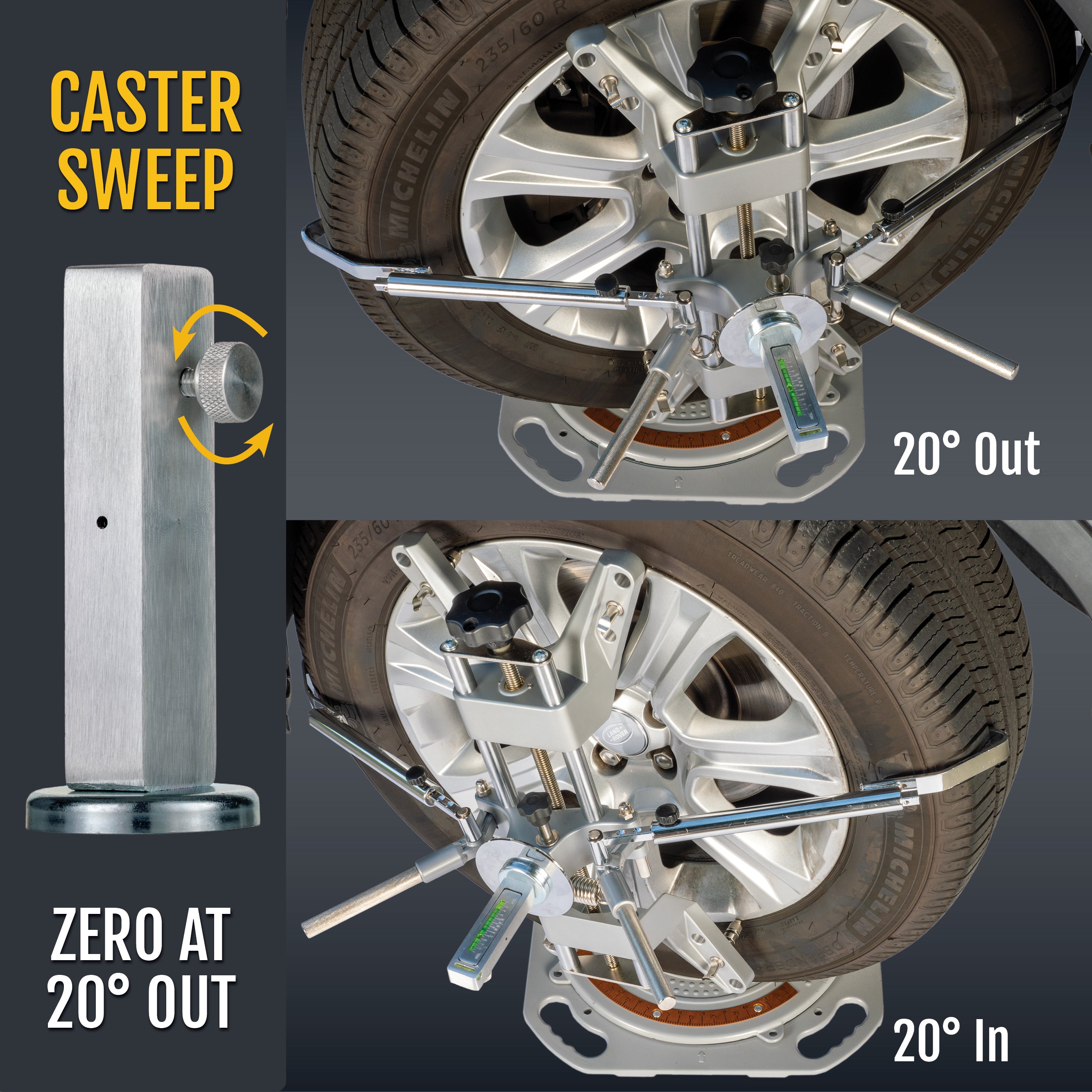

Caster requires two readings, not one. Turn the steering 20° inward and zero the calibration vial using the knob on the back of the gauge. Then sweep the wheel 20° outward. The amount the bubble deflects from zero is your caster reading. Without zeroing first, the second reading has no reference point.
What Caster Angle Does to the Car

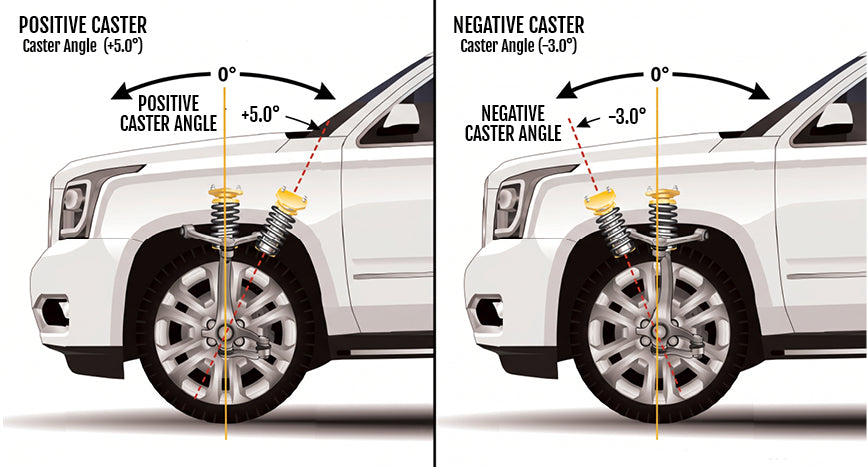

Caster is the forward or rearward tilt of the steering axis viewed from the side. Positive caster tilts the axis rearward. It increases straight-line stability and returnability after a turn. Negative caster reduces steering effort but destabilizes the vehicle. Most road vehicles run 3° to 8° positive caster from the factory.
The gauge, spec by spec.

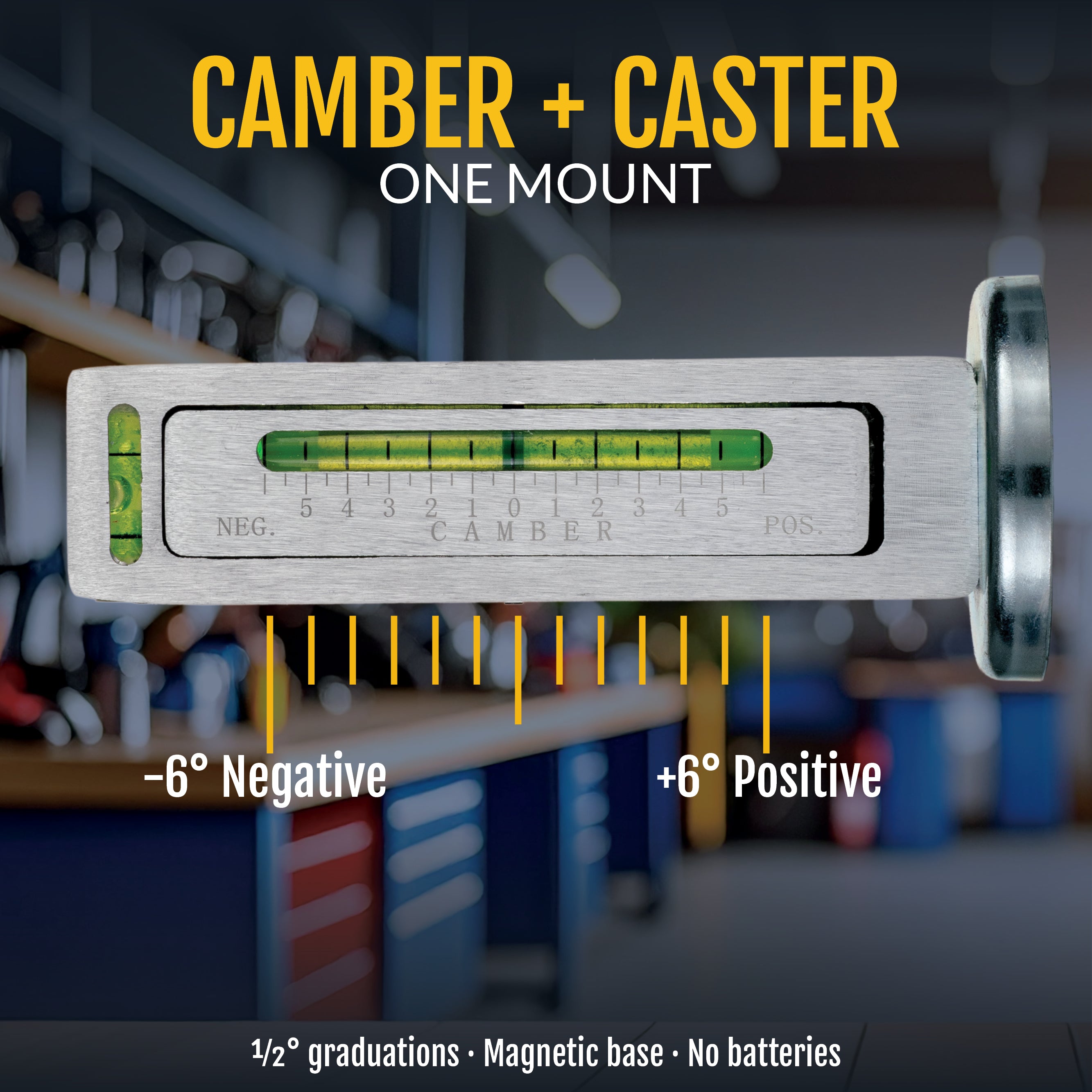

Camber and caster. No batteries. One adjustable vial.
Measurement Range
+6° to -6° full range for both camber and caster.
Graduation
1/2° (0.5°) increments across the full scale.
Measurement Angles
Camber and caster. Two angles from a single mount.
Display Type
Analog bubble vial. No batteries, no electronics, no screens.
Calibration
Adjustable zero knob on the back of the gauge. Set the reference level before each session.
Mount Type

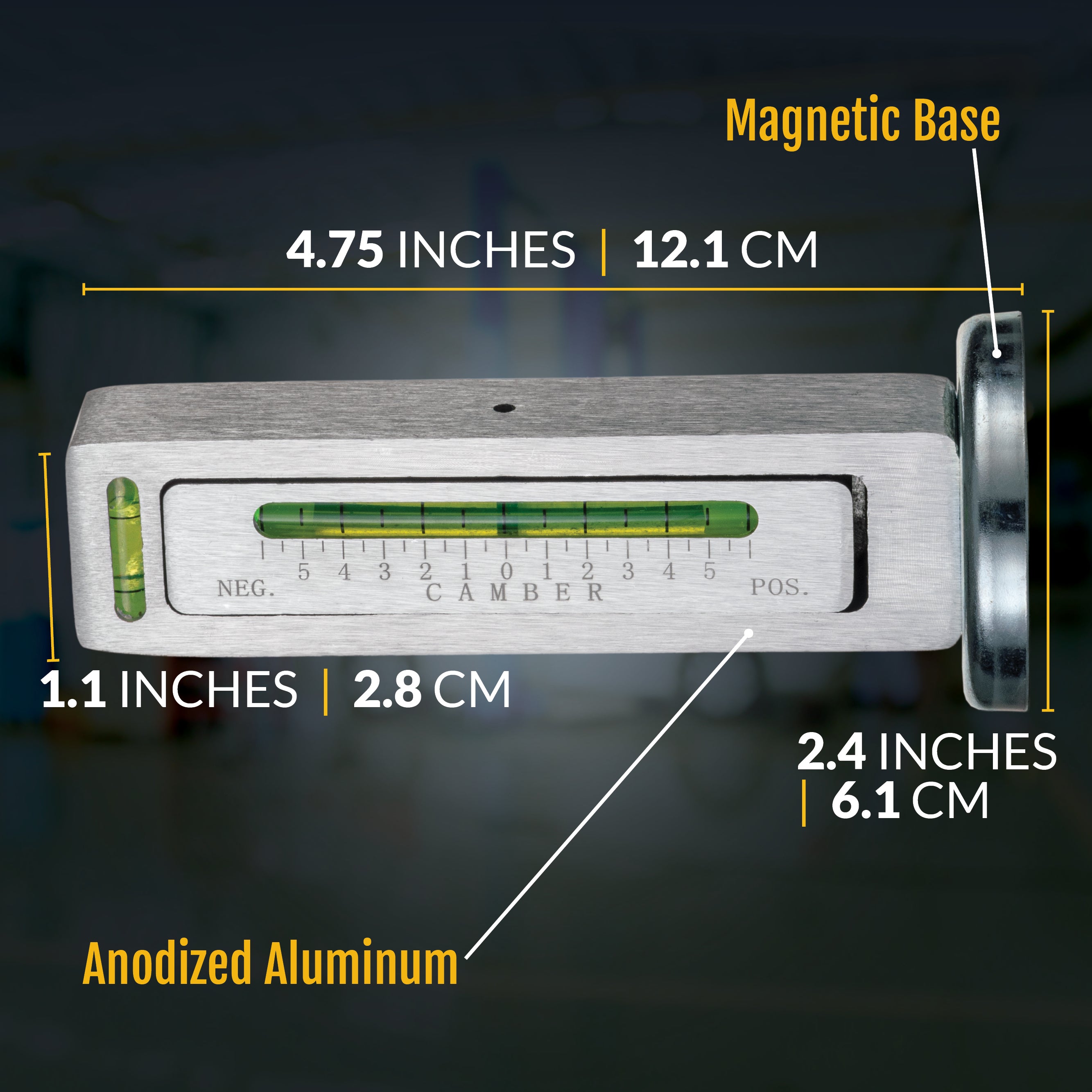

Magnetic base. Seats directly on cast iron wheel hubs and brake rotors.
Compatible Tools

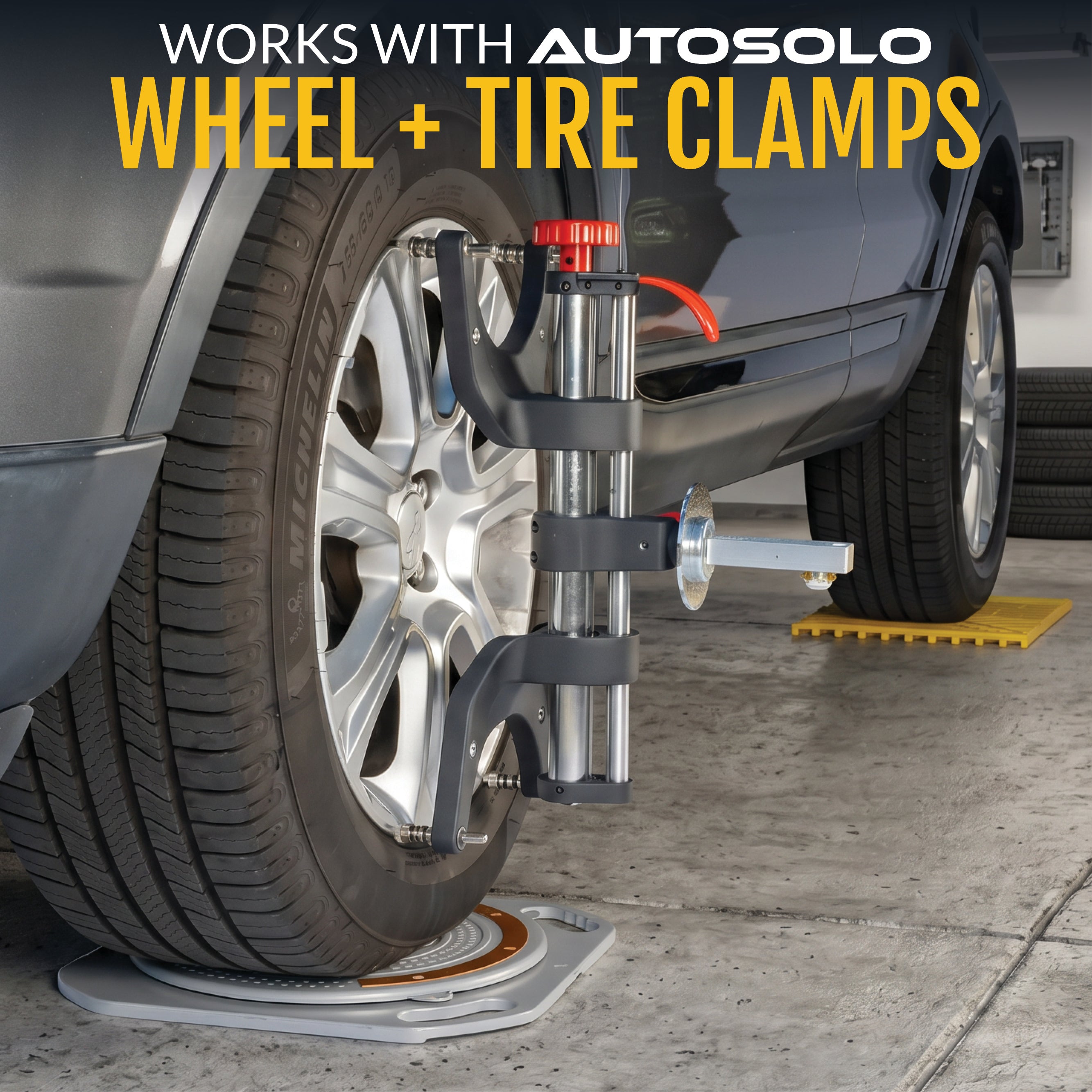

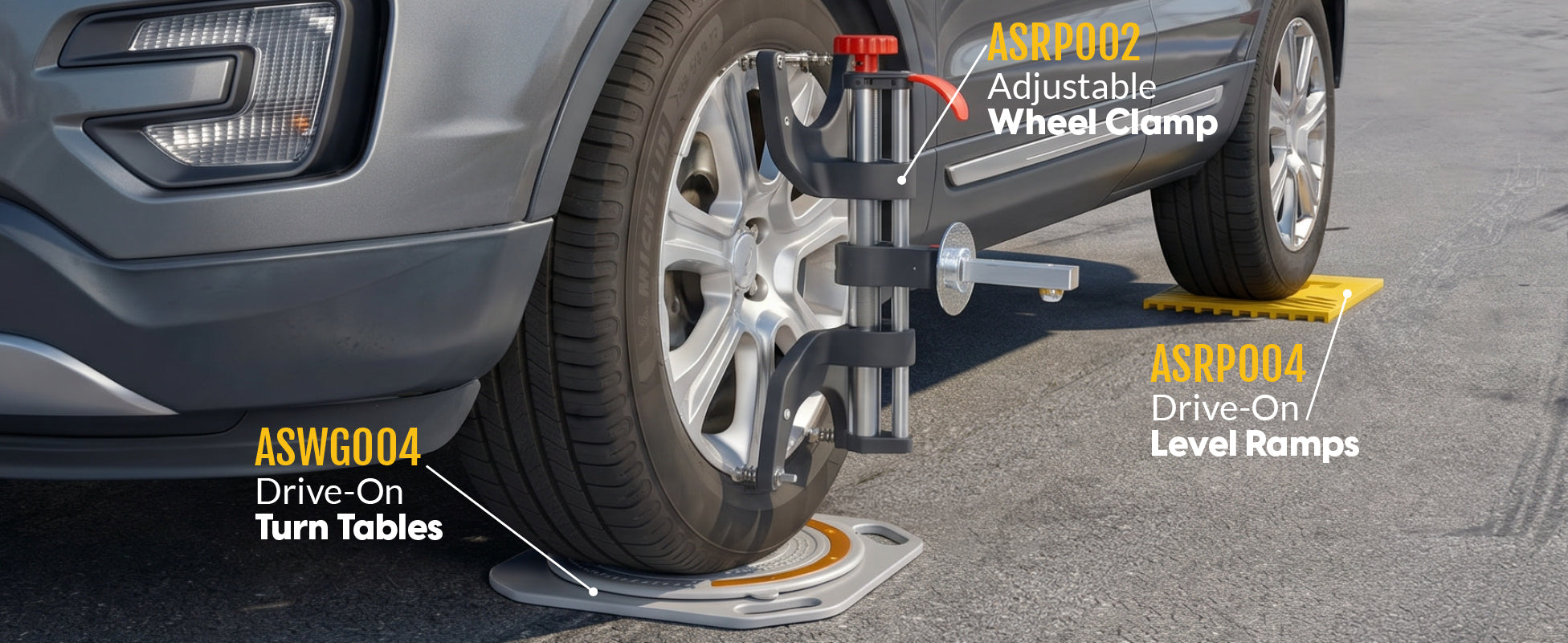

Fits the ASWG001 wheel clamp and ASWG001 extension kit. Works across the full AutoSolo alignment system.
Housing
Brushed anodized aluminum. No plastic shell, no electronics to fail.
Caster Procedure
Two-position sweep: steer 20° inward, zero the vial, sweep 20° outward. Bubble deflection is the caster reading.
What Is Included

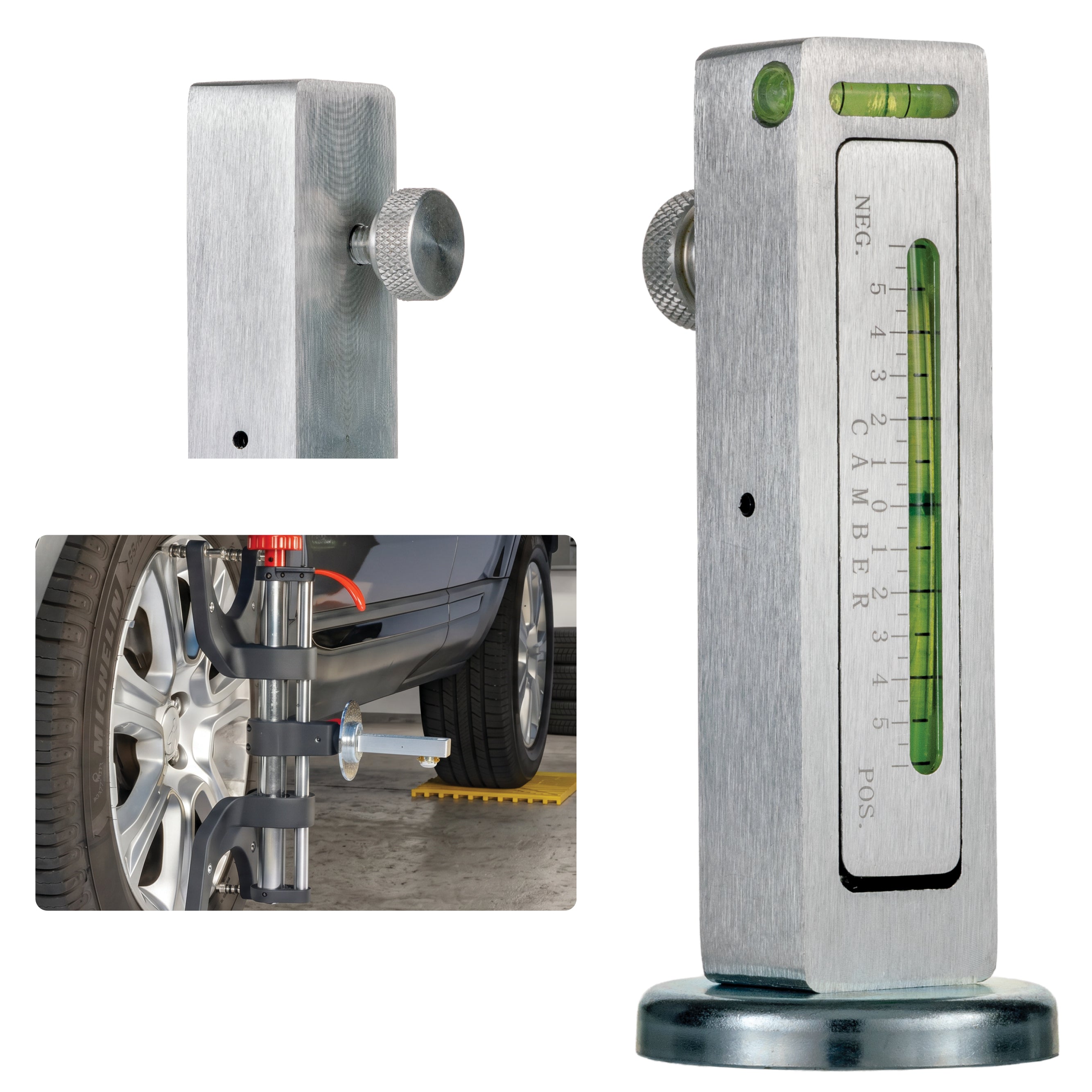

1x ASCGAL magnetic camber caster gauge with adjustable calibration vial.
Tools you can rely on. Support you can reach.
Used by DIYers & Professionals
Trusted by mechanics, enthusiasts, and builders worldwide for consistent alignment results.
Tested in Real Workshops
Used and reviewed by automotive creators and alignment specialists across platforms.
Backed by U.S. Support
Get fast help, product guidance, and expert support from our U.S.-based team.
1-Year Replacement Support
If any manufacturing defects occur, our team will provide prompt support and replacement.
