BUILD YOUR ALIGNMENT KIT

Pick your tools step by step. Only pay for what you need.

Save up to 9% OFF total order value! Add more steps, accessories & multi-packs to unlock bigger discounts.
1 Clamp
2 Gauge
3 Turn Plates
4 Accessories

STEP 1: CHOOSE YOUR CLAMP

The clamp attaches to your wheel so you can mount a gauge. Choose the style that fits your setup.

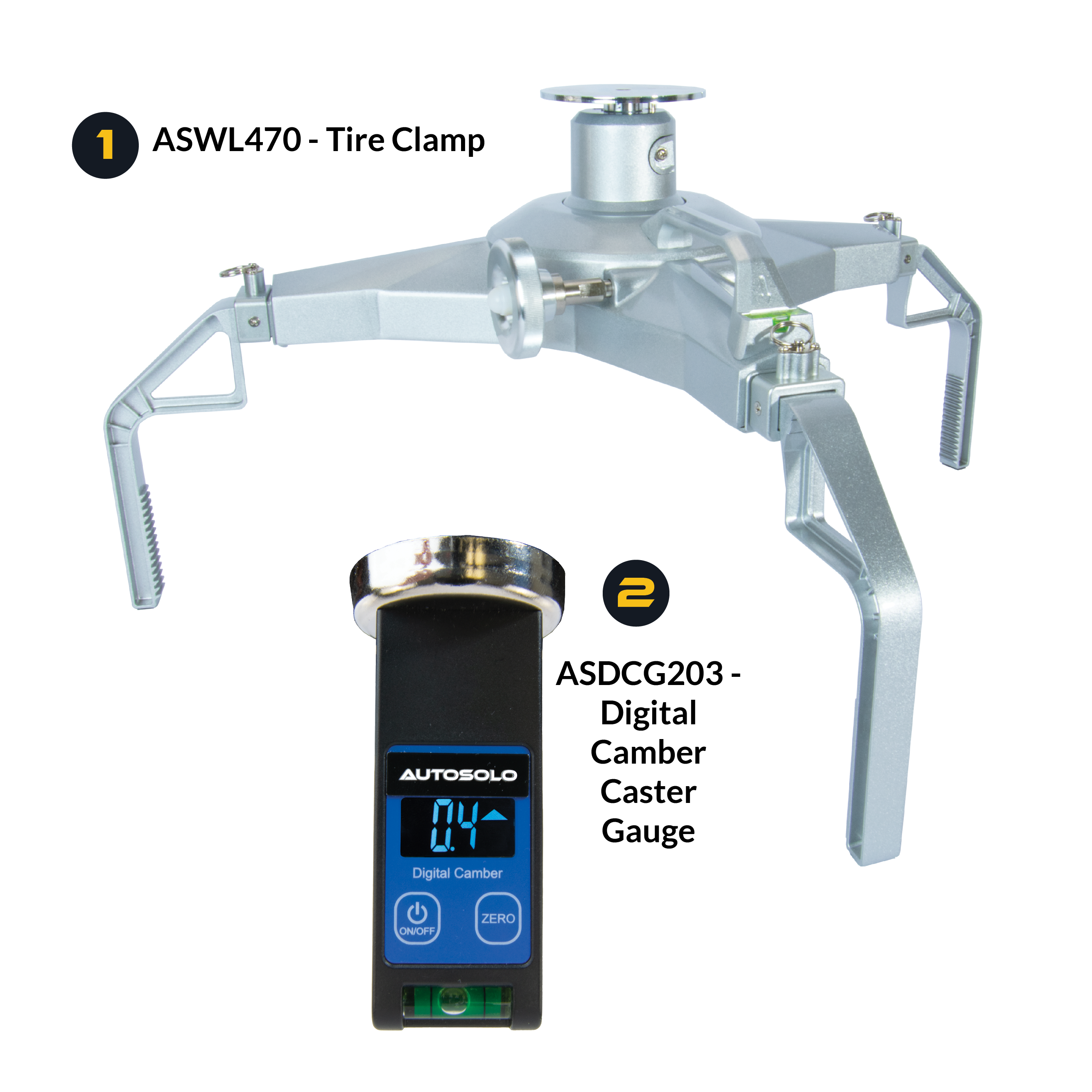

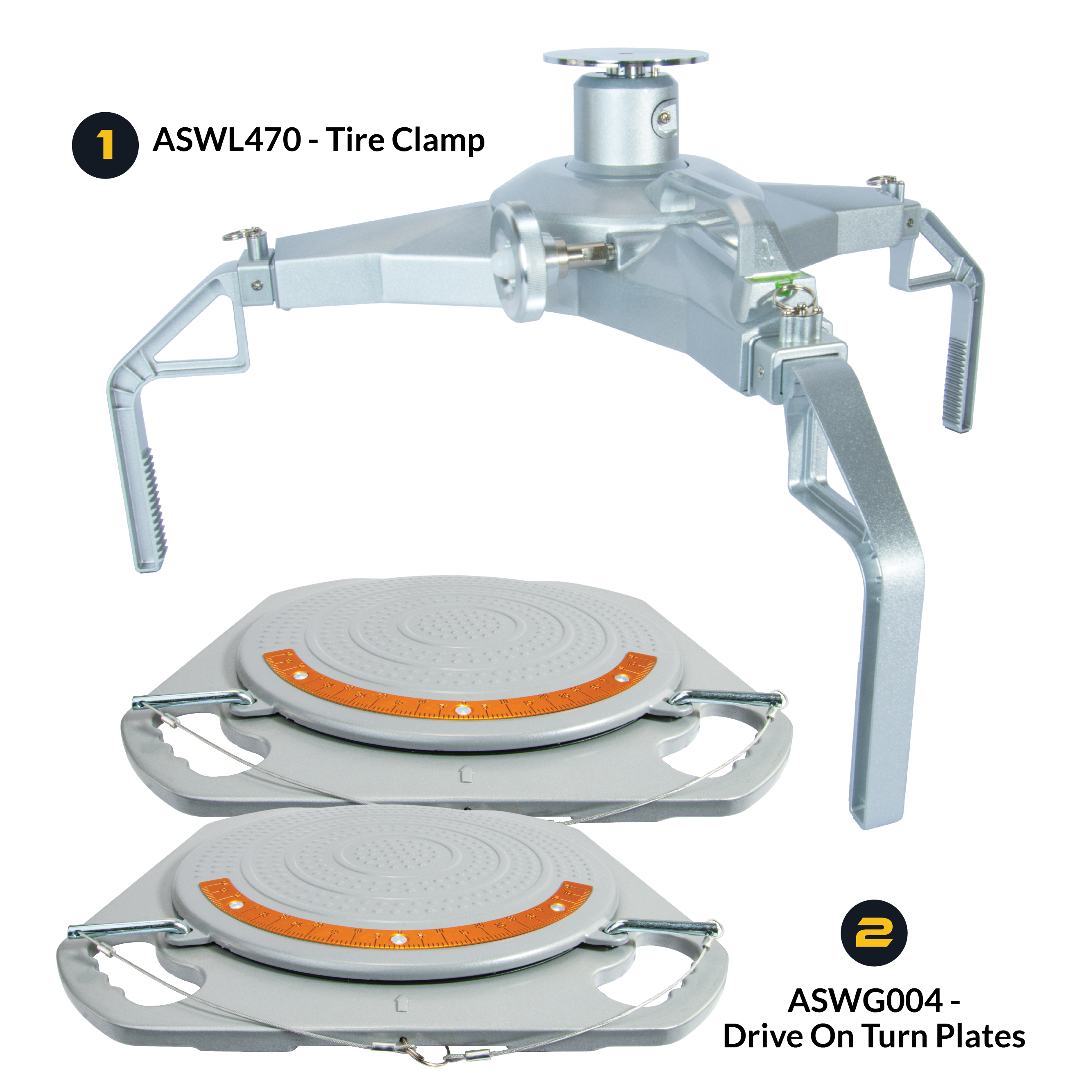

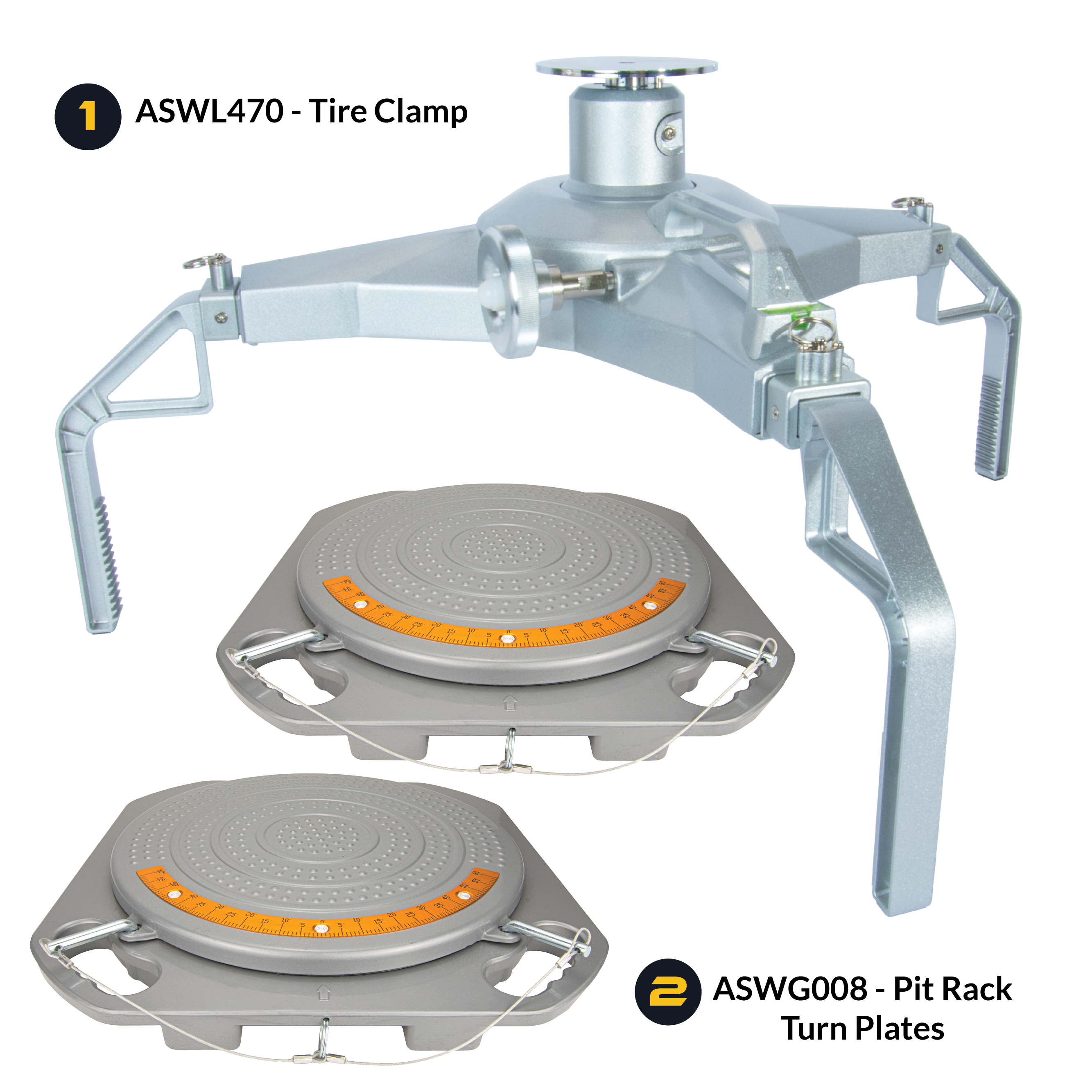

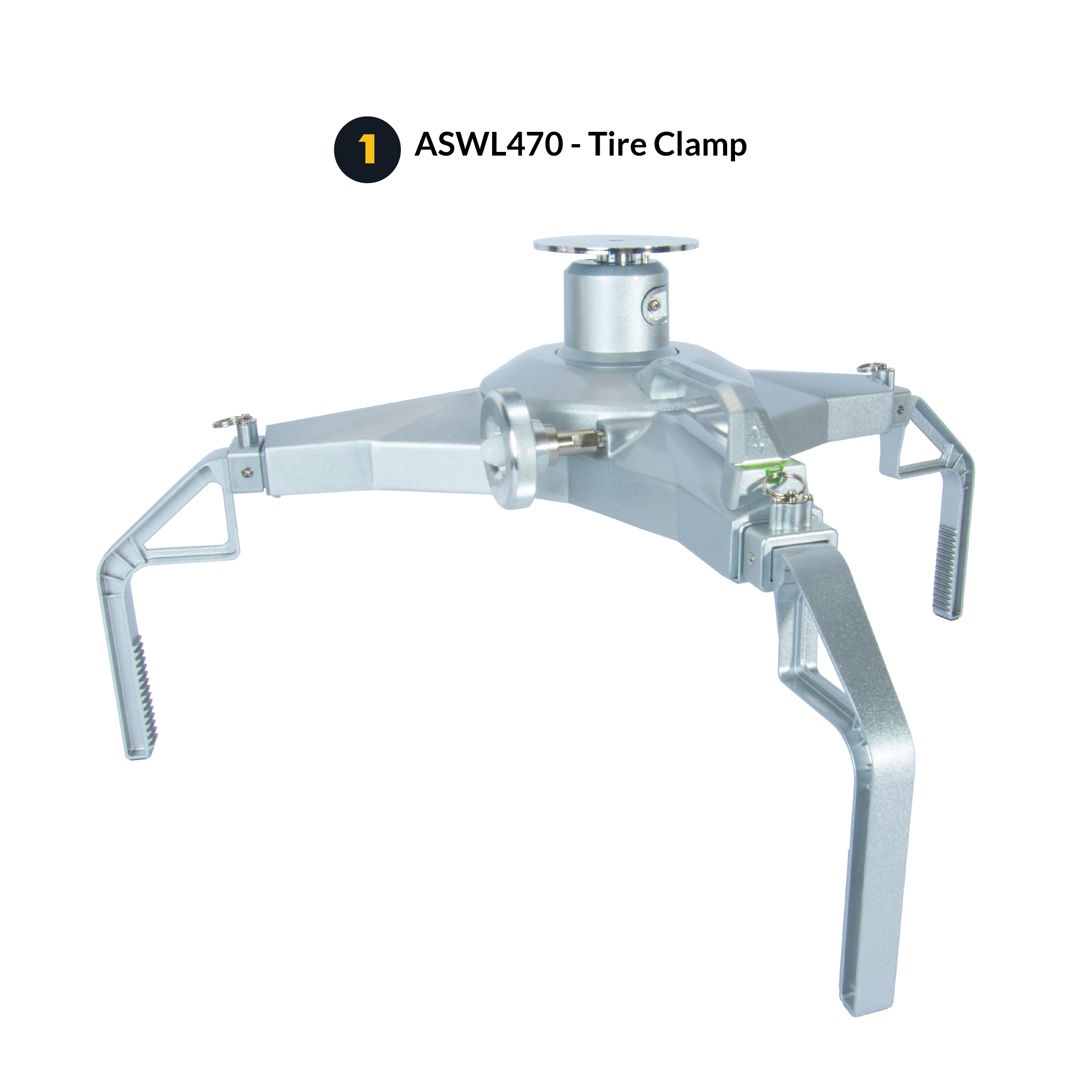

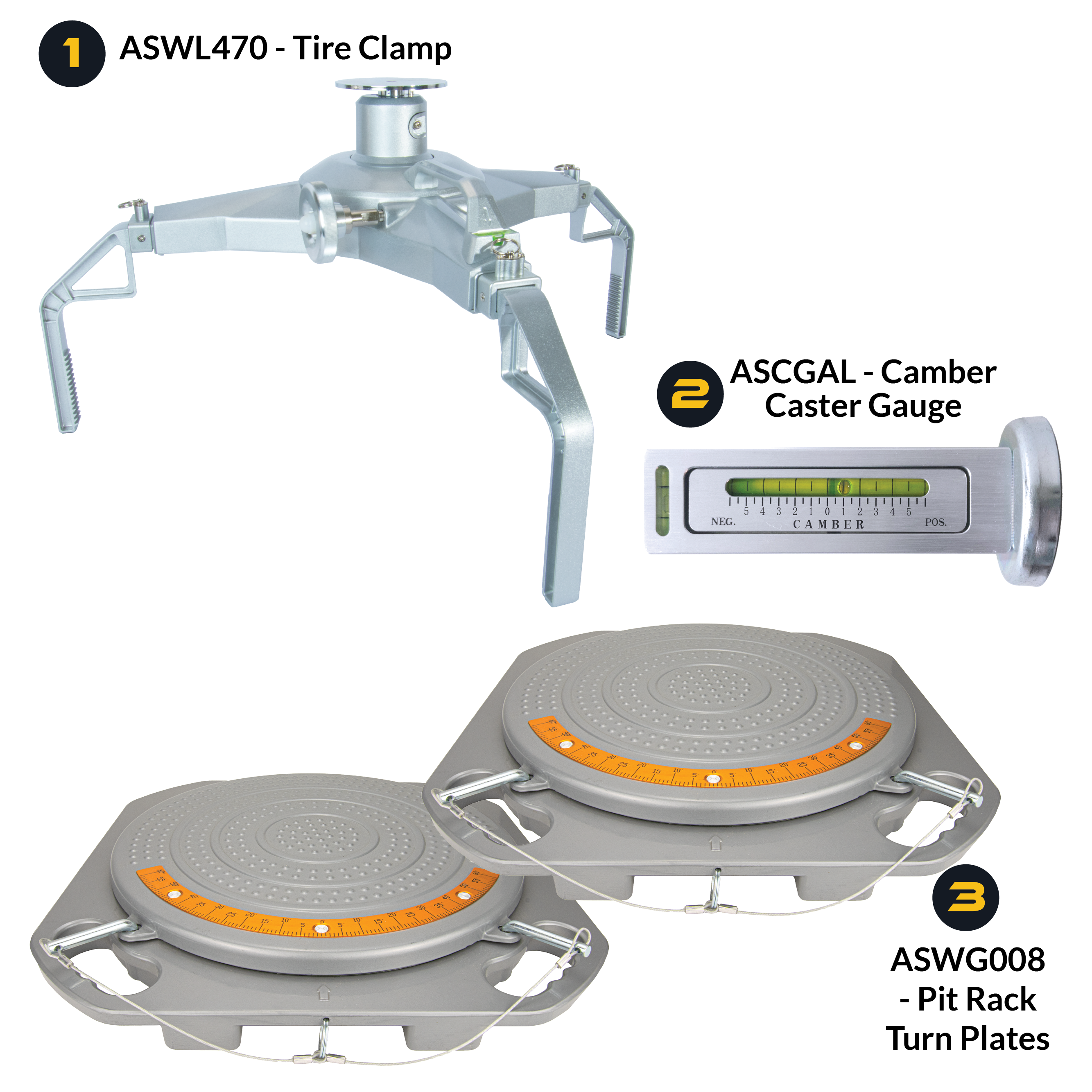

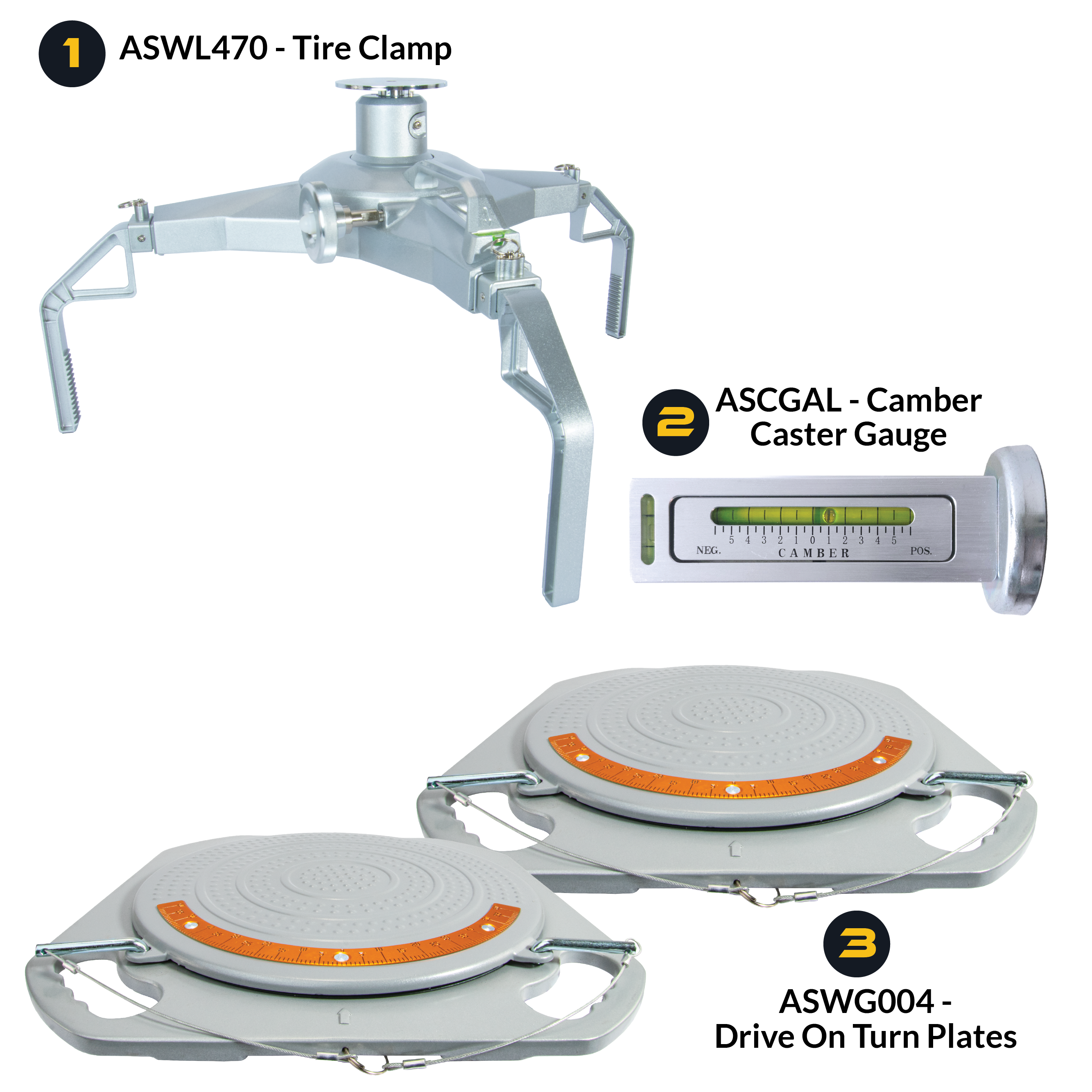

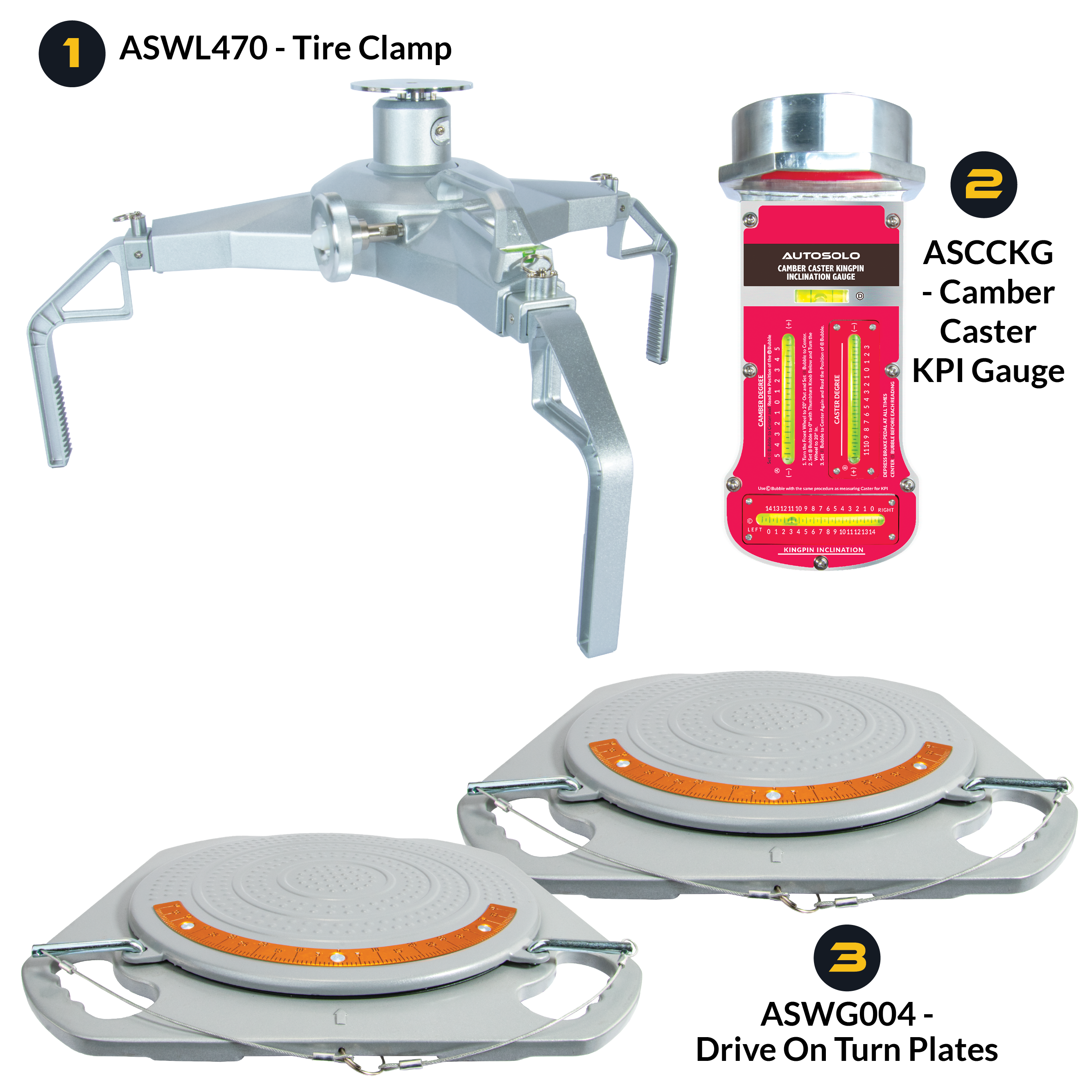

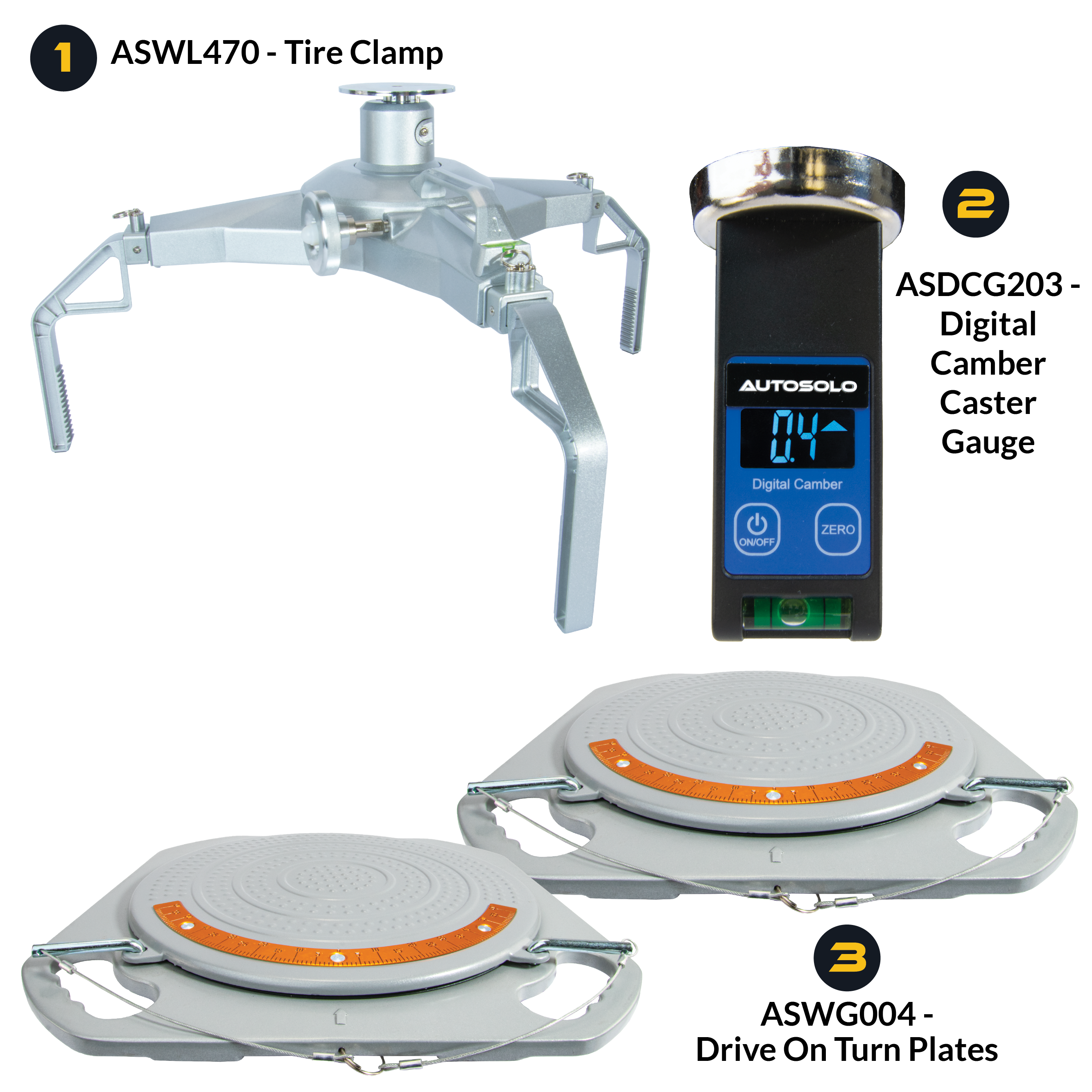

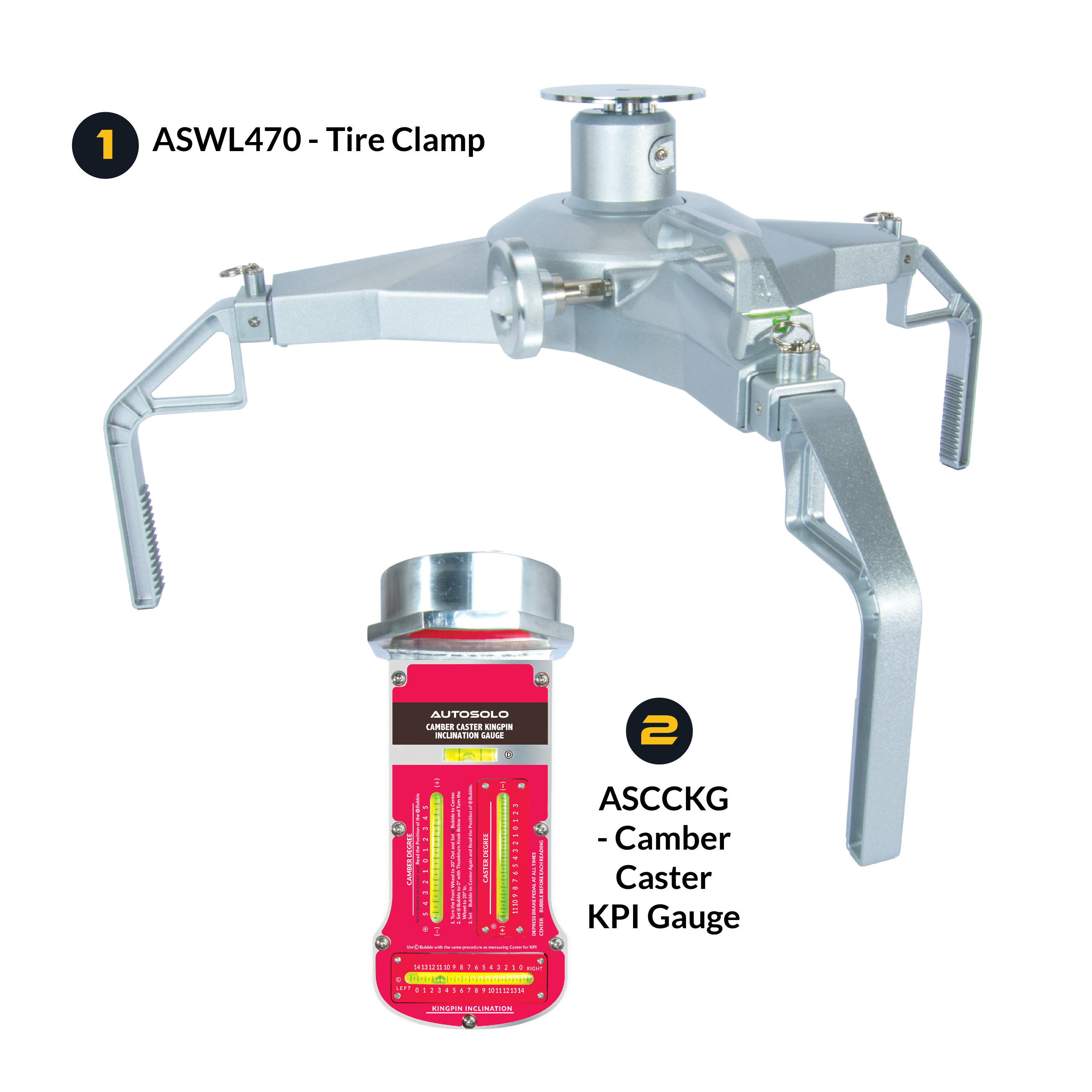

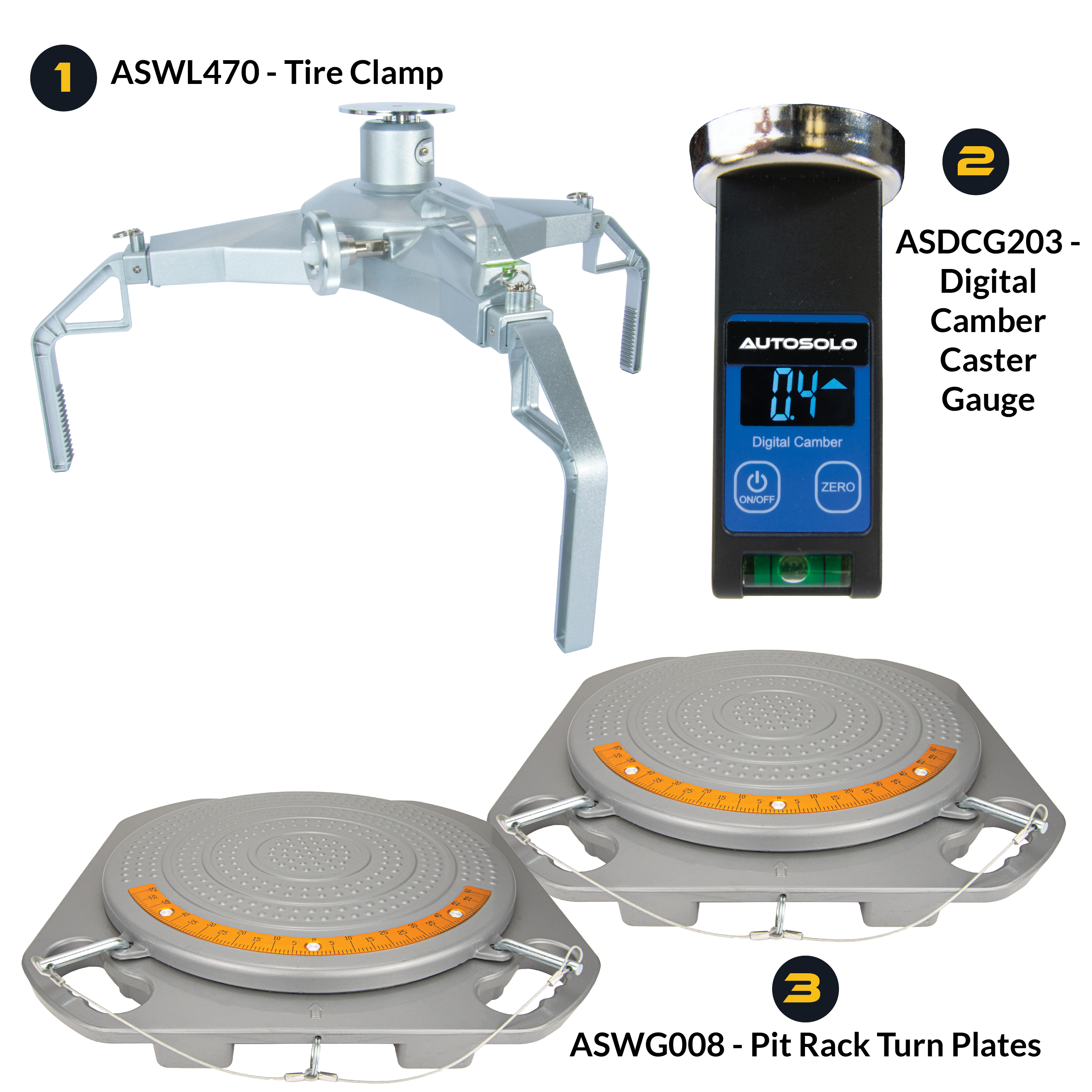

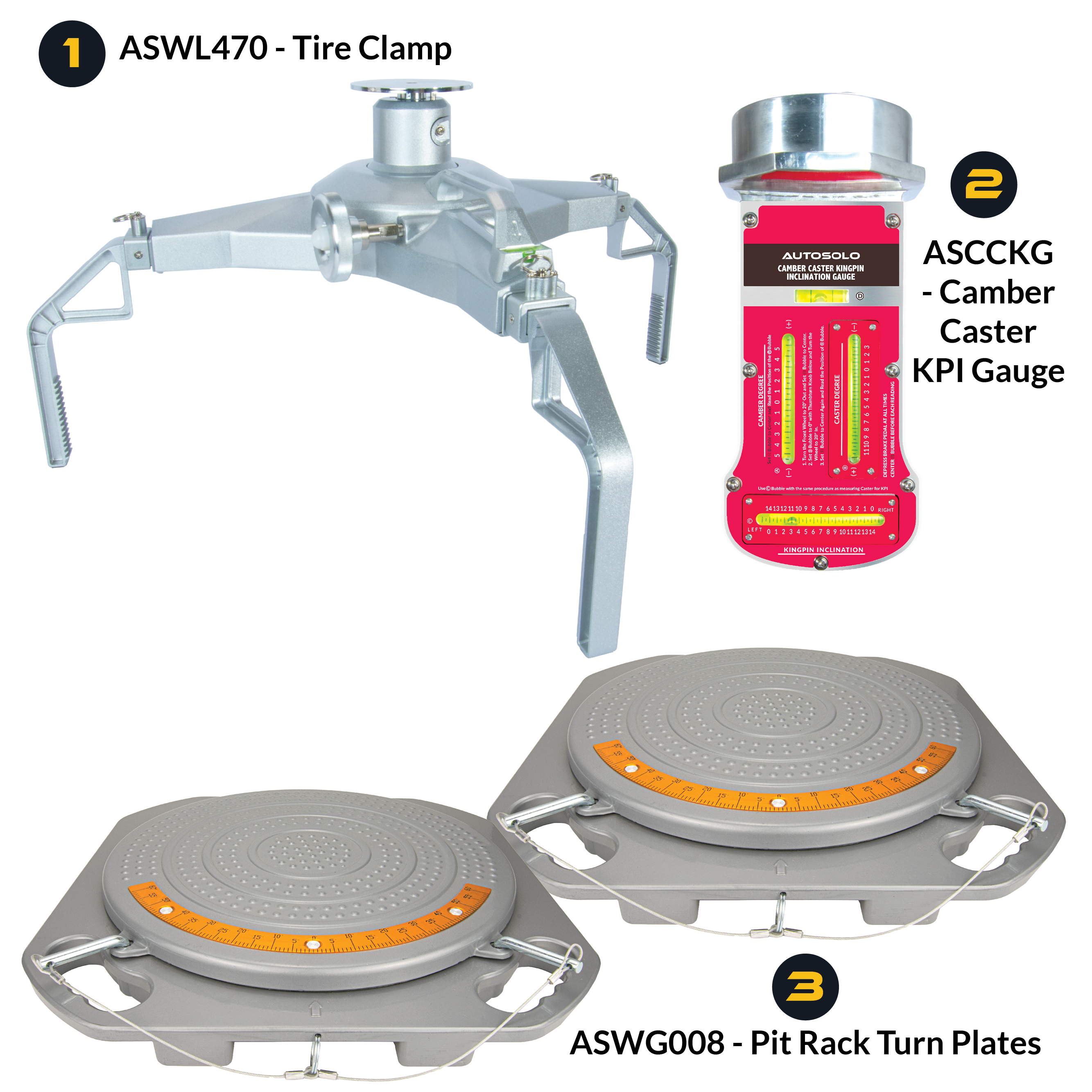

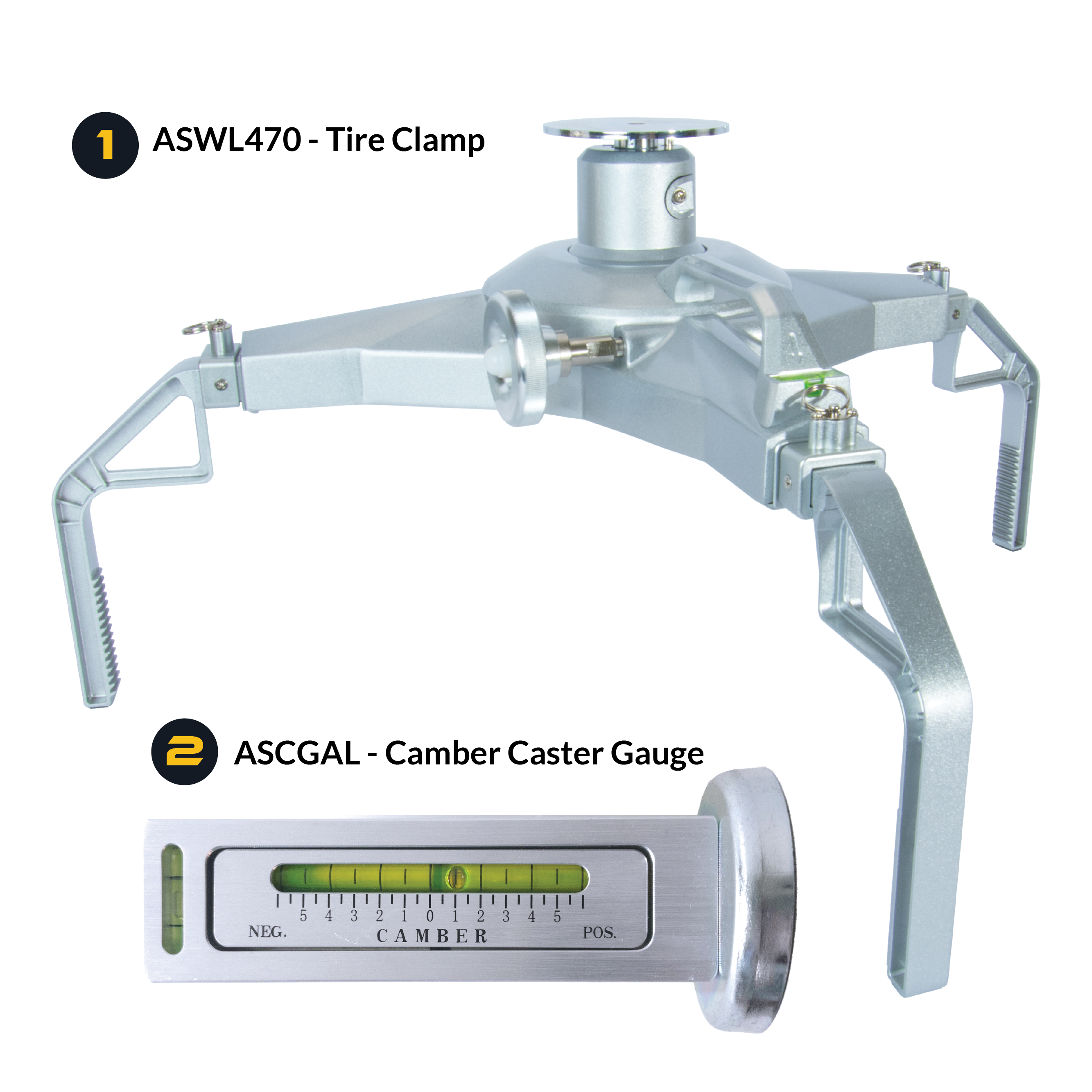

Tire Clamp
ASWL470

Tire Clamp

Calibration-grade clamp that grips the tire tread. Suited to quick, convenient attachment.

From $199.95
How many?

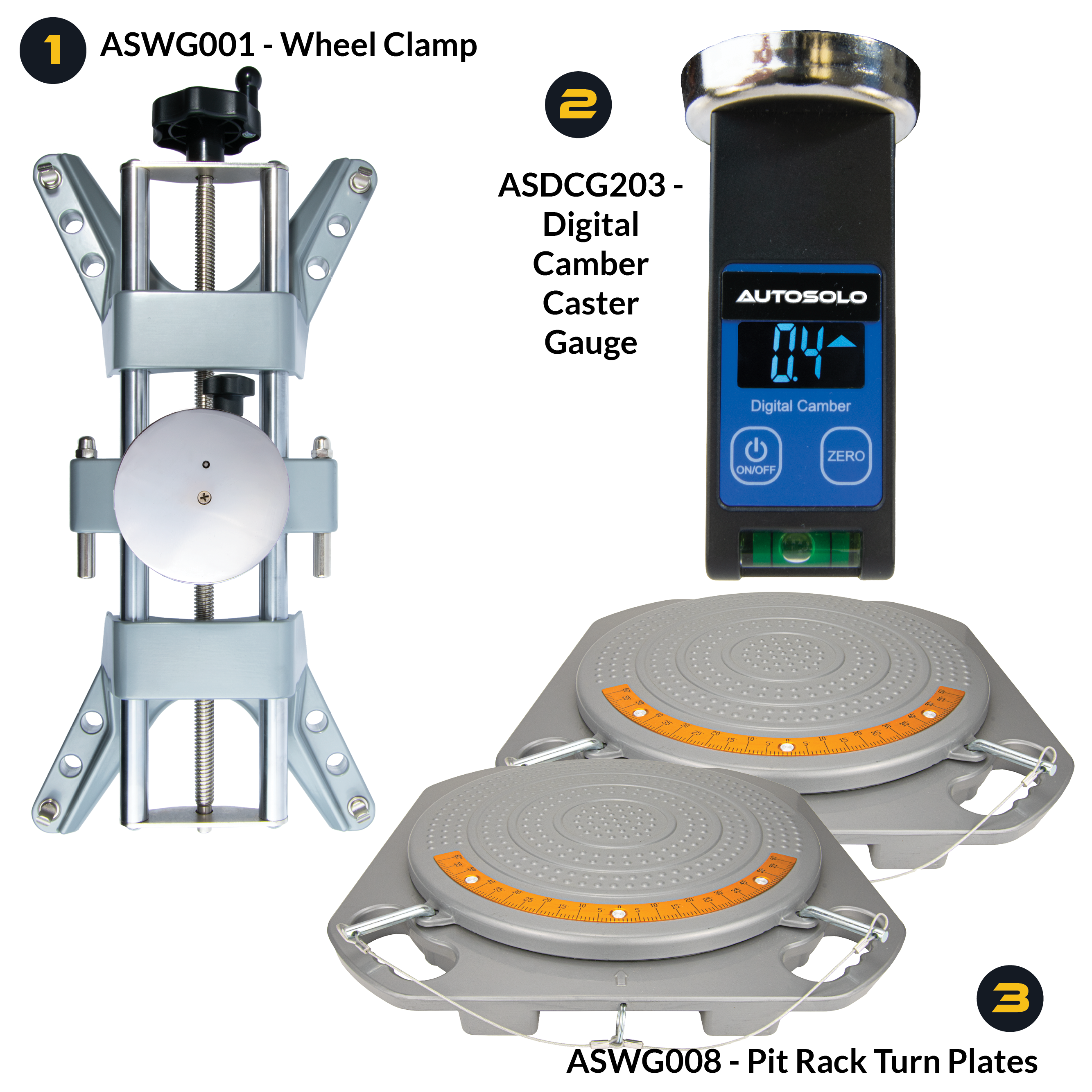

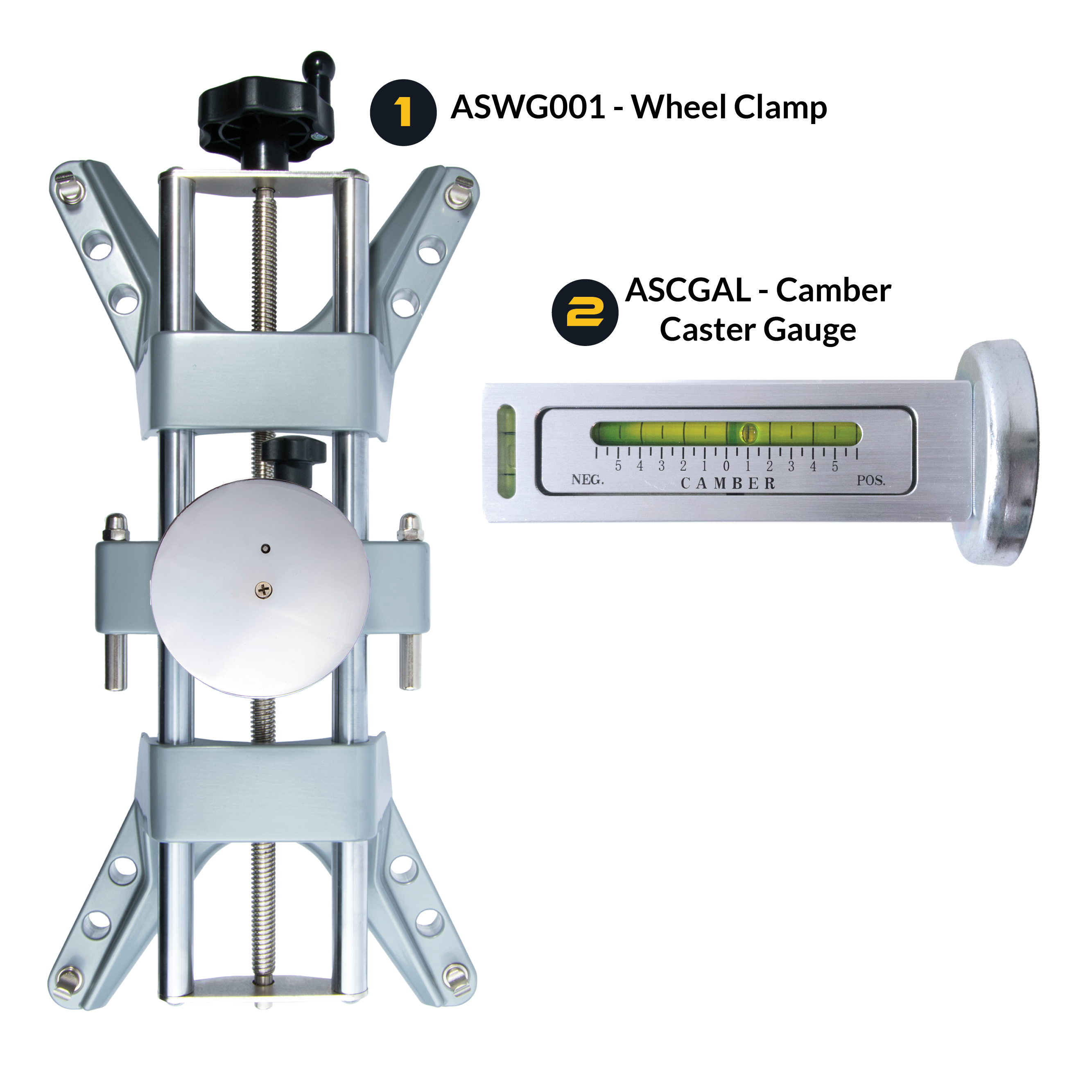

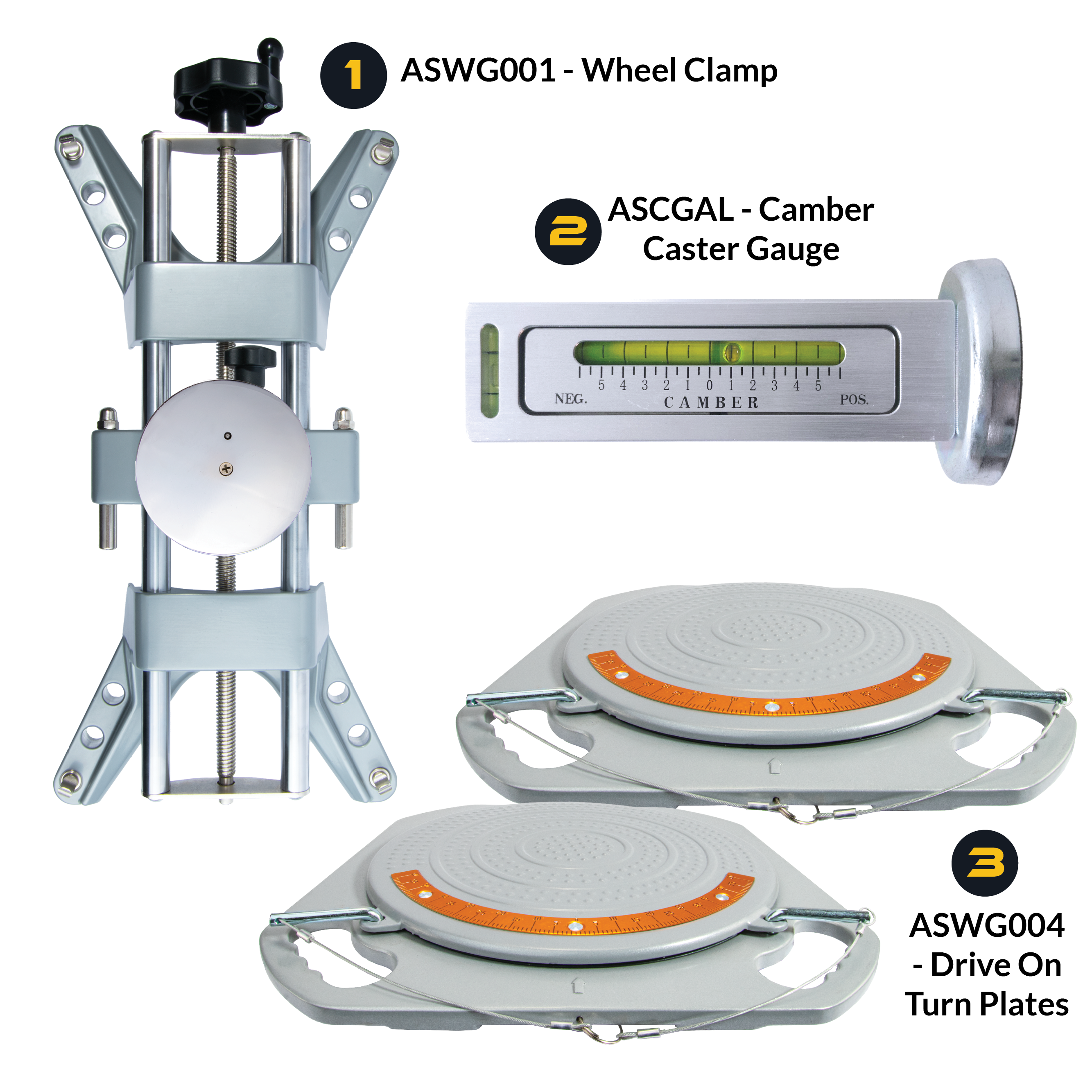

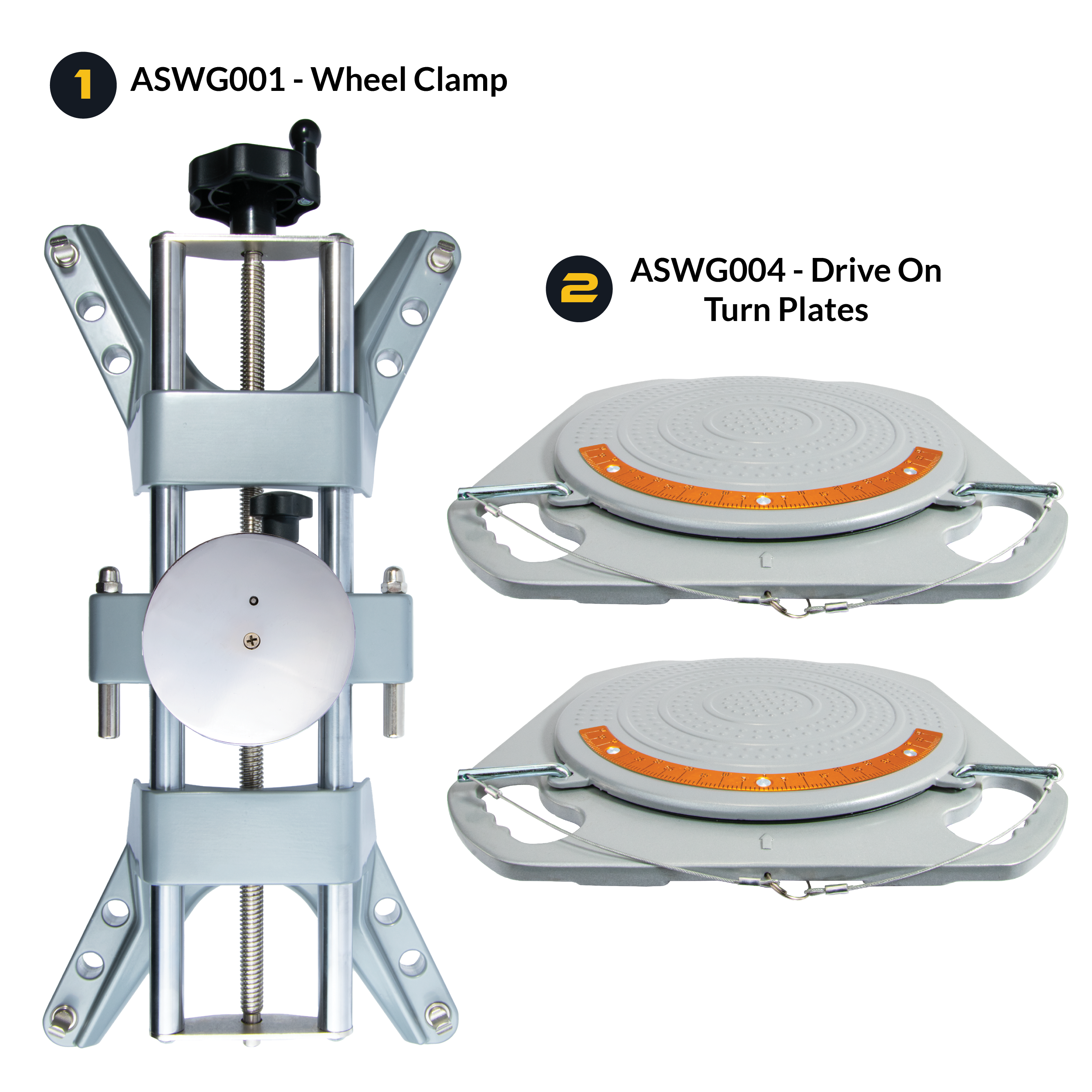

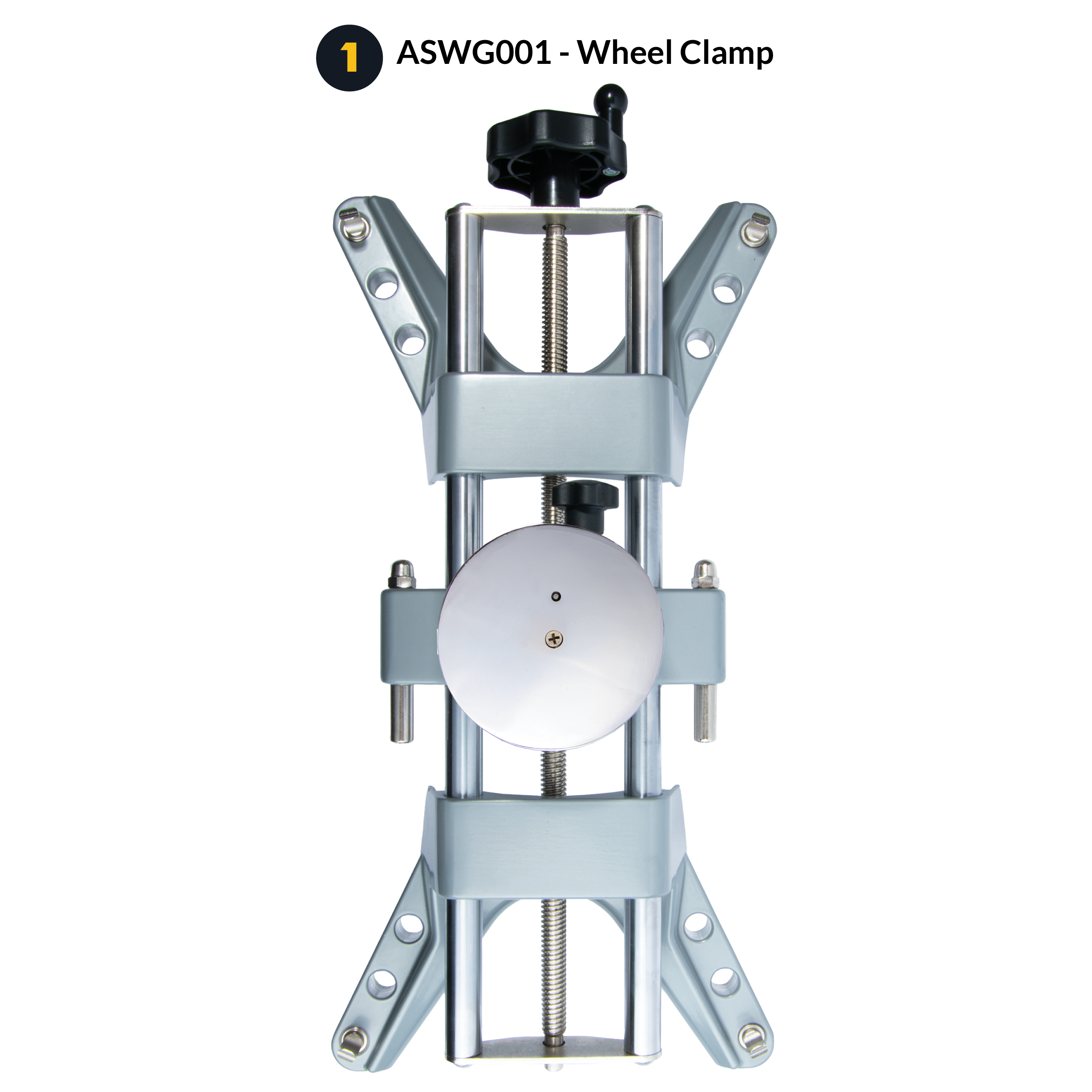

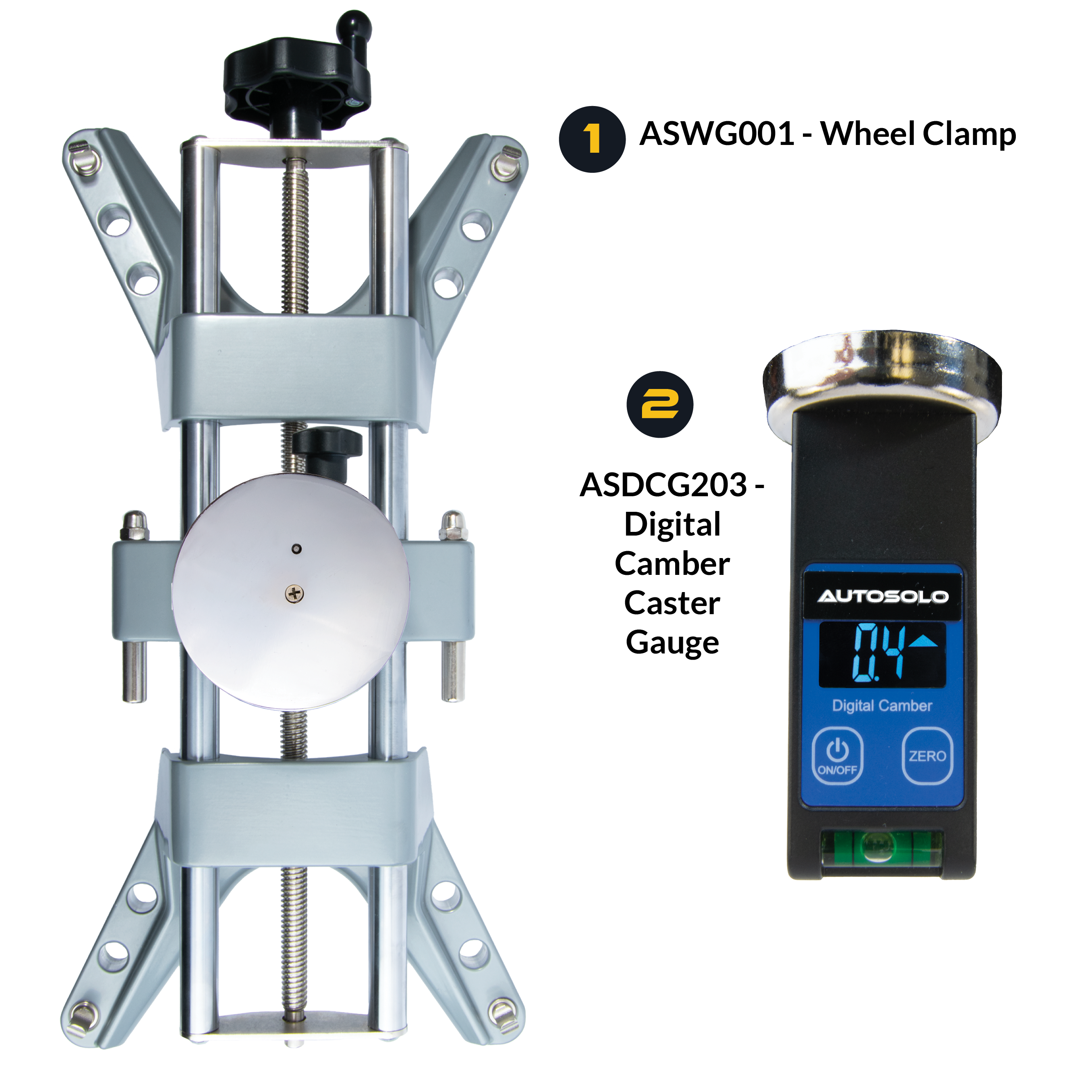

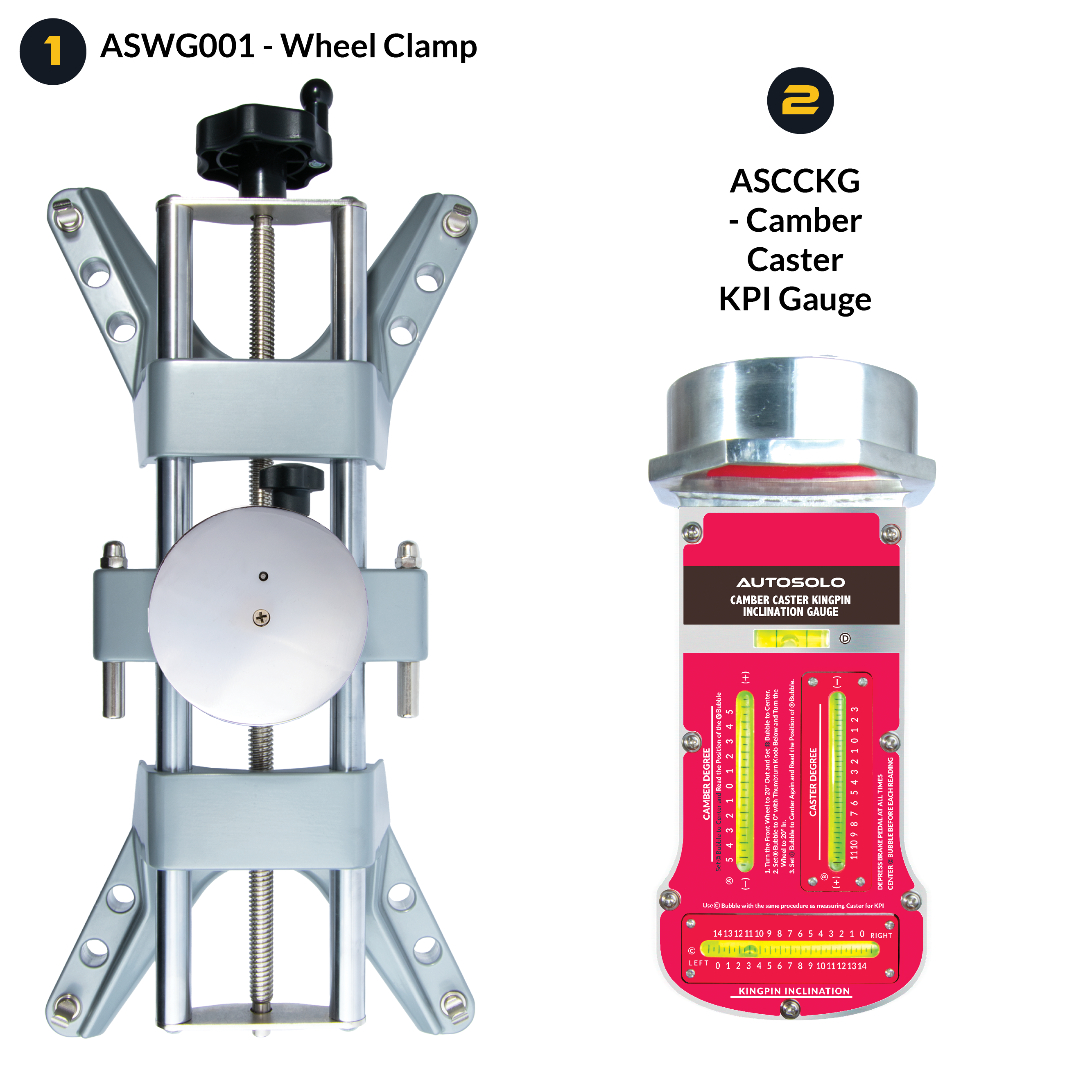

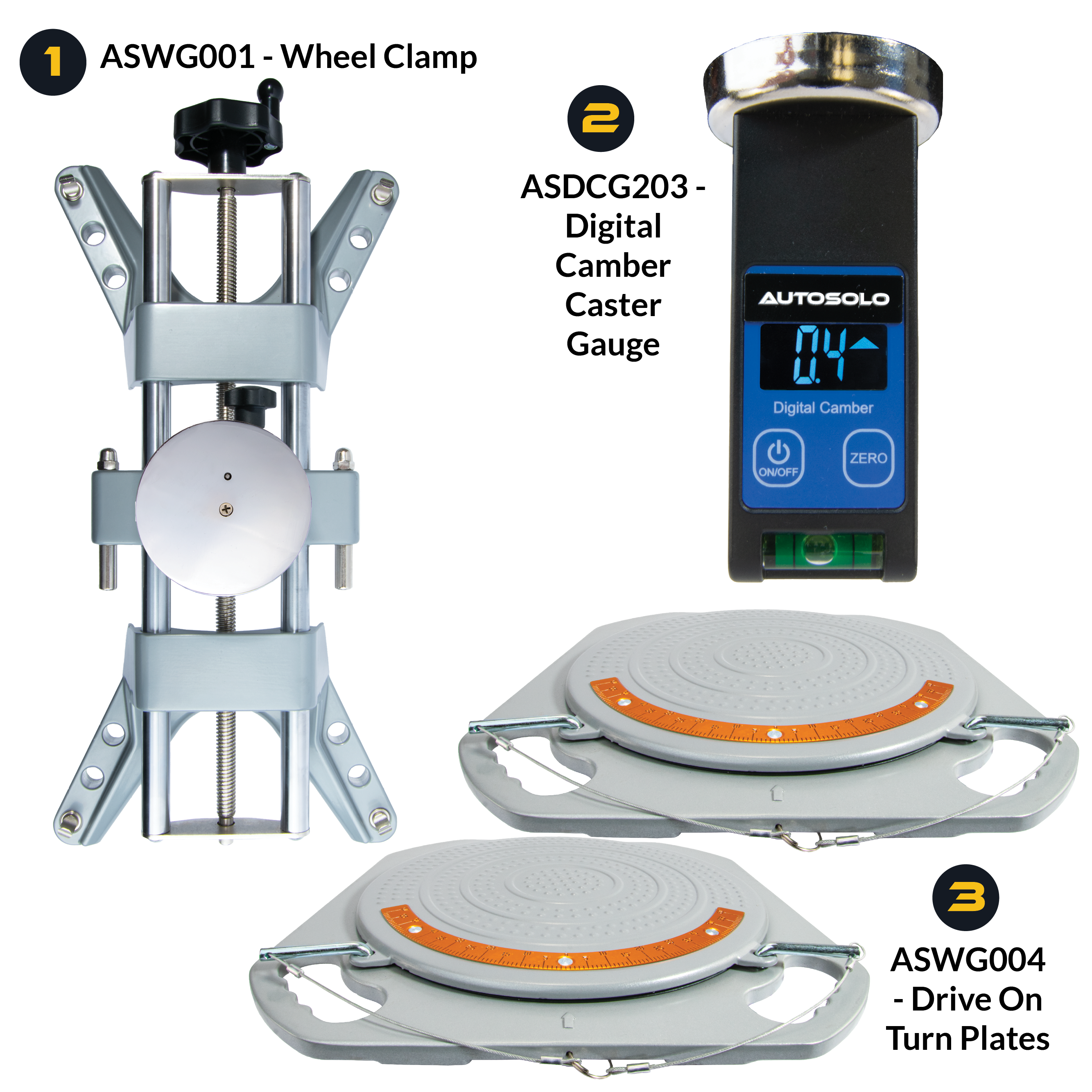

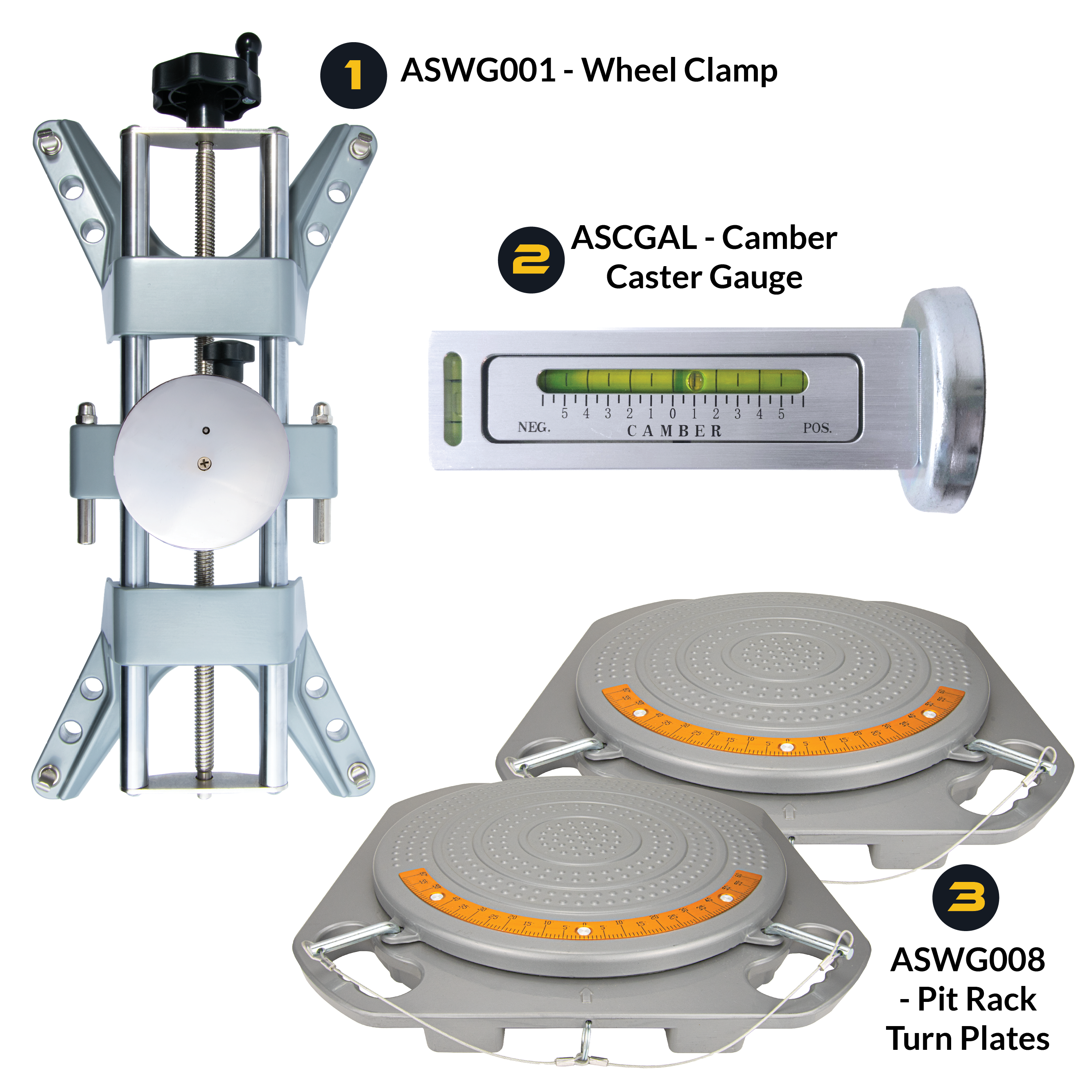

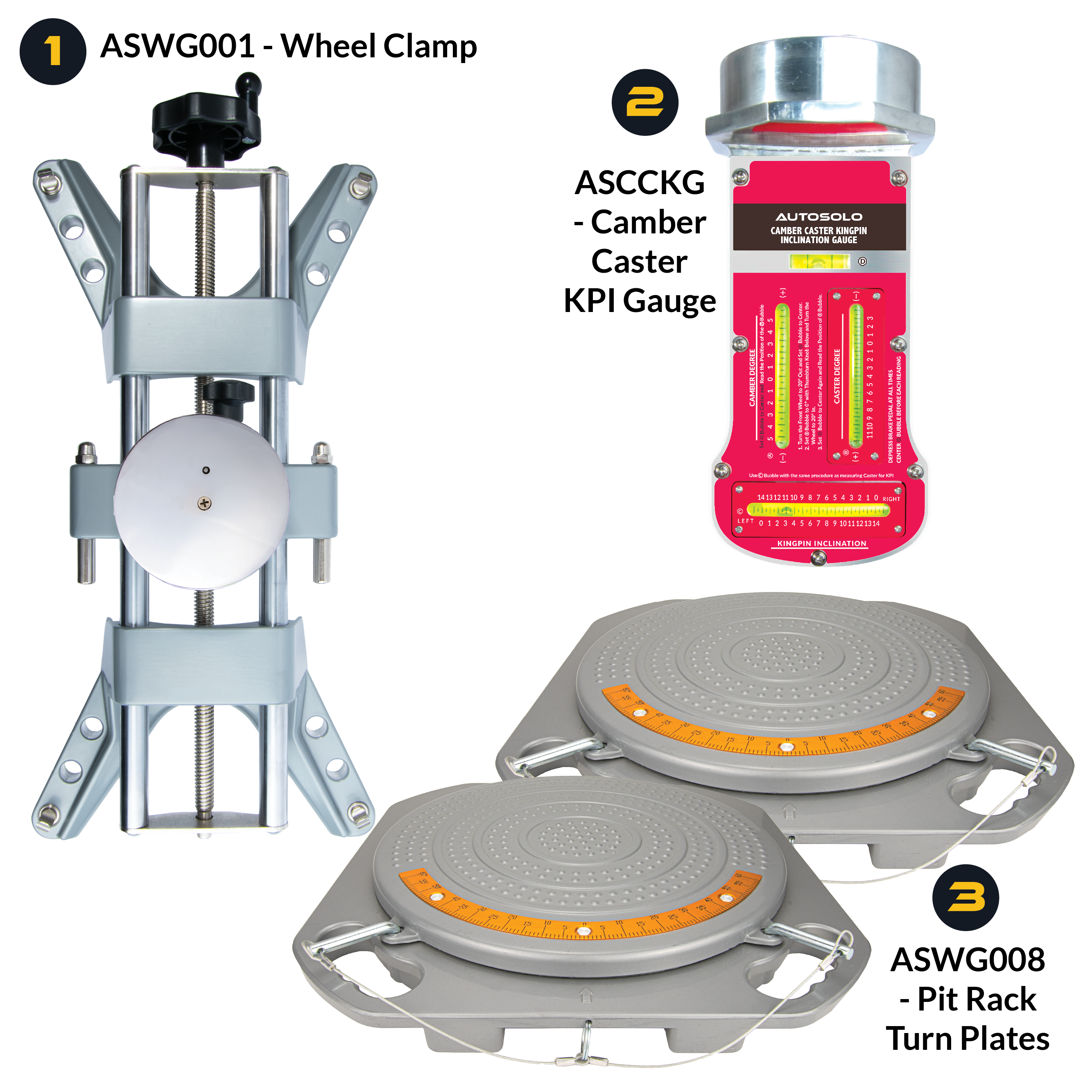

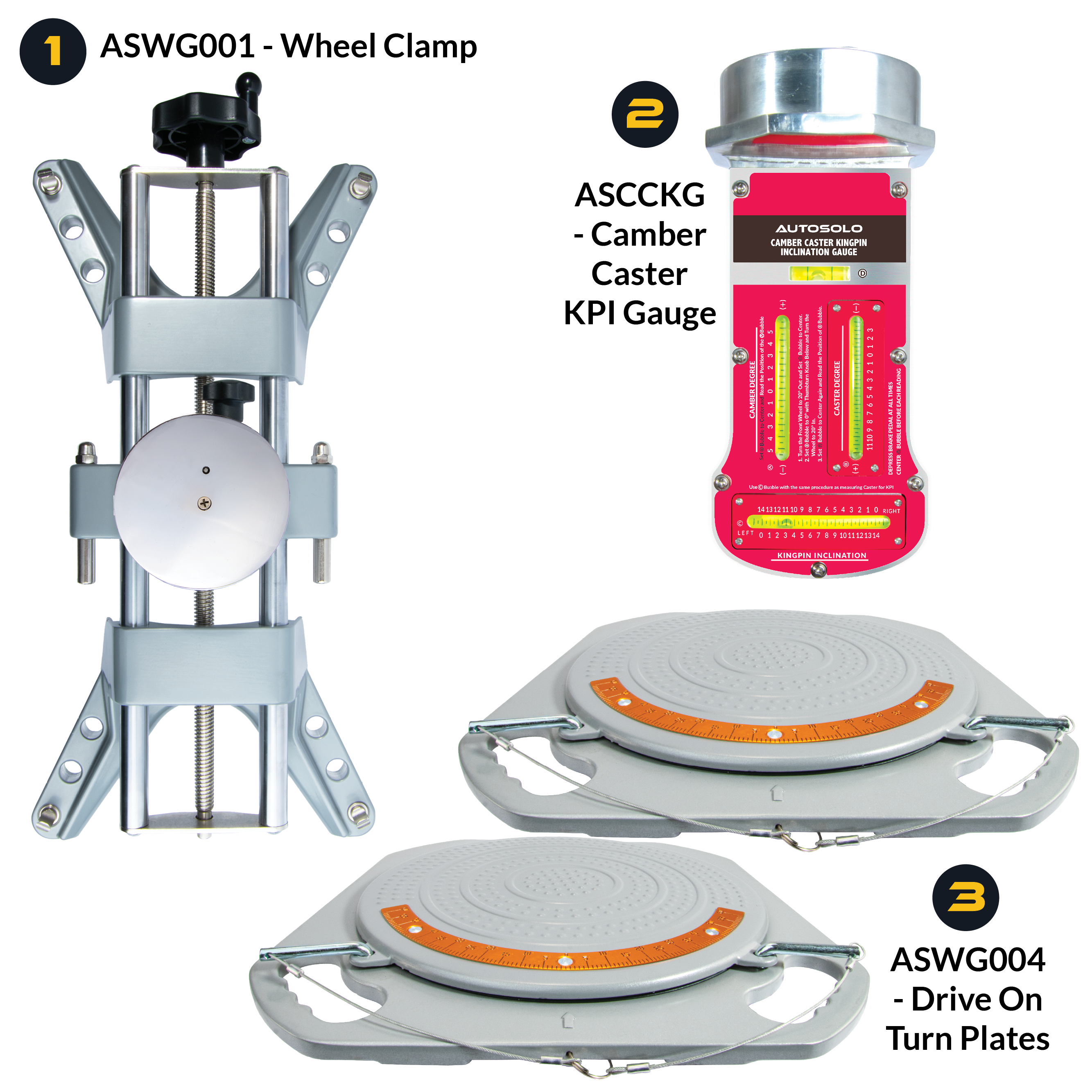

Wheel (Rim) Clamp
ASWG001

Essentials Wheel Clamp

3D DSP clamp that grips the wheel rim with magnetic adapter. Great all-around choice.

From $109.95
How many?

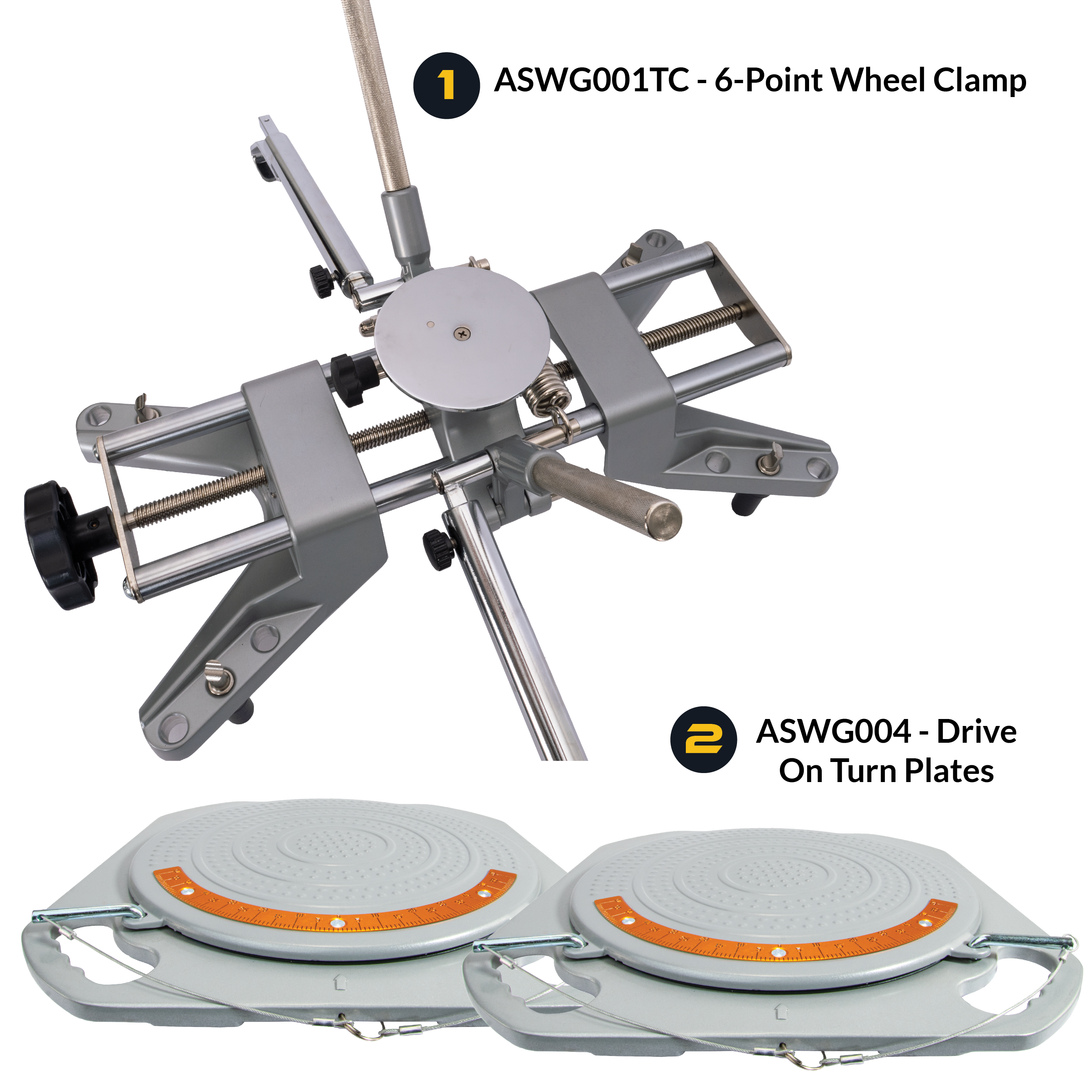

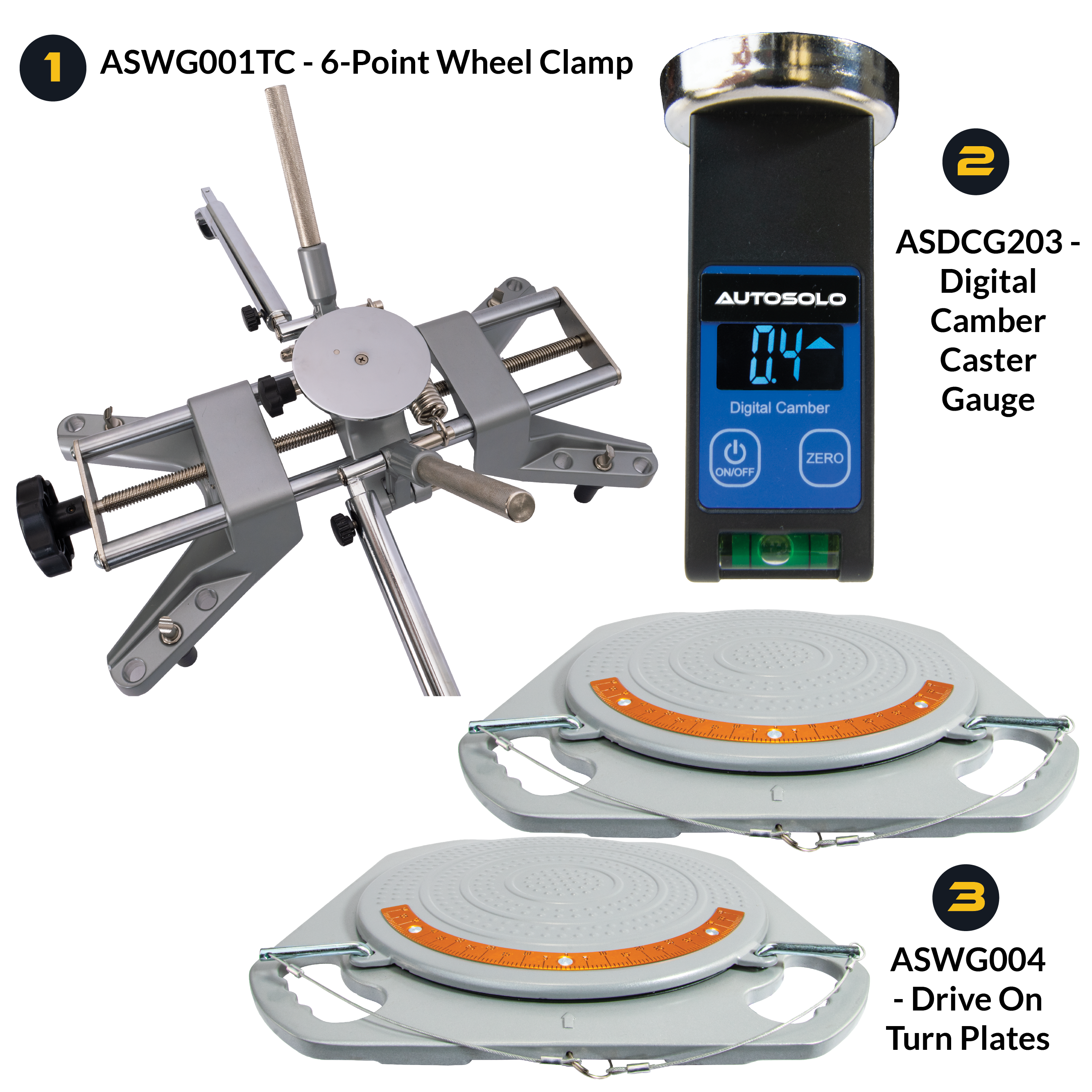

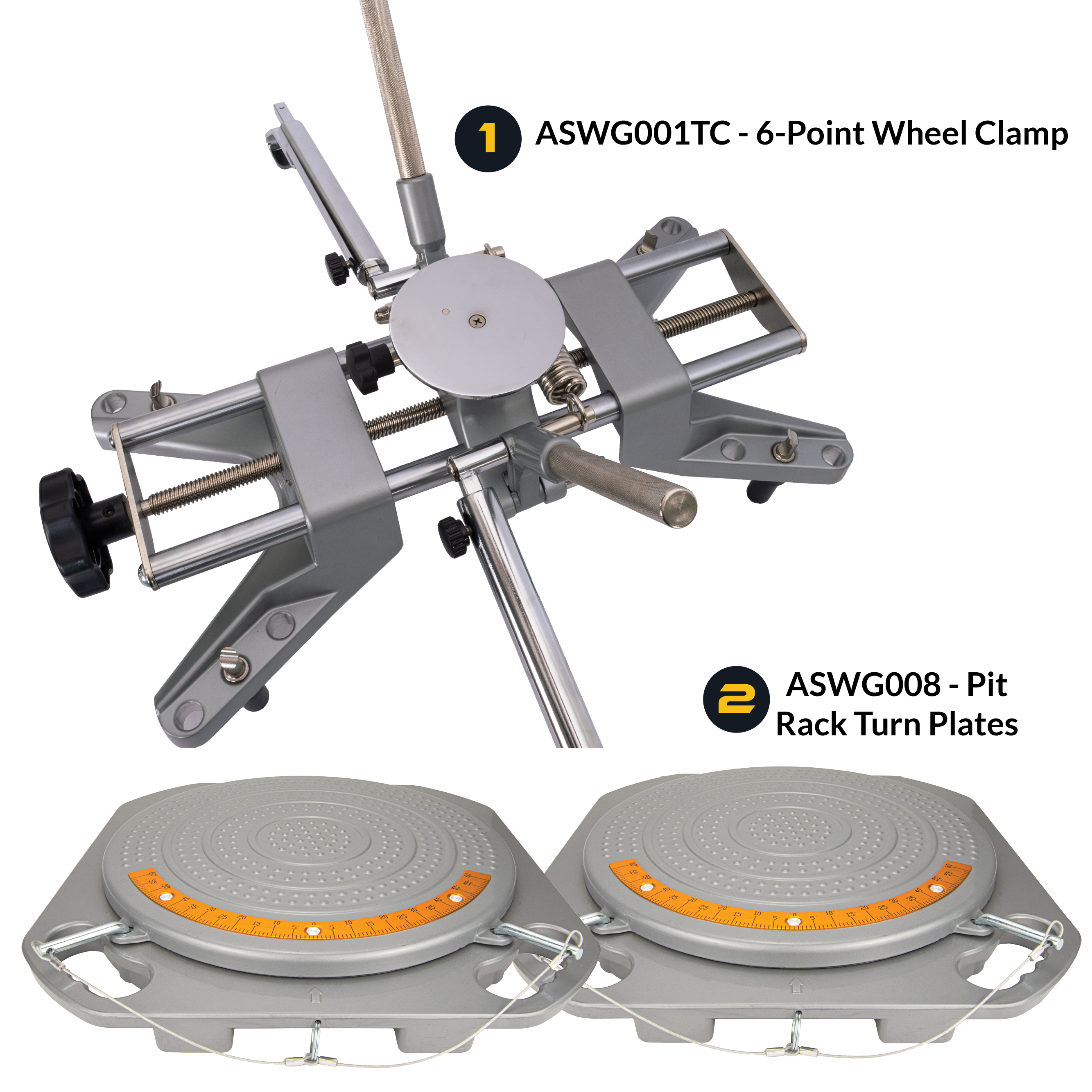

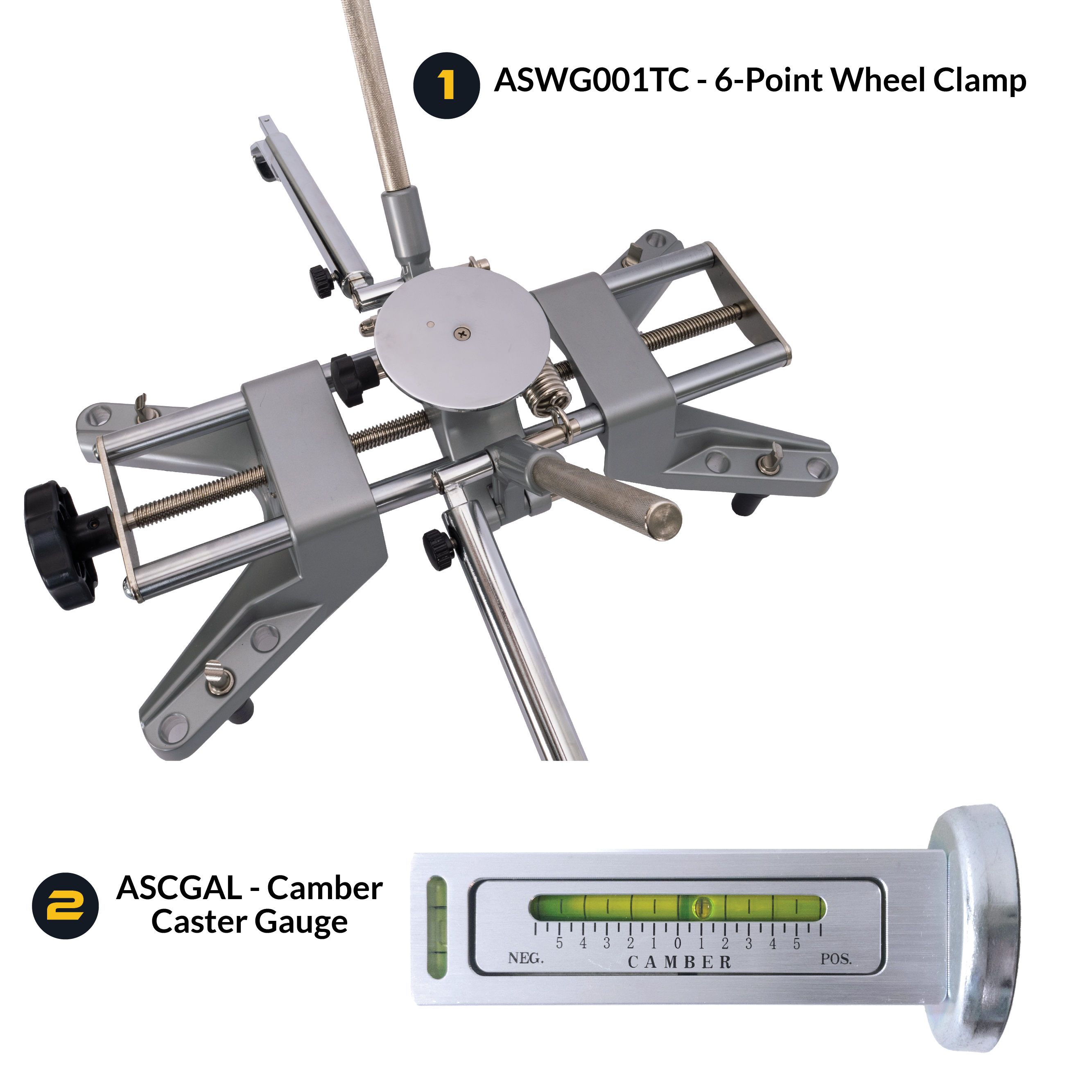

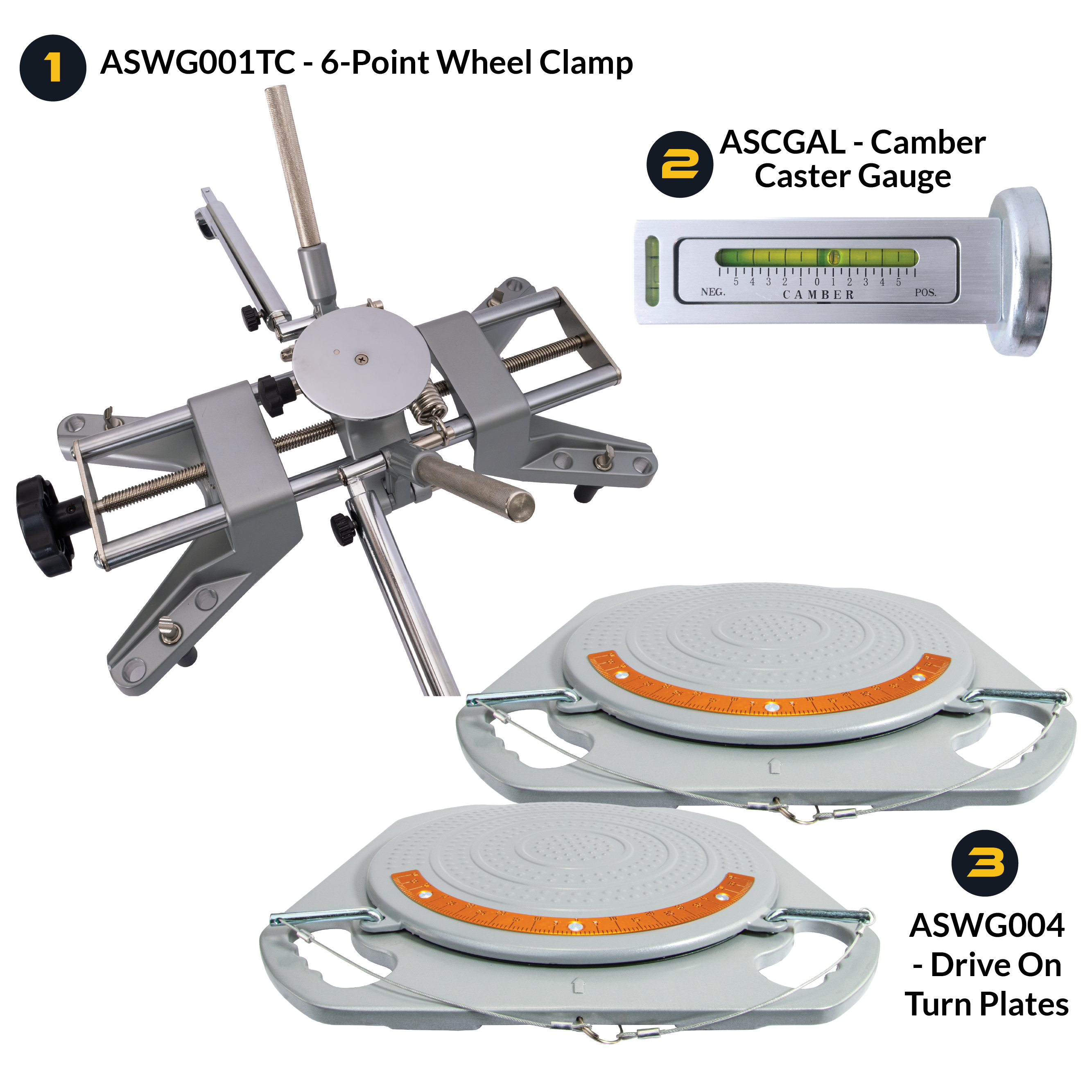

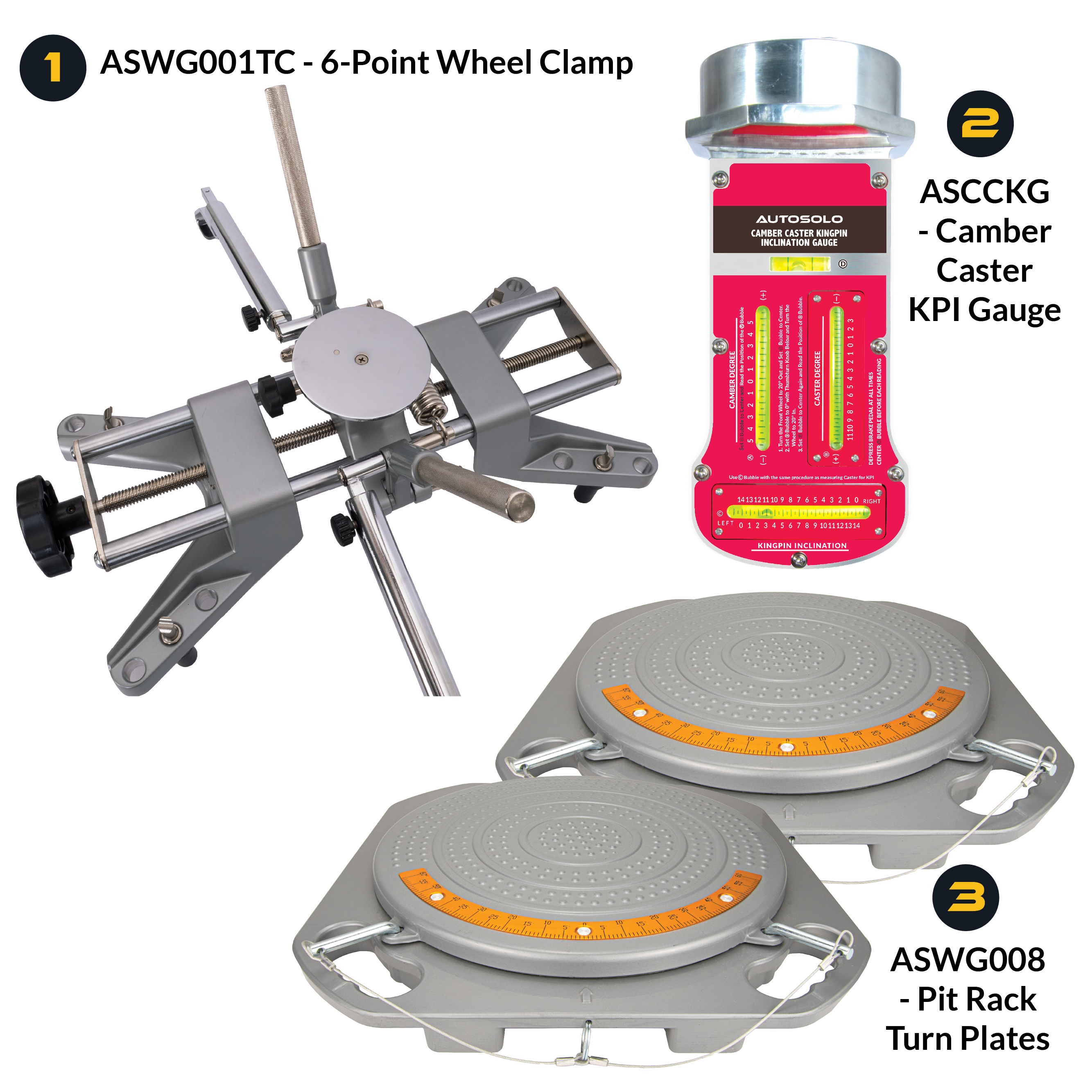

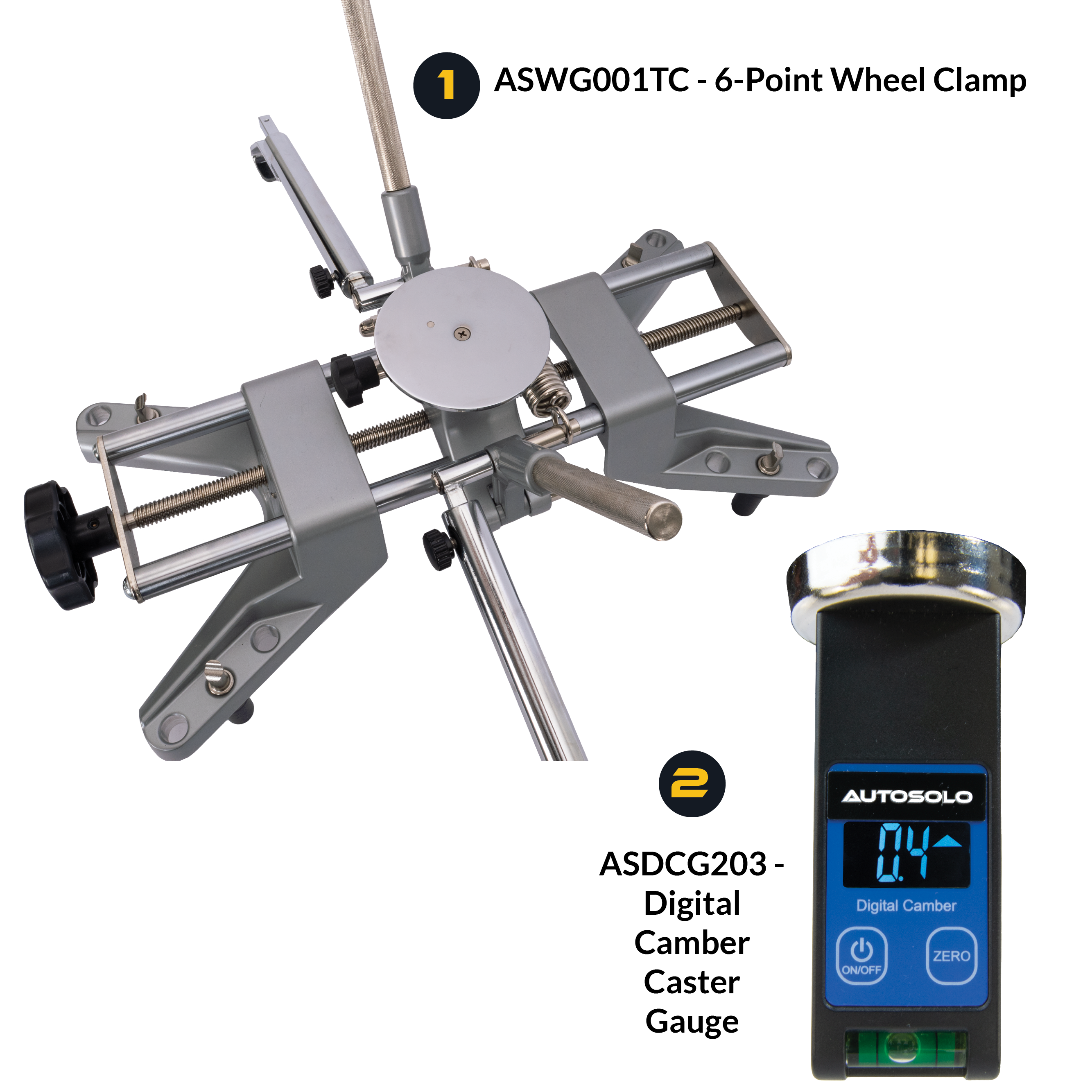

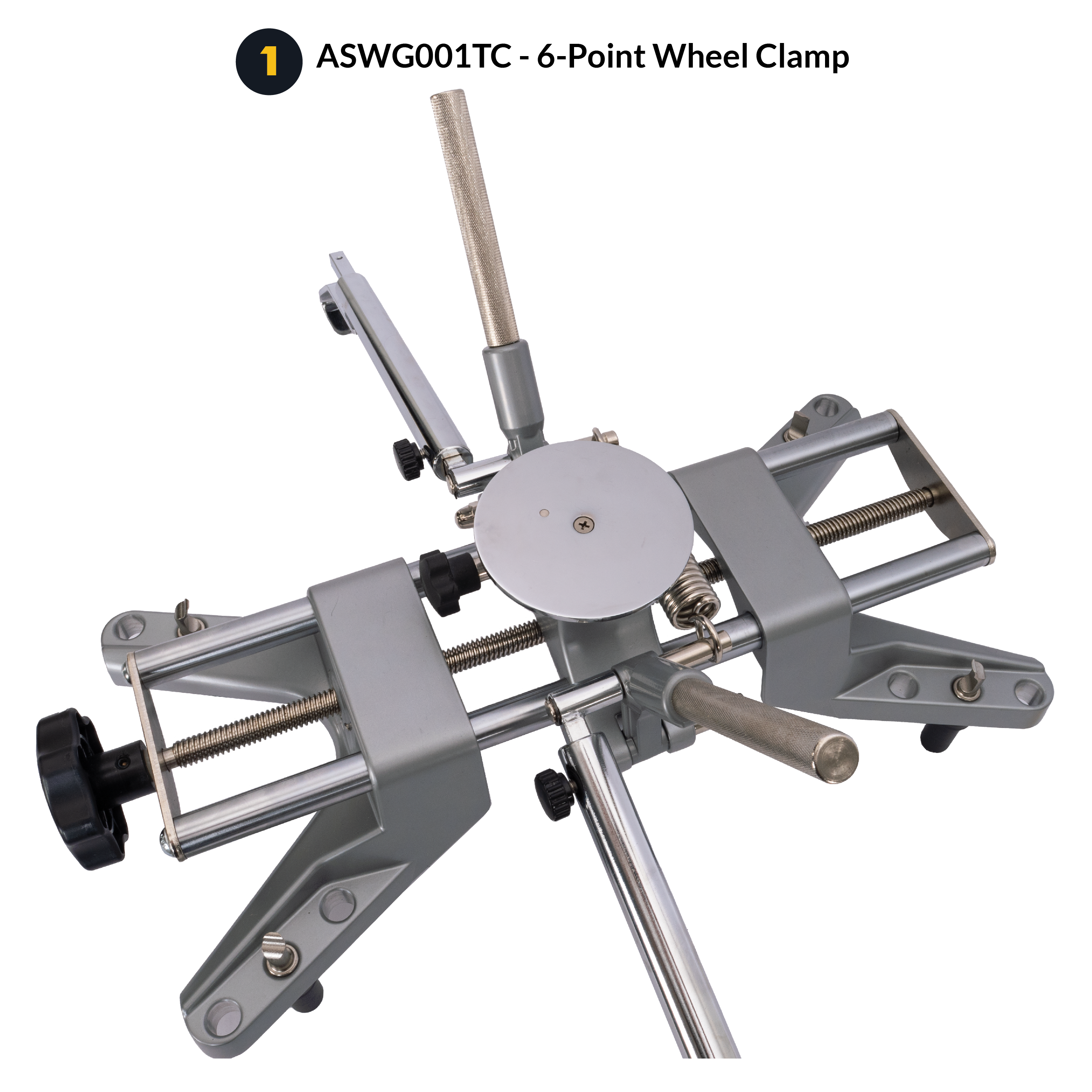

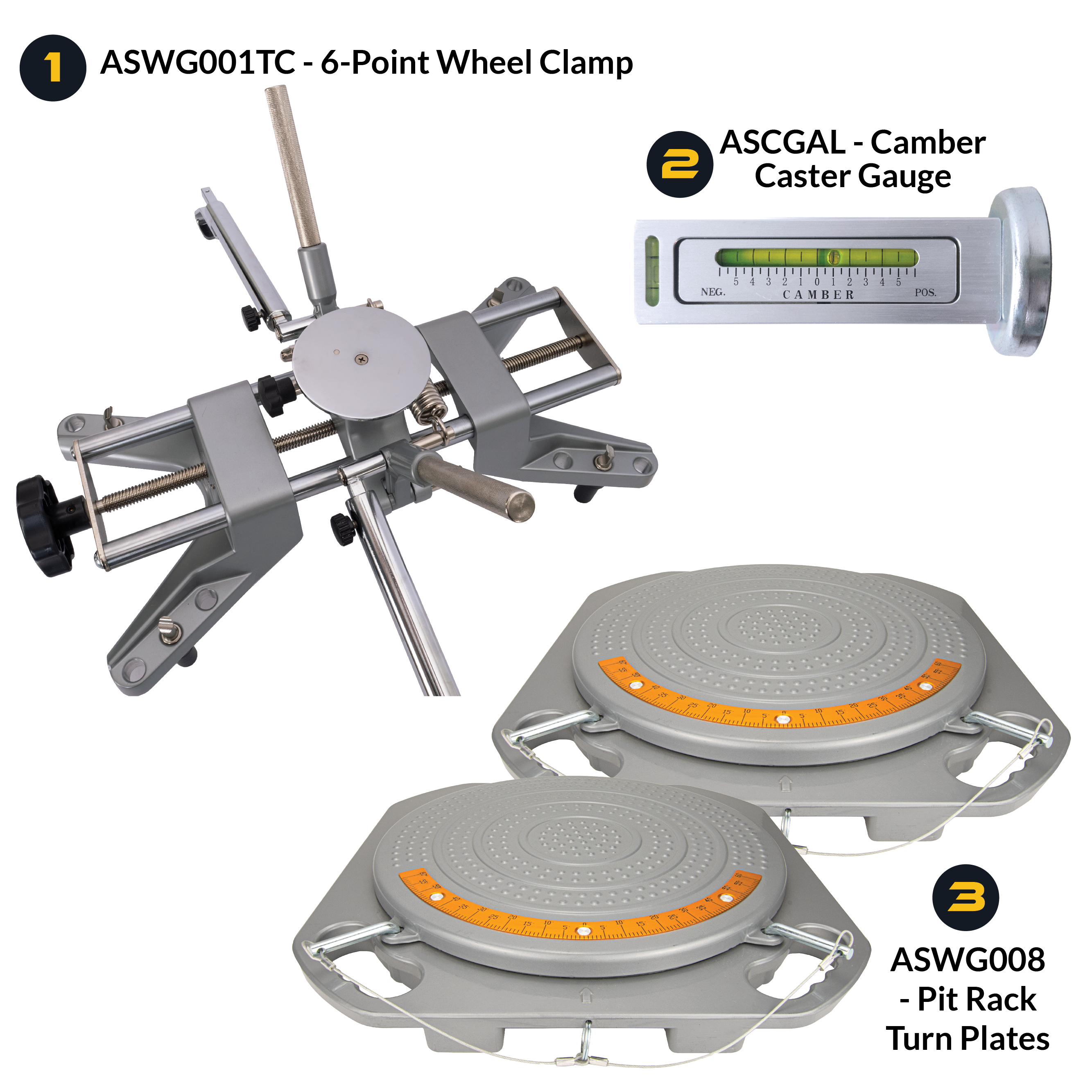

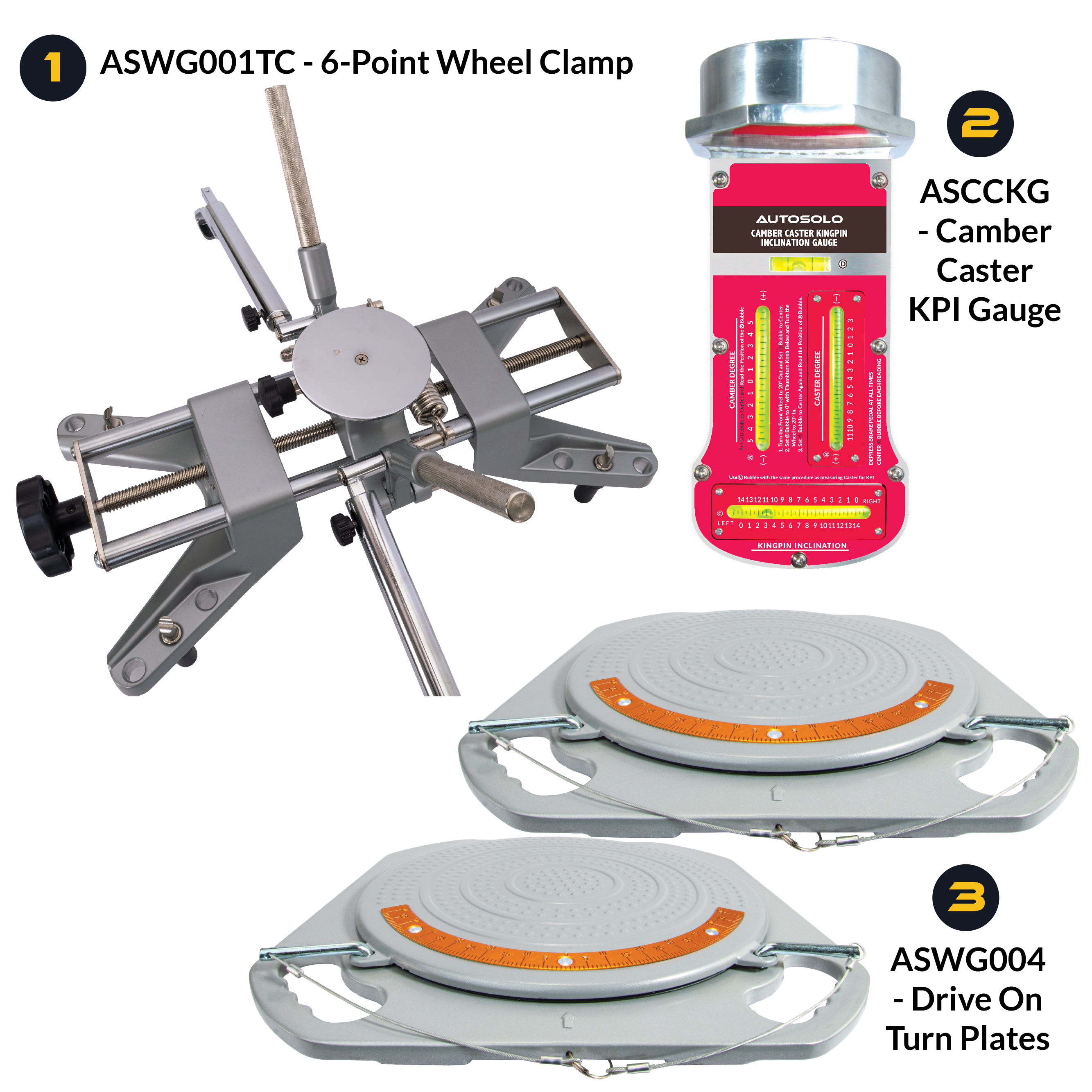

6-Point Wheel Clamp
ASWG001TC

6-Point Wheel Clamp

Rim and tire tread grip extensions for maximum stability. Our most secure clamp.

From $149.95
How many?

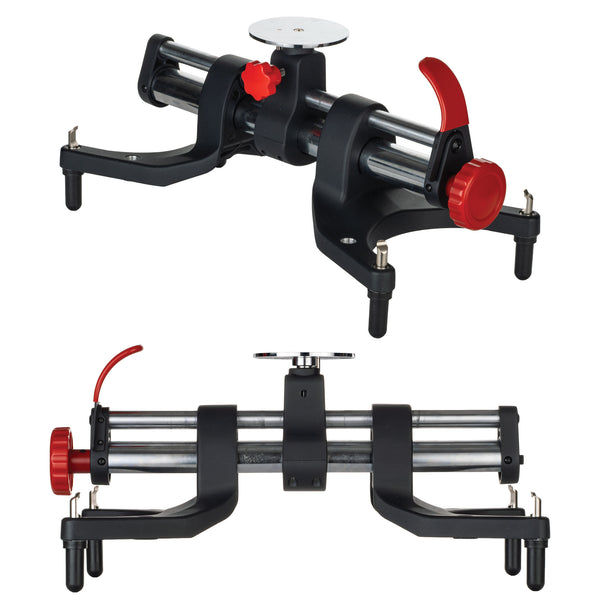

ONYX PRO Wheel Clamp
ASWG002

ONYX PRO Wheel Clamp

Matte black rim clamp with a handle and a thumb turn adapter socket.

From $129.95
How many?

STEP 2: CHOOSE YOUR GAUGE

The gauge measures camber, caster, and more. Pick the level of detail you need.

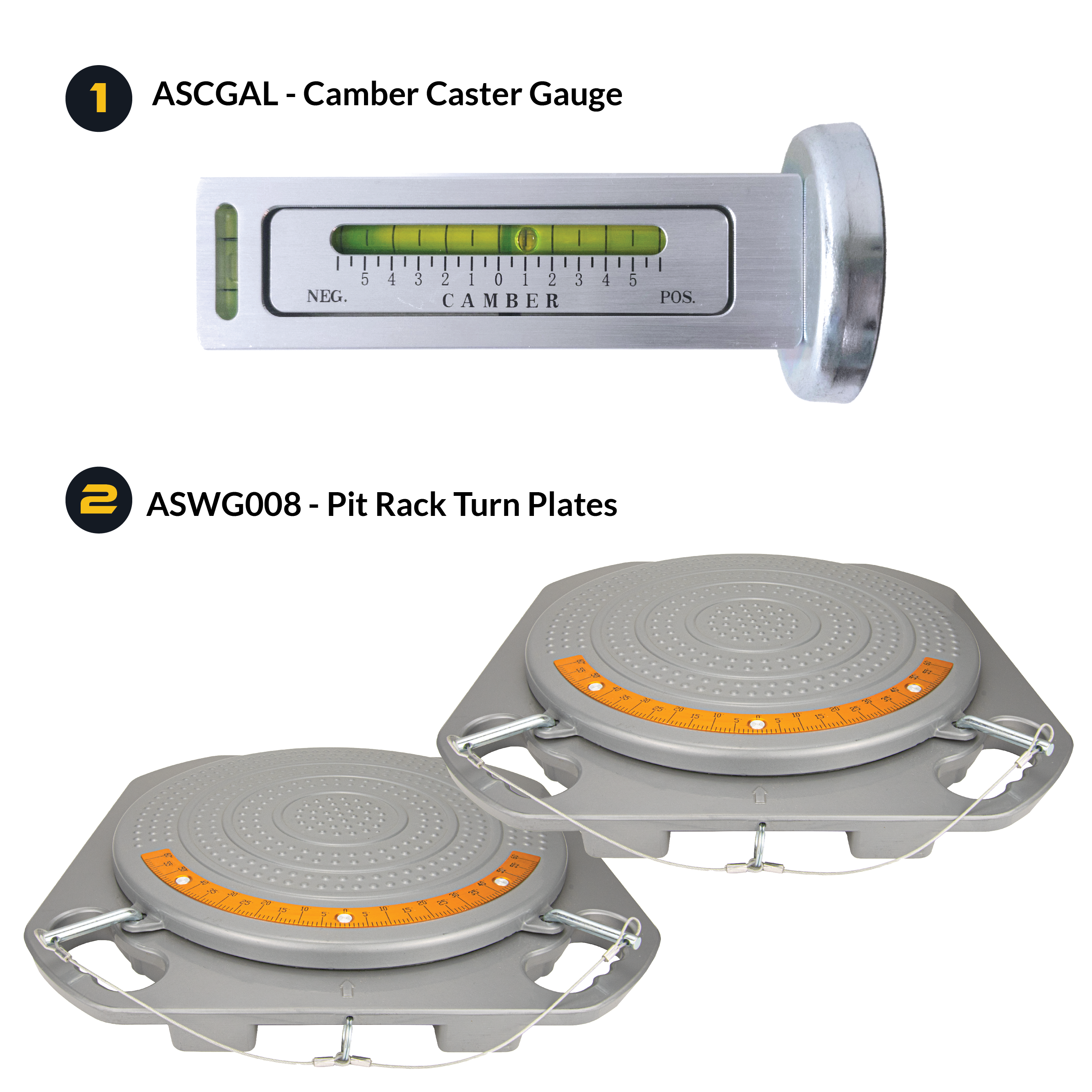

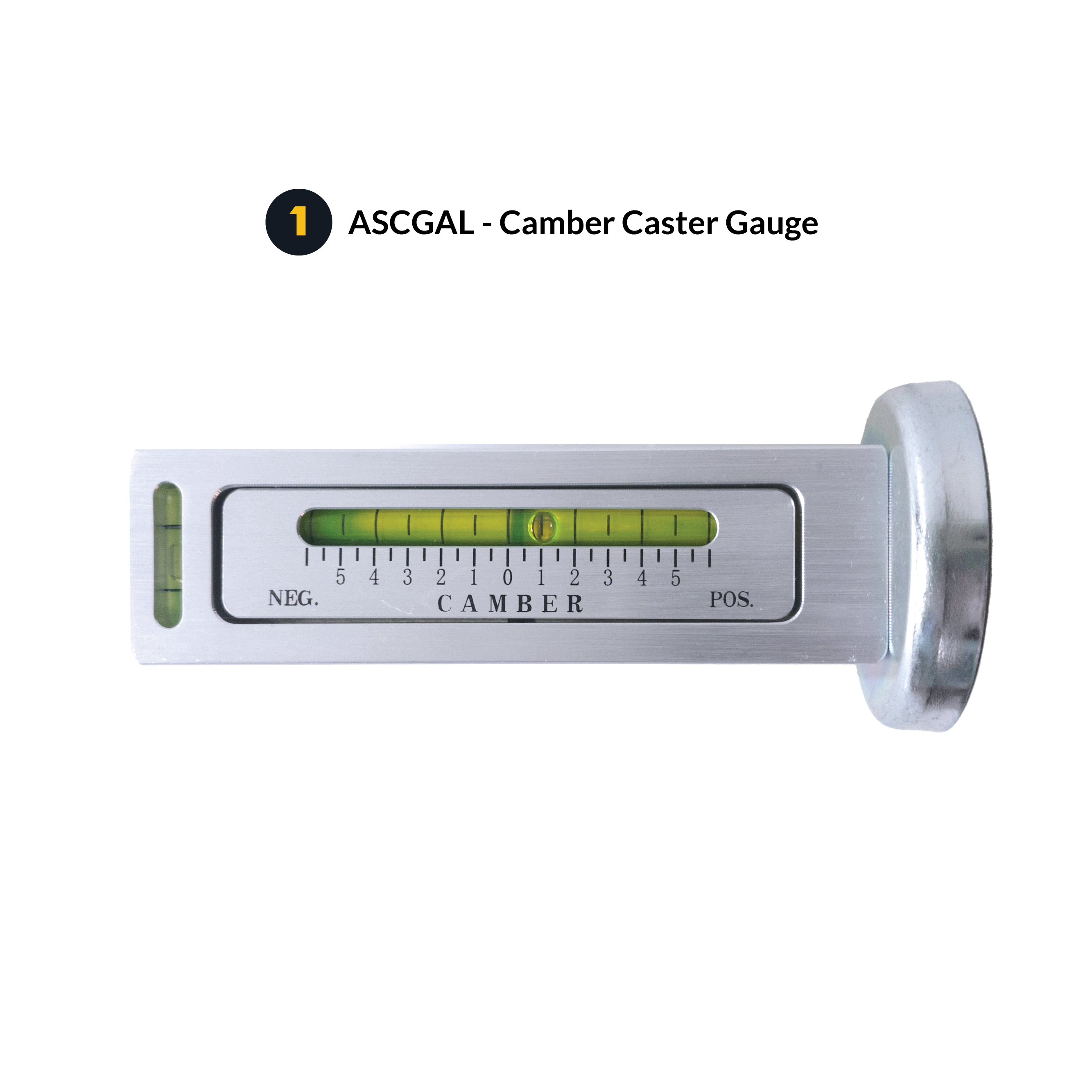

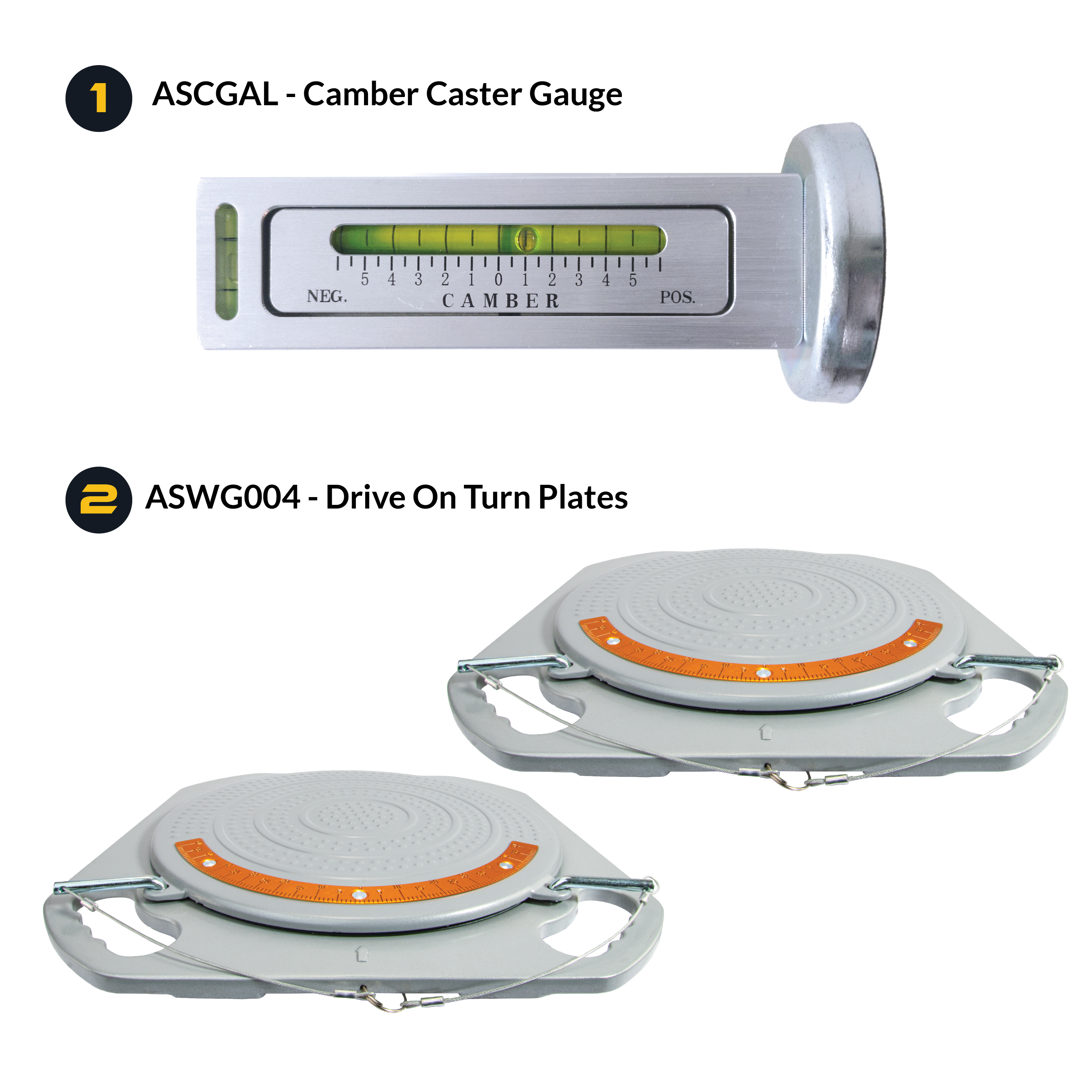

Camber / Caster Gauge
ASCGAL

Camber / Caster Gauge

Magnetic analog gauge for basic camber and caster readings. Simple and economical.

$14.95
How many?

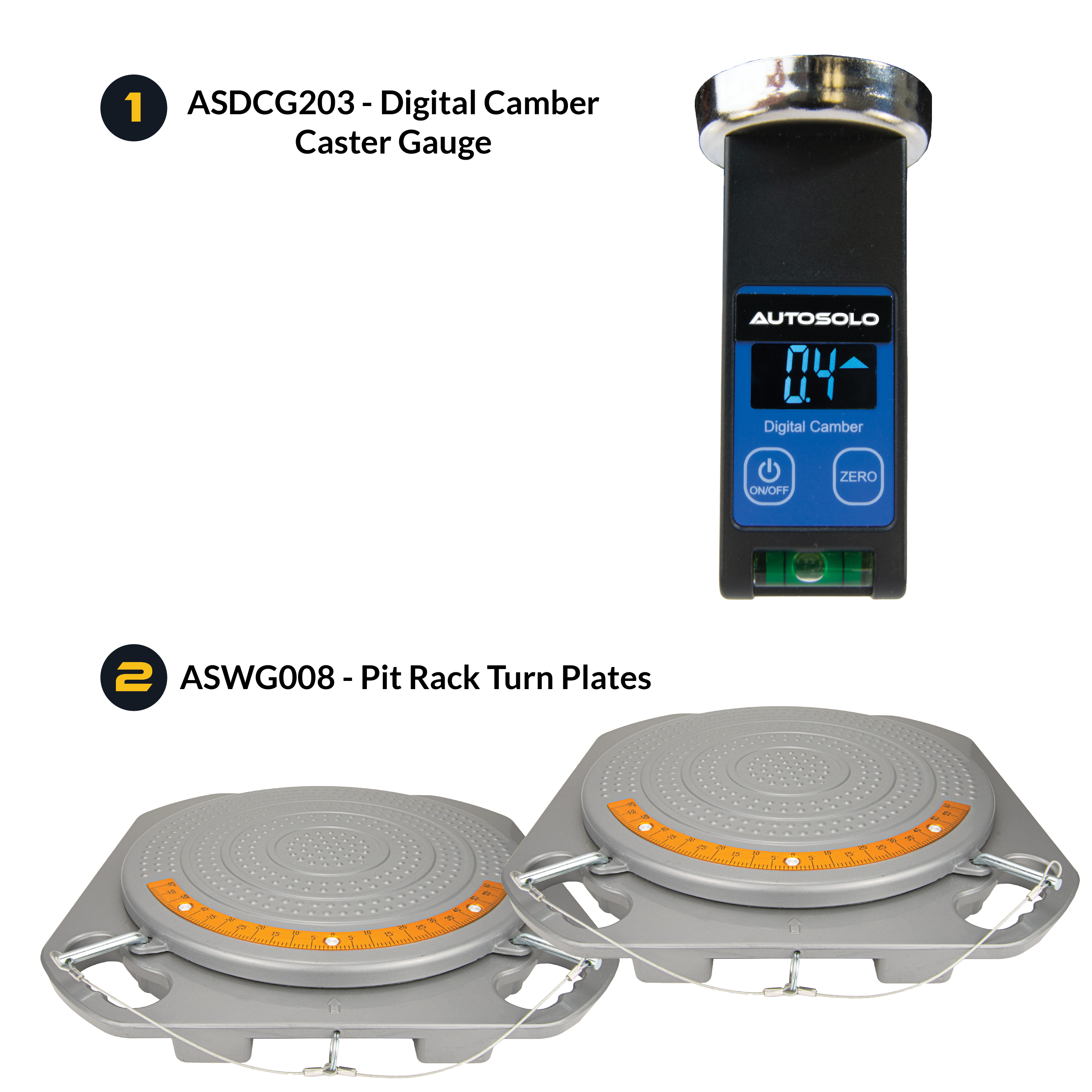

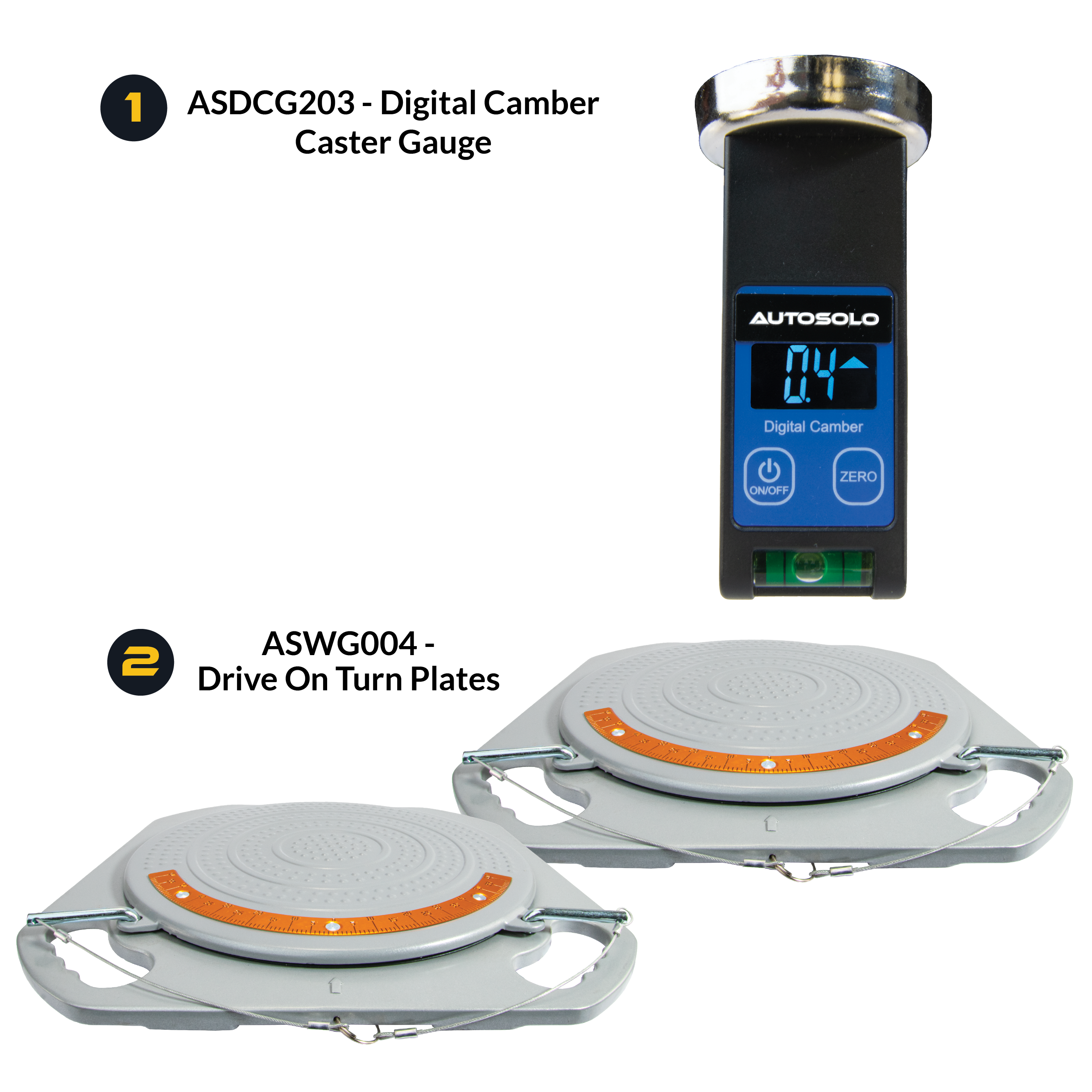

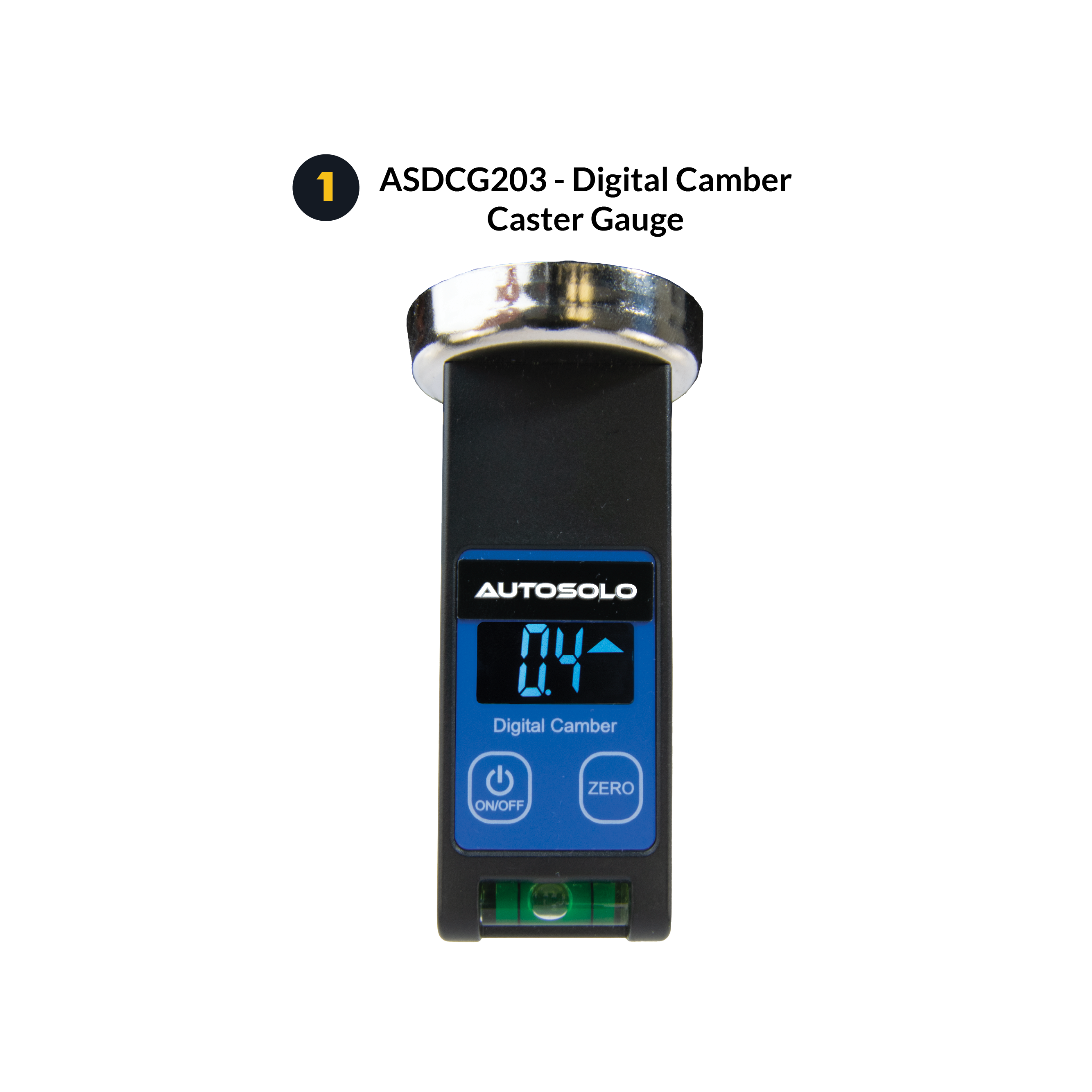

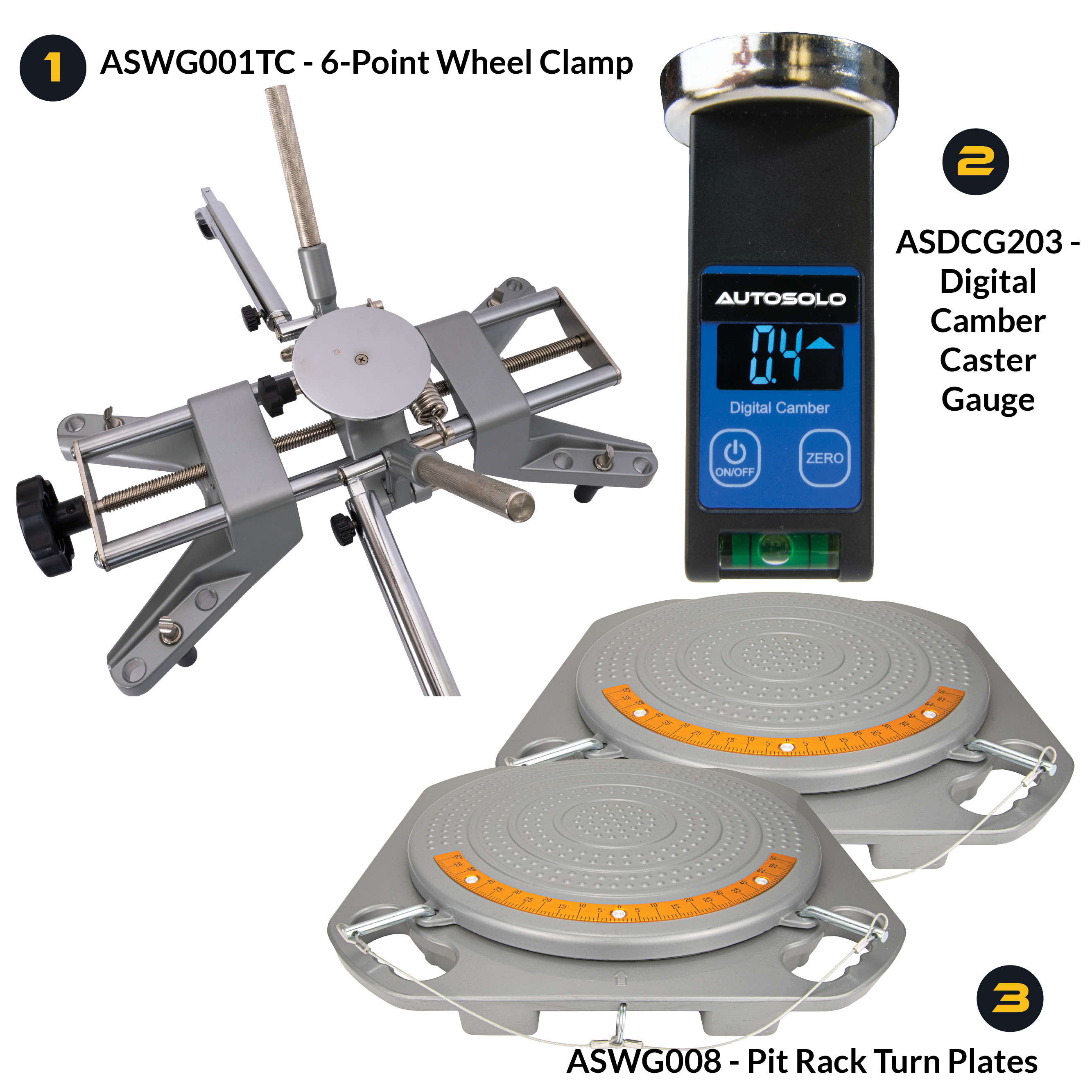

Digital Camber / Caster Gauge
ASDCG203

Digital Camber / Caster Gauge

LCD digital readout for camber and caster. Easy to read in any lighting.

$49.95
How many?

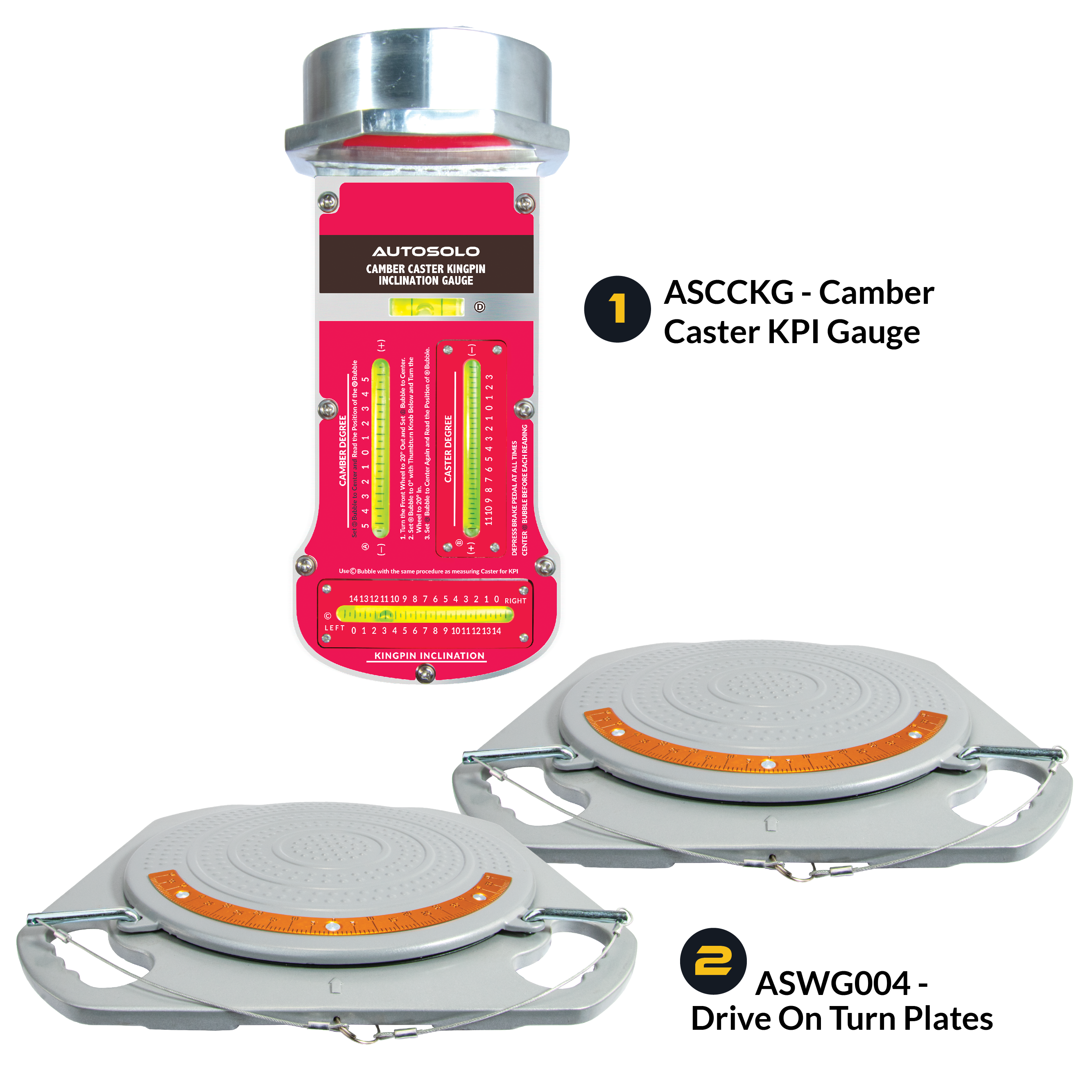

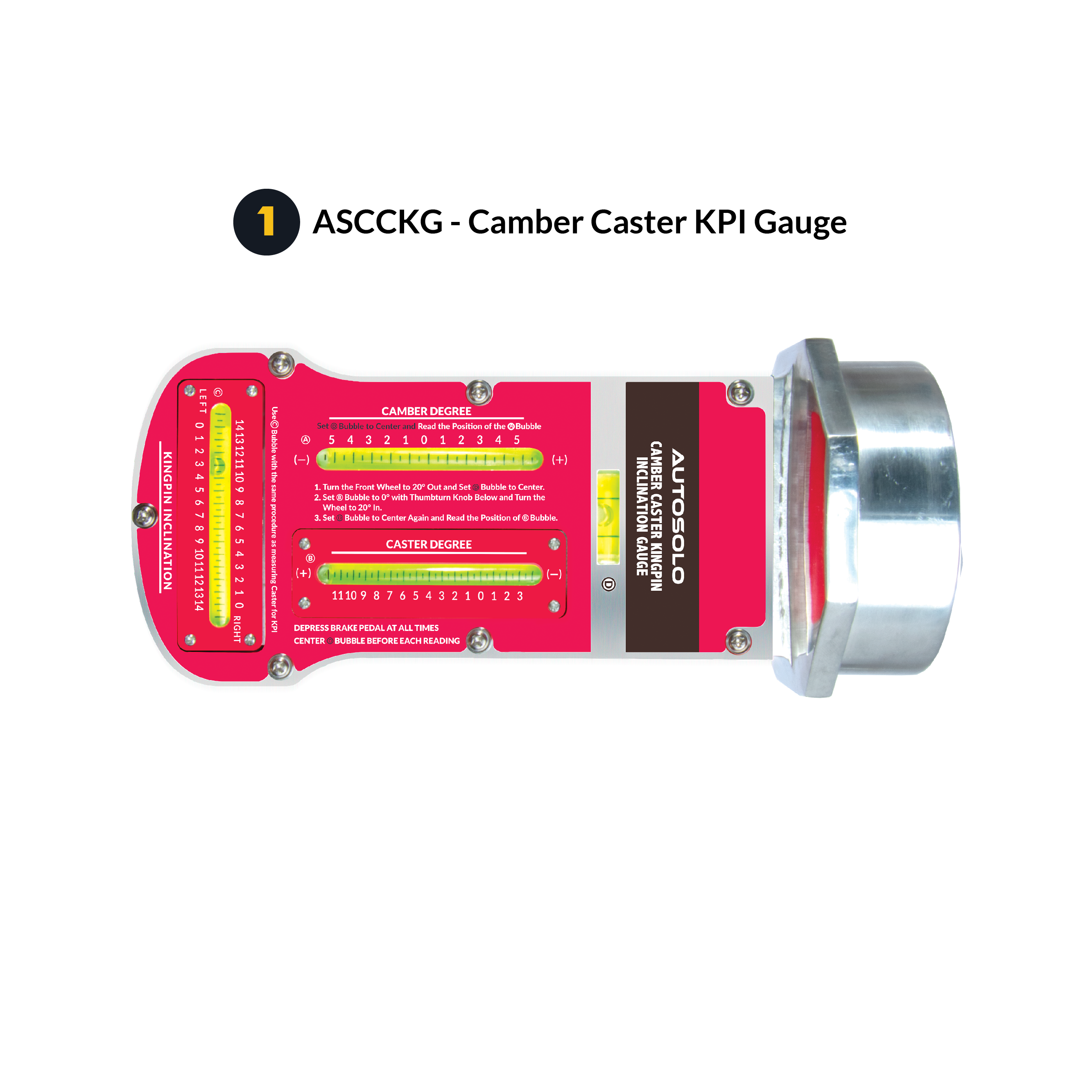

3-in-1 Camber, Caster & KPI Gauge
ASCCKG

3-in-1 Camber, Caster & KPI Gauge

Measures camber, caster, and kingpin inclination in one tool. The full-featured choice.

$109.95
How many?

STEP 3: CHOOSE YOUR TURN PLATES

Turn plates let the wheels pivot freely so you can measure and adjust alignment angles.

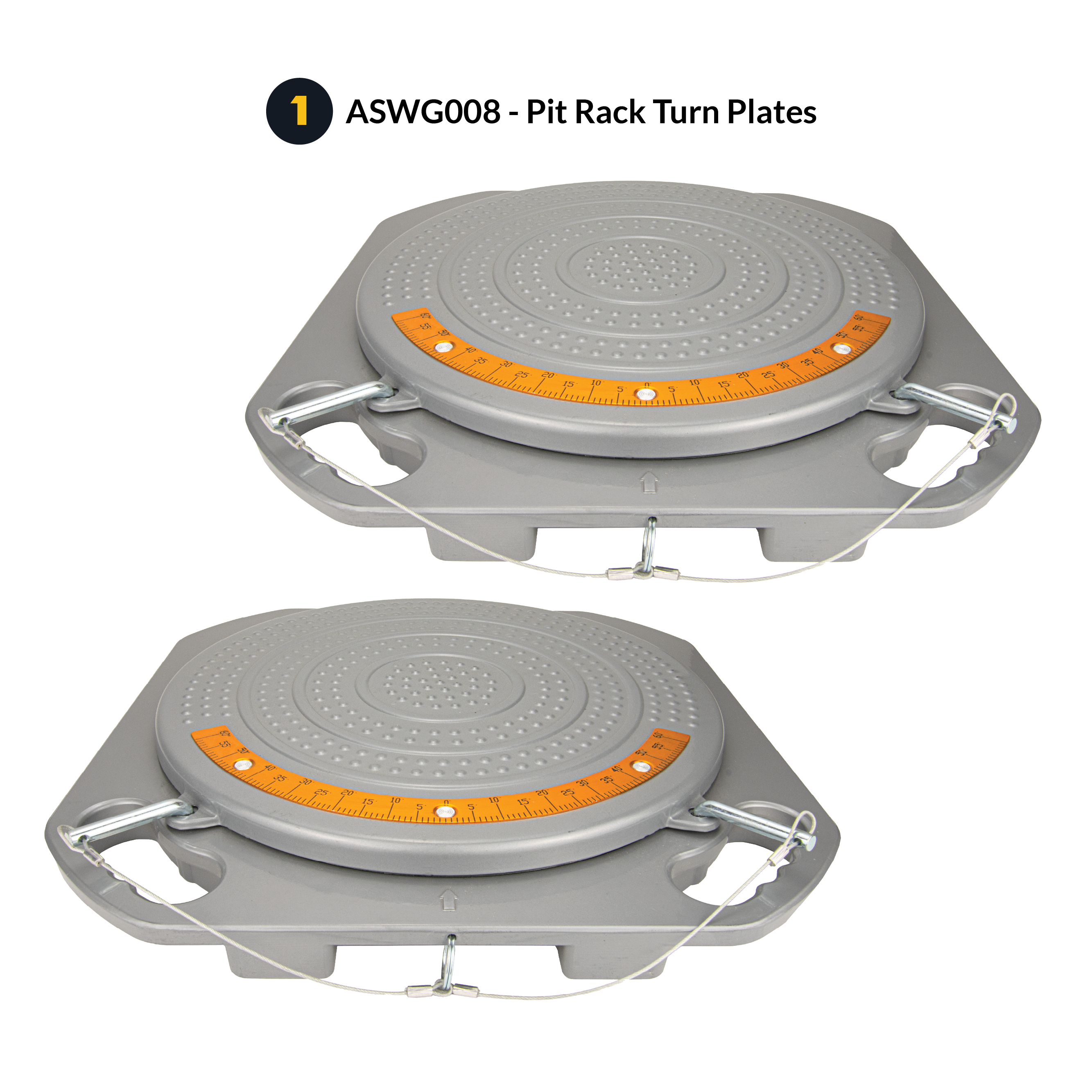

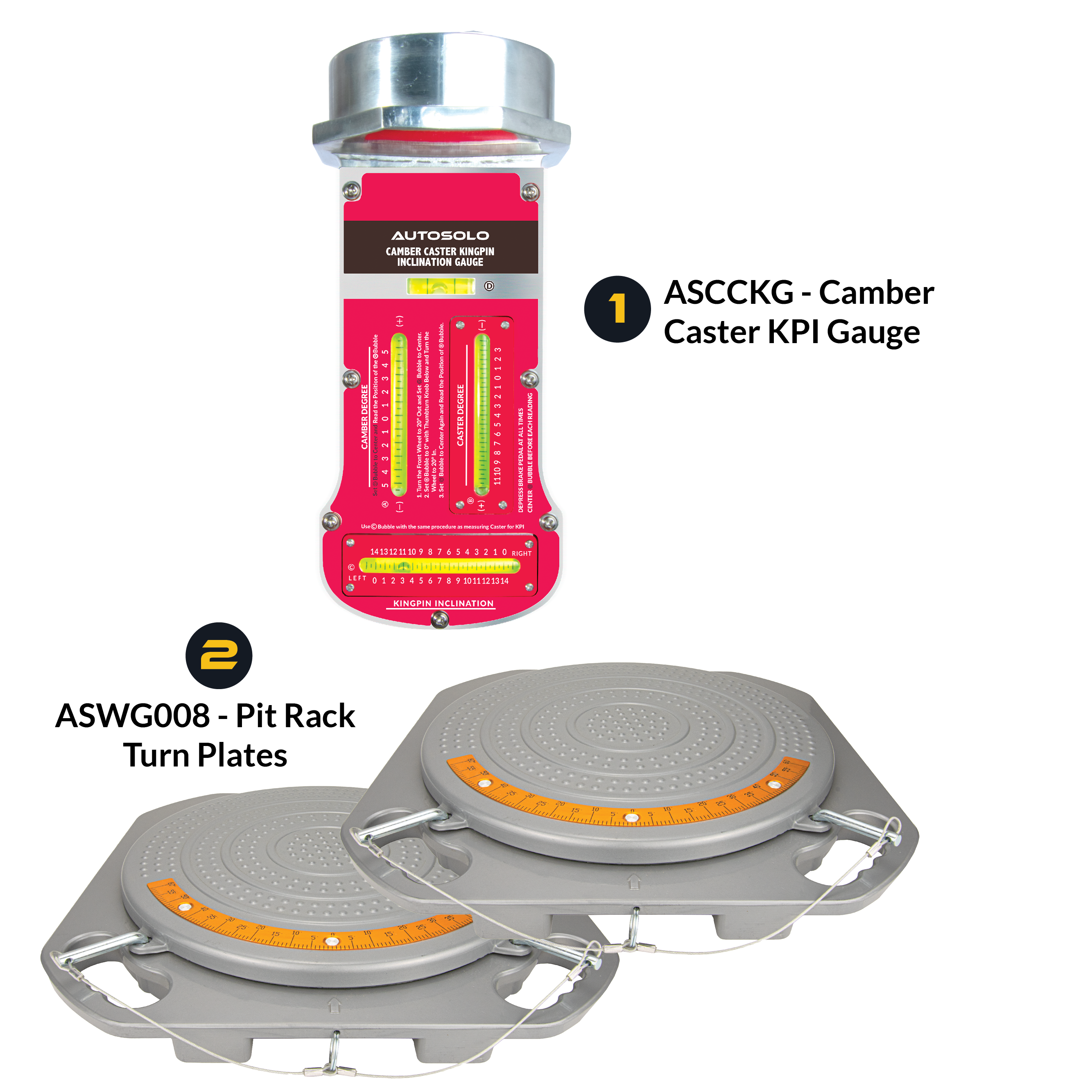

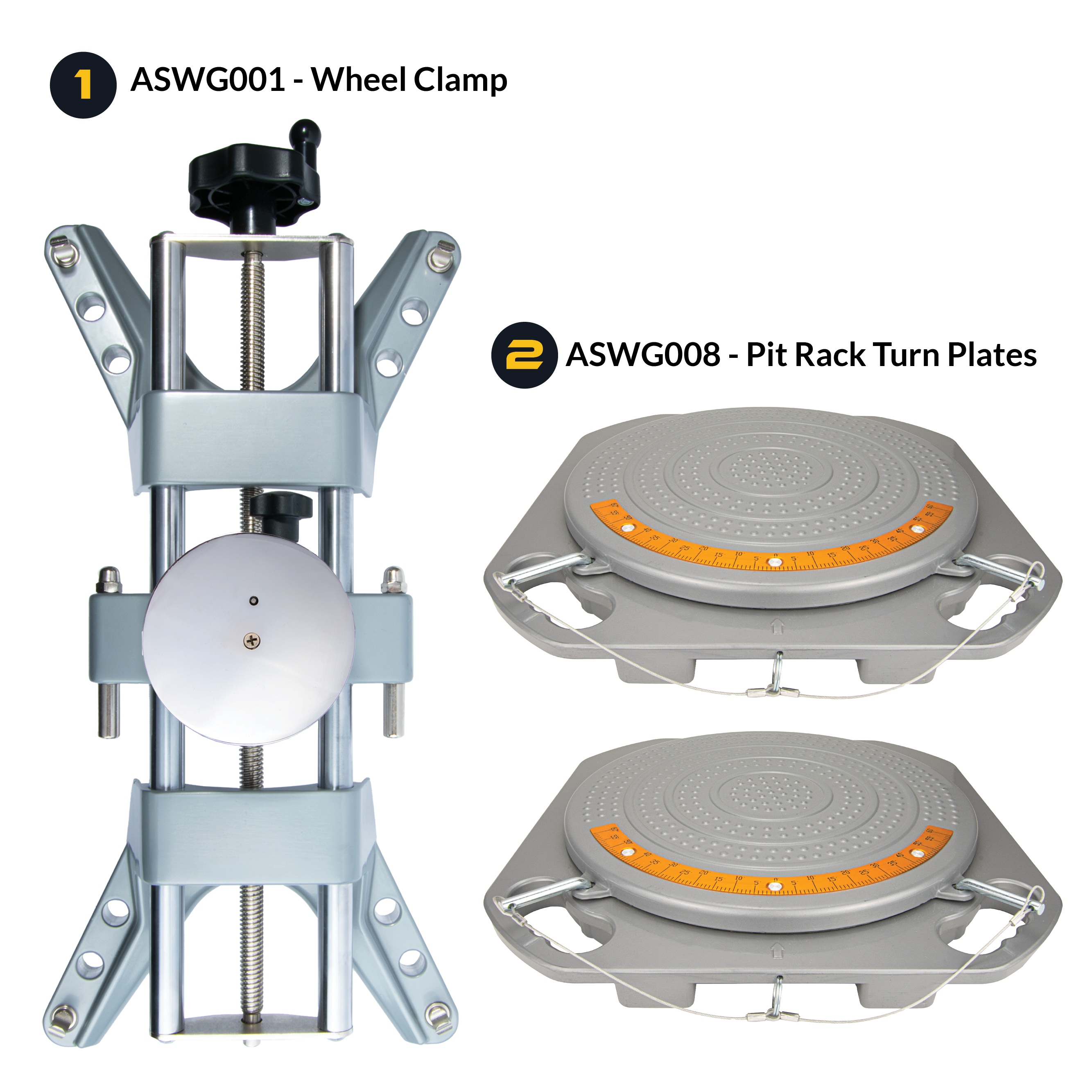

Pit Rack Turn Plates
ASWG008

Pit Rack Turn Plates

Brass-finish dial with 4-ton capacity. Designed for use on a pit rack or lifted vehicle.

$179.95

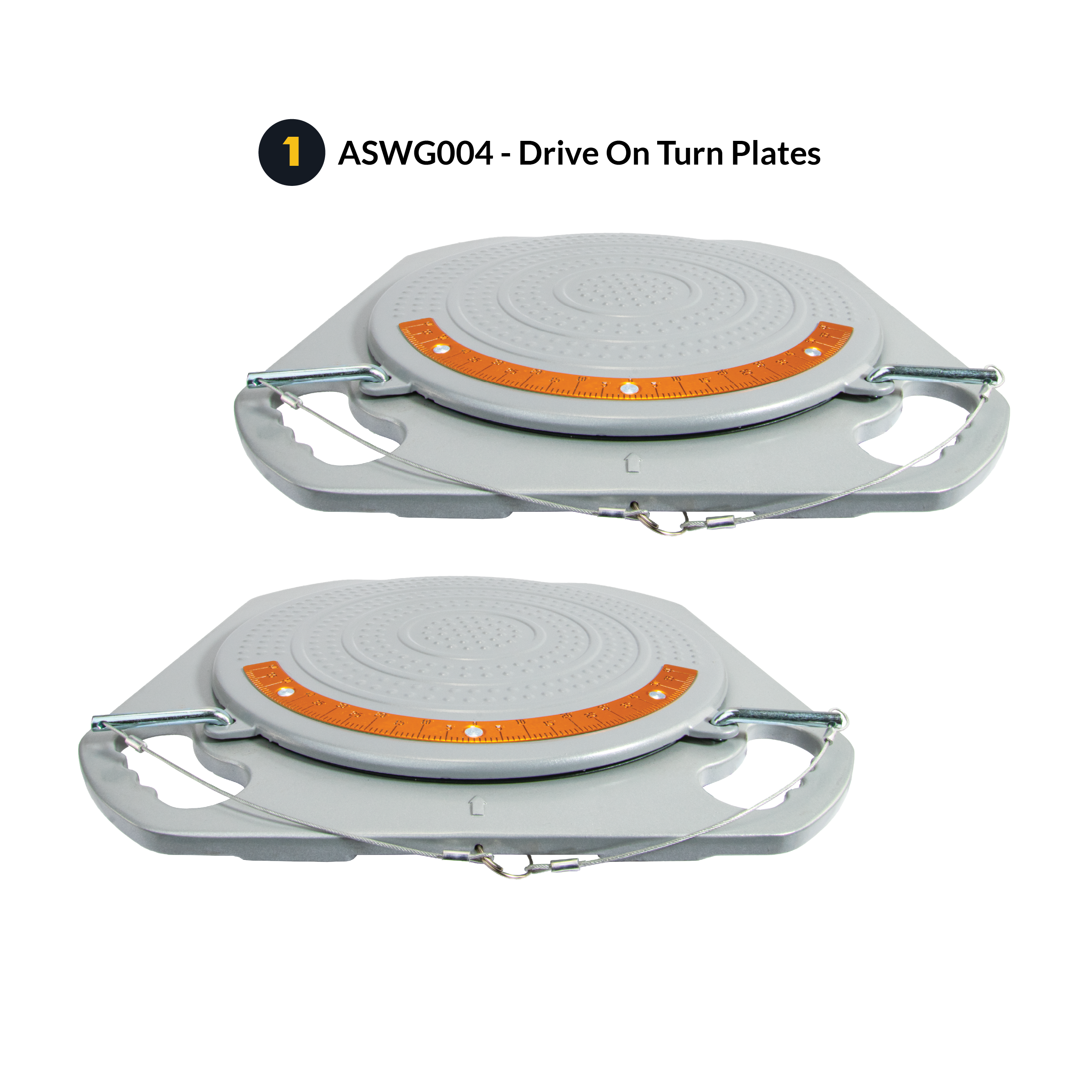

Drive On Turn Plates
ASWG004

Drive On Turn Plates

Low-profile plates you drive right onto. No lift needed, ideal for home garages.

$189.95
Drive-On Turn Plates with Ramps and Rear Leveling Platforms
ASWG004 + ASRP004

Drive-On Turn Plates + Ramps & Leveling Platforms

Front plates plus ramps and rear level platforms. Levels the whole car for string work.

$289.90

STEP 4: ADD ACCESSORIES

Round out your kit with support tools. Select as many as you like, each one adds 1% off your order.

Steering Wheel Holder & Brake Pedal Depressor
ASBPSW1

Steering Wheel Holder & Brake Pedal Depressor

Complete set for hands-free alignment work. Holds the wheel and locks the brake.

$89.95
Brake Pedal Depressor
ASBPH1

Brake Pedal Depressor

Locks the brake pedal down during caster measurements. Universal fit.

$49.95
Steering Wheel Holder
ASSWH1

Steering Wheel Holder

Adjustable holder that keeps the steering wheel centered during alignment.

$49.95
3-in-1 Toe Alignment Plates
ASTPSETX

3-in-1 Toe Alignment Plates

Measure toe-in, toe-out, thrust, and steer ahead with one compact tool.

$89.95

Build your kit

Pick your tools. Bundle and save.

Take control of your vehicle's alignment at home with a kit tailored to your needs. Choose a wheel clamp, a gauge, and turn plates, then bundle them together and save compared to buying individually.

AutoSolo ASWG002 ONYX PRO wheel clamp

Wheel Clamps

Choose the ONYX PRO clamp, the Essentials Wheel Clamp, the 6-Point Clamp with tire tread grip extensions, or the Tire Clamp for larger wheels. Available in 1, 2, or 4 packs.

AutoSolo ASCCKG camber caster and KPI alignment gauge

Alignment Gauges

Pick the Camber/Caster Gauge for basic readings, the Digital Camber/Caster Gauge for an LCD readout, or the 3-in-1 Camber, Caster & KPI Gauge for full diagnostics.

AutoSolo ASWG004 drive-on low profile turn plates

Turn Plates

Select the Drive On low-profile plates for home garages or the Pit Rack plates for lifted vehicles. Both feature brass-finish dials and 4-ton capacity.

AutoSolo adjustable steering wheel holder support tool

Accessories

Add support tools like the Steering Wheel Holder, Brake Pedal Depressor, or Toe Alignment Plates to complete your setup.

AutoSolo ONYX PRO wheel clamp and alignment gauge on the front wheel of a car on a turn plate in a home garage
01 / THE SYSTEM

Camber, caster, KPI
and toe.
Build your own kit.

Every build starts from the same foundation: turn plates, a wheel clamp, and the camber, caster and KPI gauge. From there the builder is yours: add ramps and level platforms, a second clamp and gauge, toe plates, or the steering and brake holds. Pick the tools that fit your garage, and the kit discount grows with every one you add.

Your pick of toolsAutomatic kit discountOnly pay for what you need
02 / COMPONENTS

What each piece actually does

Five component groups make up the builder. Pick one to see what it does and when to add it.

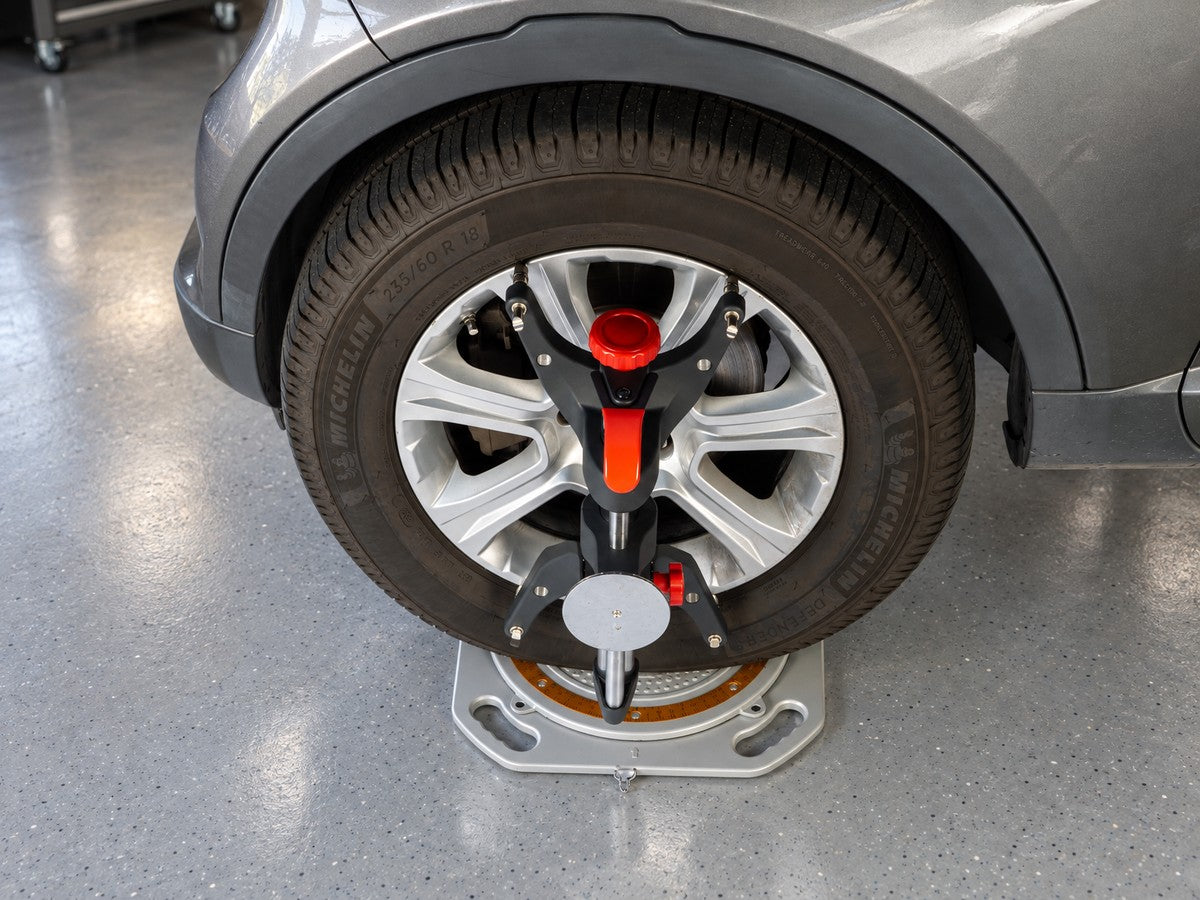

AutoSolo ONYX PRO wheel clamp mounted to a front wheel, sitting on a turn plate
ASWG002

Grips the wheel. The gauge reads from it.

The clamp is the mount everything else hangs off. Four locator pins seat on the rim edge and the body sits square to the wheel without touching the face. Pick the ONYX PRO or the Essentials clamp in step 1. Both fit 11 to 25 inch rims, and it is where every build starts.

  • The mount every build starts from
  • Add a second to set up both fronts at once
03 / HOW TO USE

How to run the kit, step by step

The same five steps whatever you build. Steps four and five only apply when you added those tools.

Line drawing of a car rolled up onto ramps with a turn plate under the front wheel
Step 01

Set the stage

Roll up the ramps and onto the turn plates, then let the car settle on its own suspension. Pull the turn plate pins once it has settled, not before. Rolling on is the method to use: dropping the car from a lift pushes the wheels outward under load and binds the pins.

With ramps and level platforms in your build
04 / KEY ADD-ONS

Key add-ons, and what each one solves

The four additions builders reach for most. Each one removes a specific piece of work you would otherwise do by hand.

ASRP004 Ramps + Platforms Car sitting level on AutoSolo ramps and level platforms, all four corners at one height

Ramps and level platforms sit the car flat

On turn plates alone the front wheels sit 1 inch up while the rears sit on the floor, so the car sits nose high unless you plank the rear yourself. Add ASRP004 and every corner comes up to one height: a ramp for every wheel, level platforms for the rears, and the car sits flat.

Second Clamp + Gauge AutoSolo ONYX PRO wheel clamp and alignment gauge mounted on a front wheel while the setup is worked at the car

A second clamp and gauge does both fronts at once

One clamp and one gauge means doing a side, unbolting everything, and walking it around the car to do the other. Double them in the builder and you mount both fronts once, sweep caster side to side, and compare left against right without touching a setting in between.

ASTPSETX Toe Plates Toe plate set against a tire with the string line and tape measures run alongside the car

Toe plates reach the angle the gauge cannot

Camber, caster and KPI live at the wheel. Toe lives between the wheels, and the ASTPSETX toe plates reach it. Plates against the sidewalls, tapes front and rear, string through the loops. One setup covers all three, with no extra hardware.

Steering + Brake Holds AutoSolo steering wheel holder standing on a home garage workbench

The holds turn it into a one-person job

A steering wheel creeps the moment you let go. Add the digital steering level, the wheel holder and the brake pedal holder: level the wheel, lock it, hold the brakes. Everything stays where you set it while you move corner to corner.

05 / SUPPORT

Tools you can rely on. Support you can reach.

Trusted by DIY mechanics

Trusted by DIY Mechanics

Used by home garage enthusiasts, classic car builders, and hobby mechanics worldwide.

Tested in real garages

Tested in Real Garages

Reviewed by automotive creators and DIY alignment builders across YouTube and beyond.

Backed by US support

Backed by U.S. Support

Fast help, product guidance, and friendly support from our U.S.-based team.

1-year replacement support

1-Year Replacement Support

If any manufacturing defects occur, our team will ship a replacement promptly.

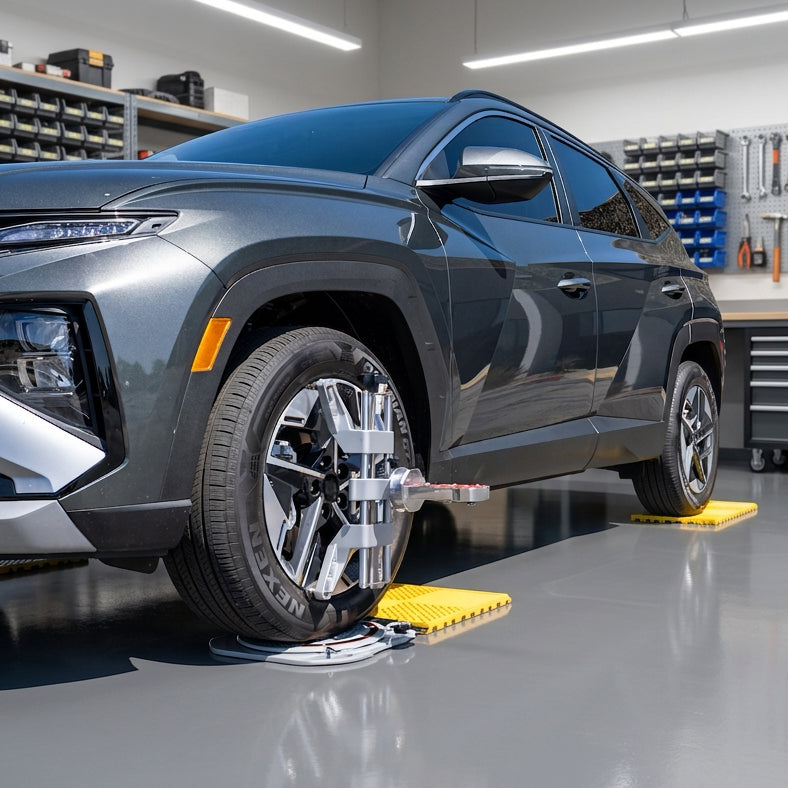

AutoSolo alignment tools chosen for a custom kit

Pre-built kits

Rather skip the builder? Grab a pre-built kit.

Five ready-made kits bundle the same tools in one box, from the three-piece Starter to the ten-piece Complete. Pick the tier that fits your garage and it ships as one order.

Shop Pre-Built Kits

Every tool is also sold on its own in the catalog.
