AutoSolo ONYX PRO Wheel Alignment Clamp
AutoSolo ONYX PRO Wheel Alignment Clamp
Matte stealth housing. Same 11 to 25 inch rim range.

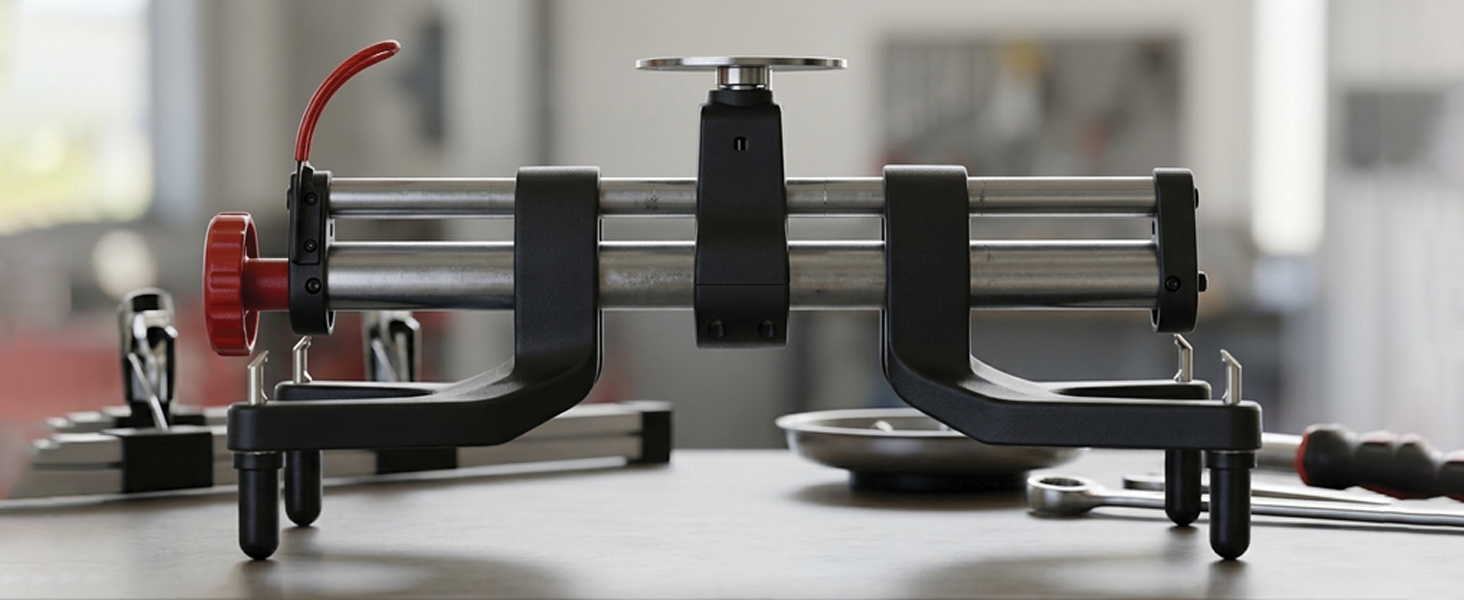

A handle where your hand goes when the wheel is heavy. A thumb turn adapter socket that locks the gauge plate by hand. A matte black finish that shows less of the grime a satin tool wears. Fits 11 to 25 inch rims and every AutoSolo gauge. Built for the garage that takes itself seriously.
Six details, each up close.
Hover or tap each point on the clamp.

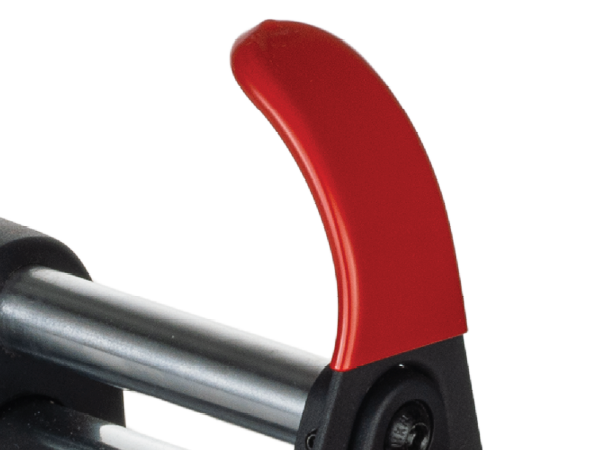

Handle
Bolts on with the hex key in the box. Holds the clamp on the rim while your other hand tightens the knob.

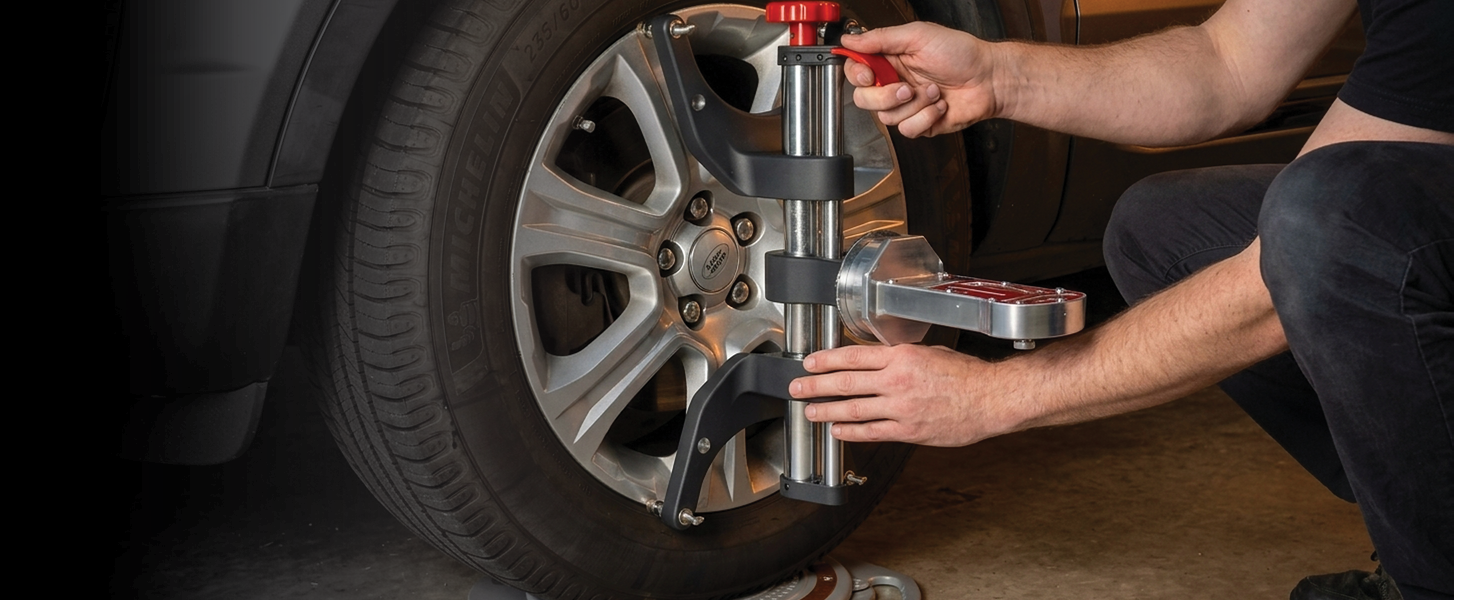

One hand holds the clamp. The other turns the knob.
The handle bolts to the clamp body with the hex key in the box and sits where your hand lands when you lift the clamp. Hook the top pins over the rim edge, hold the clamp seated with the handle, and turn the tension knob until all four pins sit on the rim. About 30 seconds on, the same off.
Mount in four moves. About 30 seconds a wheel.
Pins Face Inward
Set the four locator pins in the frame slots with the tips pointing inward, so they catch the outer edge of the rim.
Top Pins on the Rim
Open the clamp a little wider than the rim. Hold it by the handle and hook the top two pins over the edge.
All Four Pins Seated
Line up the bottom pins and turn the tension knob until all four pins sit firmly on the rim.

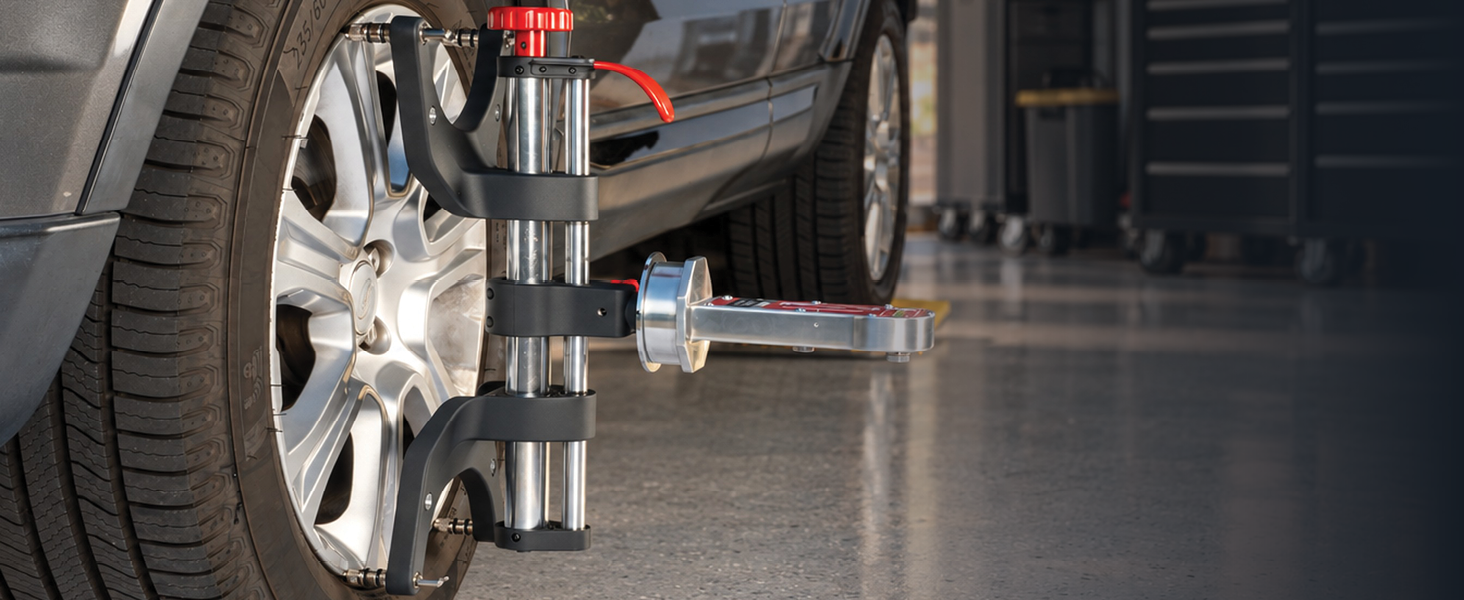

Confirm the Mount
Press on the clamp by hand. If it does not move, it is mounted. Without a 3D aligner, zero the plate before you dock the gauge.
ONYX PRO, or the Essentials Clamp

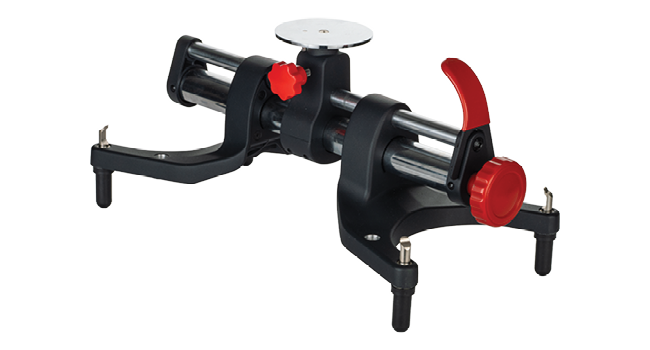

ASWG002ASWG002 ONYX PRO

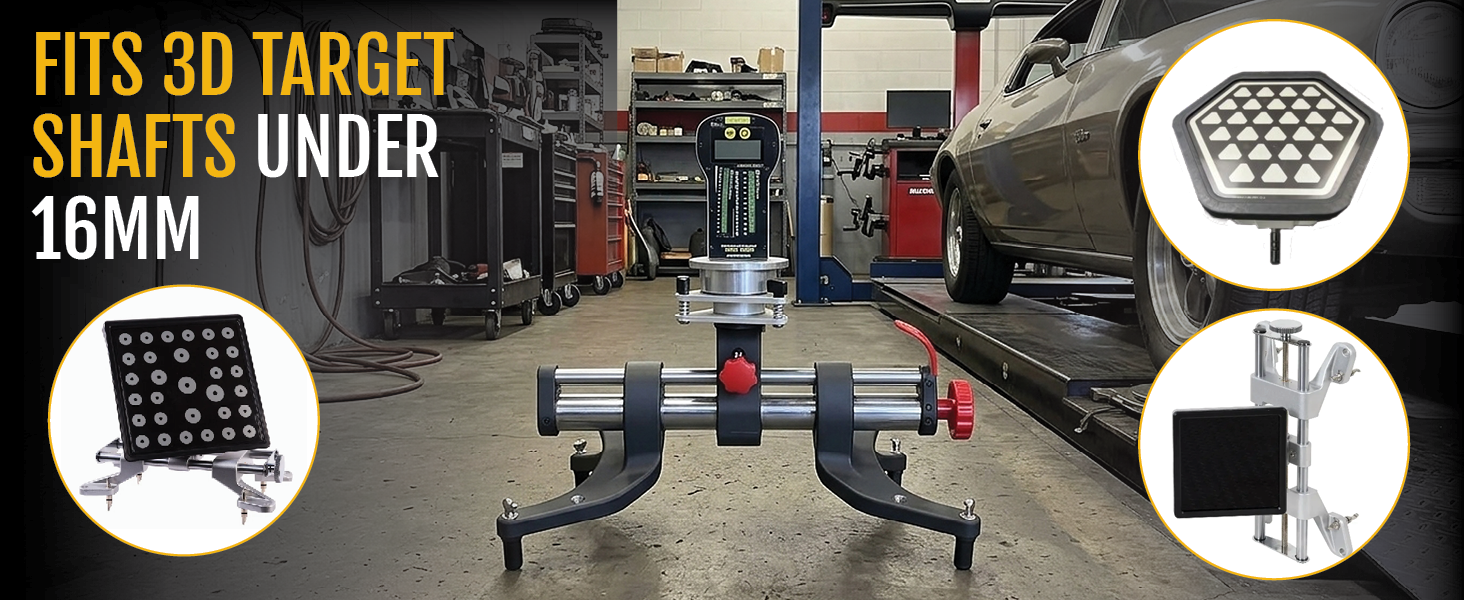

A handle holds the clamp on the rim while you tighten. The thumb turn adapter socket locks the plate by hand and holds any plug up to 16 mm. Matte black steel alloy housing. Same 11 to 25 inch rim range and gauge fit. Hub clearance 78 mm on the 88 mm pins, 120 mm on the 137 mm set.

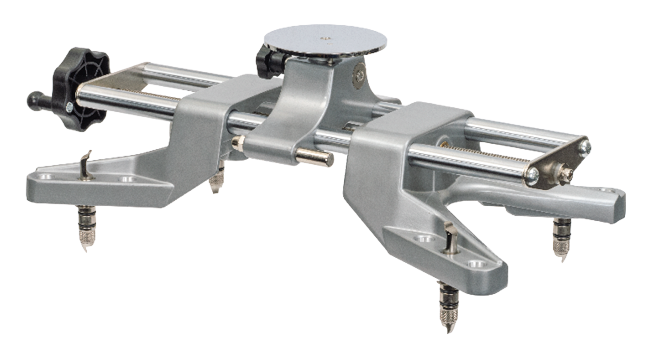

ASWG001ASWG001 Essentials Clamp
The same rim pins, the same 11 to 25 inch range, and the same magnetic gauge fit, in a satin metal housing with a pin located adapter plate and no handle. Hub clearance 93 mm on the 88 mm pins, 135 mm on the 137 mm set. The clamp for the garage that aligns a few times a year.
Tools you can rely on. Support you can reach.
Trusted by DIY Mechanics
Used by home garage enthusiasts, classic car builders, and hobby mechanics worldwide.
Tested in Real Garages
Reviewed by automotive creators and DIY alignment builders across YouTube and beyond.
Backed by U.S. Support
Fast help, product guidance, and friendly support from our U.S.-based team.
1-Year Replacement Support
If any manufacturing defects occur, our team will ship a replacement promptly.
WHY THE CLAMP MATTERS

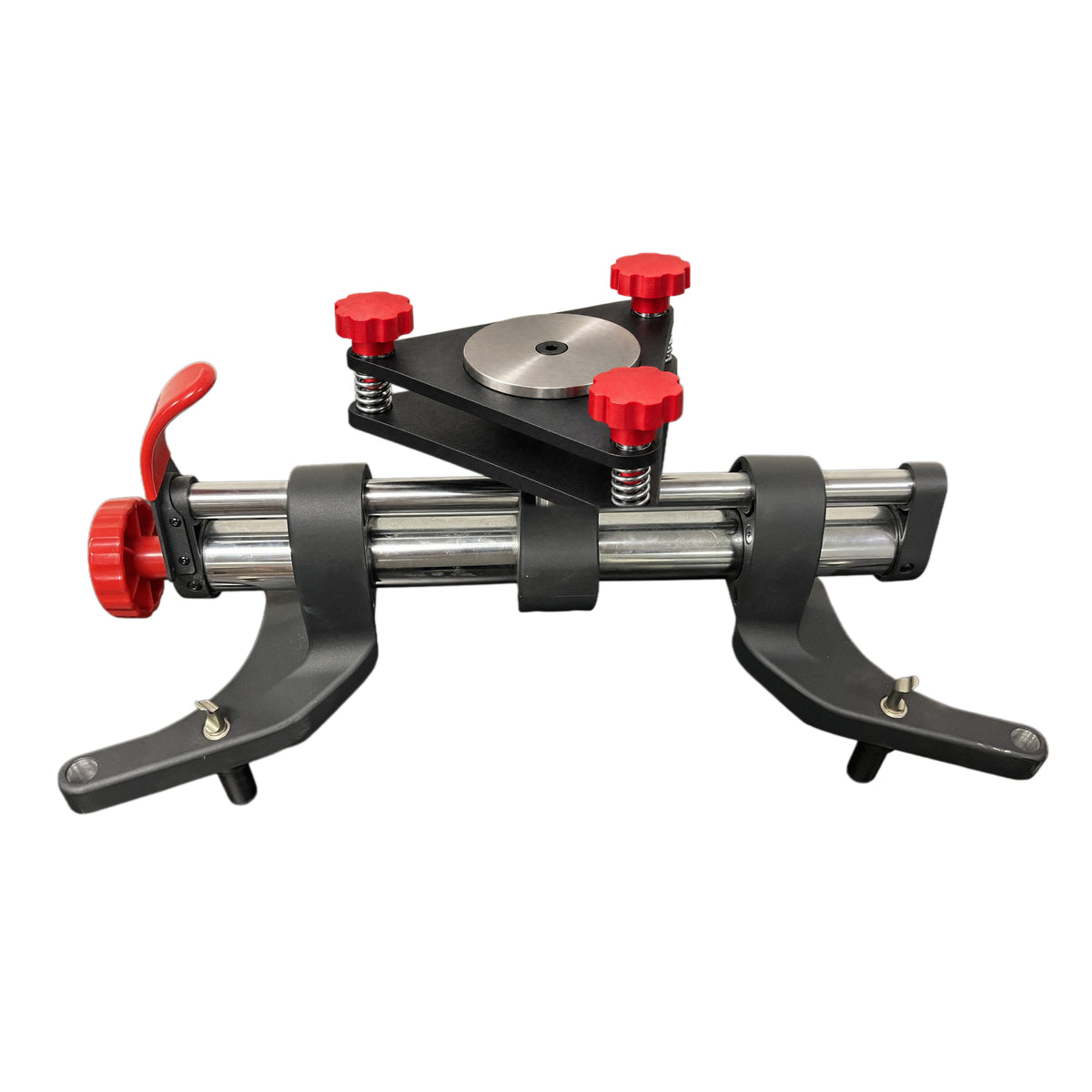

The ONYX PRO clamp is the mounting point between a wheel alignment gauge and the wheel, so how it seats decides every reading taken from it. Four locator pins seat on the rim edge, and the handle holds the clamp against the wheel while your other hand tightens the knob. The adapter plate's plug drops into the 16 mm bore and a thumb screw presses it against the wall of the bore, so the plate stays put through a caster sweep and locks and releases by hand. The chrome plated steel face takes any AutoSolo magnetic camber caster gauge. The clamp fits 11 to 25 inch rims, with 78 mm of hub clearance on the 88 mm pins in the box and 120 mm on the ASWG001-EX4 dually set. Steel alloy under a matte black finish shows less of the grime a satin tool wears. With the Runout Compensation adapter, a tilt plate on three jack screws lets you set the measuring face true to the wheel's axis before you read camber or caster.
